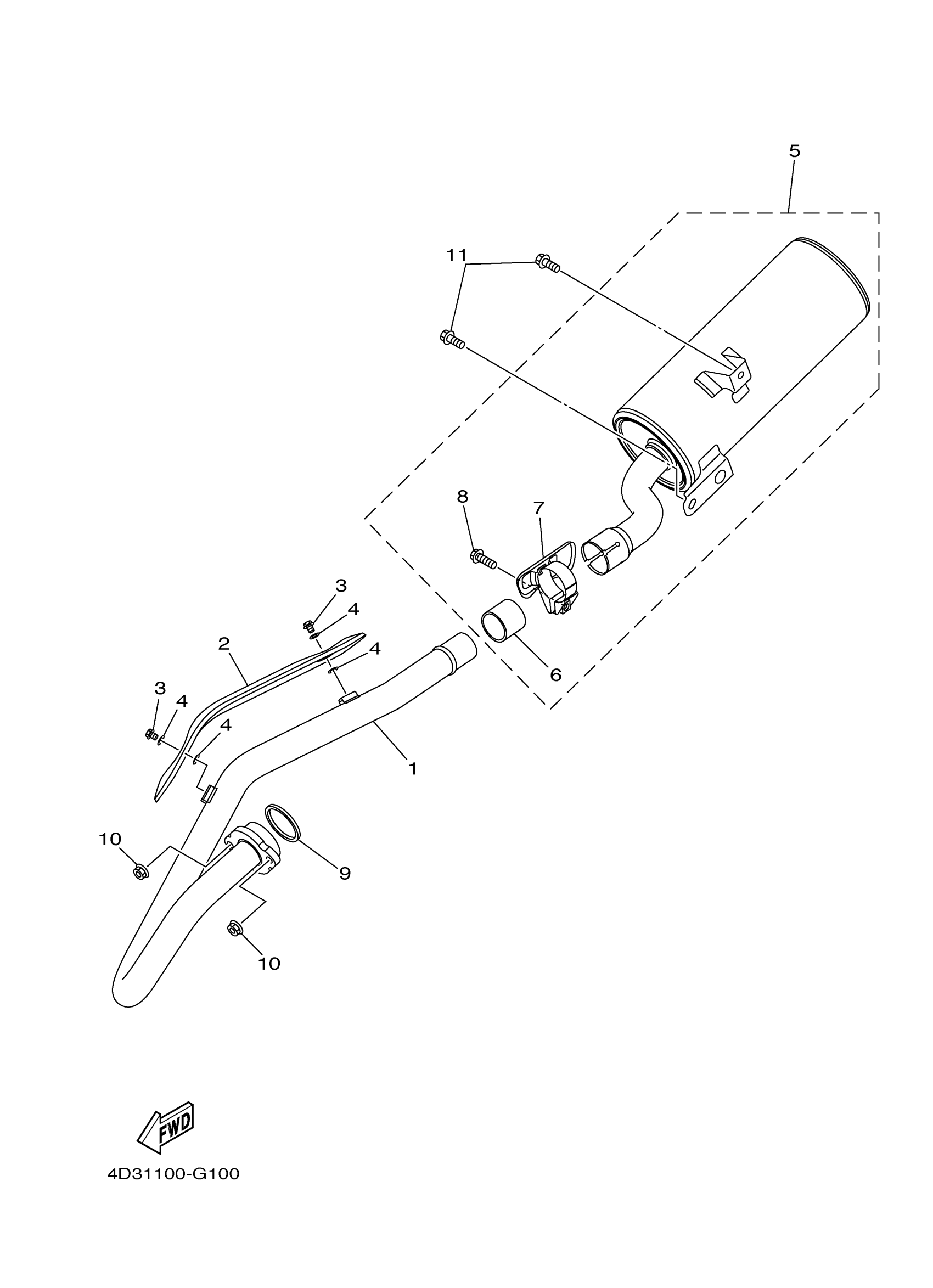

Yamaha YFM25RSPX (RAPTOR 250 SPECIAL EDITION) 4D35 2008 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

4D3-14611-00-00

$191.08

2

PROTECTOR, EXHAUST PIPE

4D3-14628-00-00

Unavailable

3

SCREW, BIND(2TV)

98980-06008-00

$0.58

4

WASHER, PLATE

90201-05017-00

Unavailable

5

MUFFLER ASSY 1

4D3-14710-10-00

Unavailable

6

GASKET, MUFFLER

3YF-14714-00-00

$27.78

7

PROTECTOR, MUFFLER 1

4D3-14718-00-00

Unavailable

8

BOLT, FLANGE(4GY)

95024-08025-00

$6.22

9

GASKET, EXHAUST PIPE

3GD-14613-00-00

$11.56

10

NUT,FLANGE(J10)

95702-08500-00

$0.79

11

BOLT, FLANGE(JN5)

95817-08016-00

$3.85
