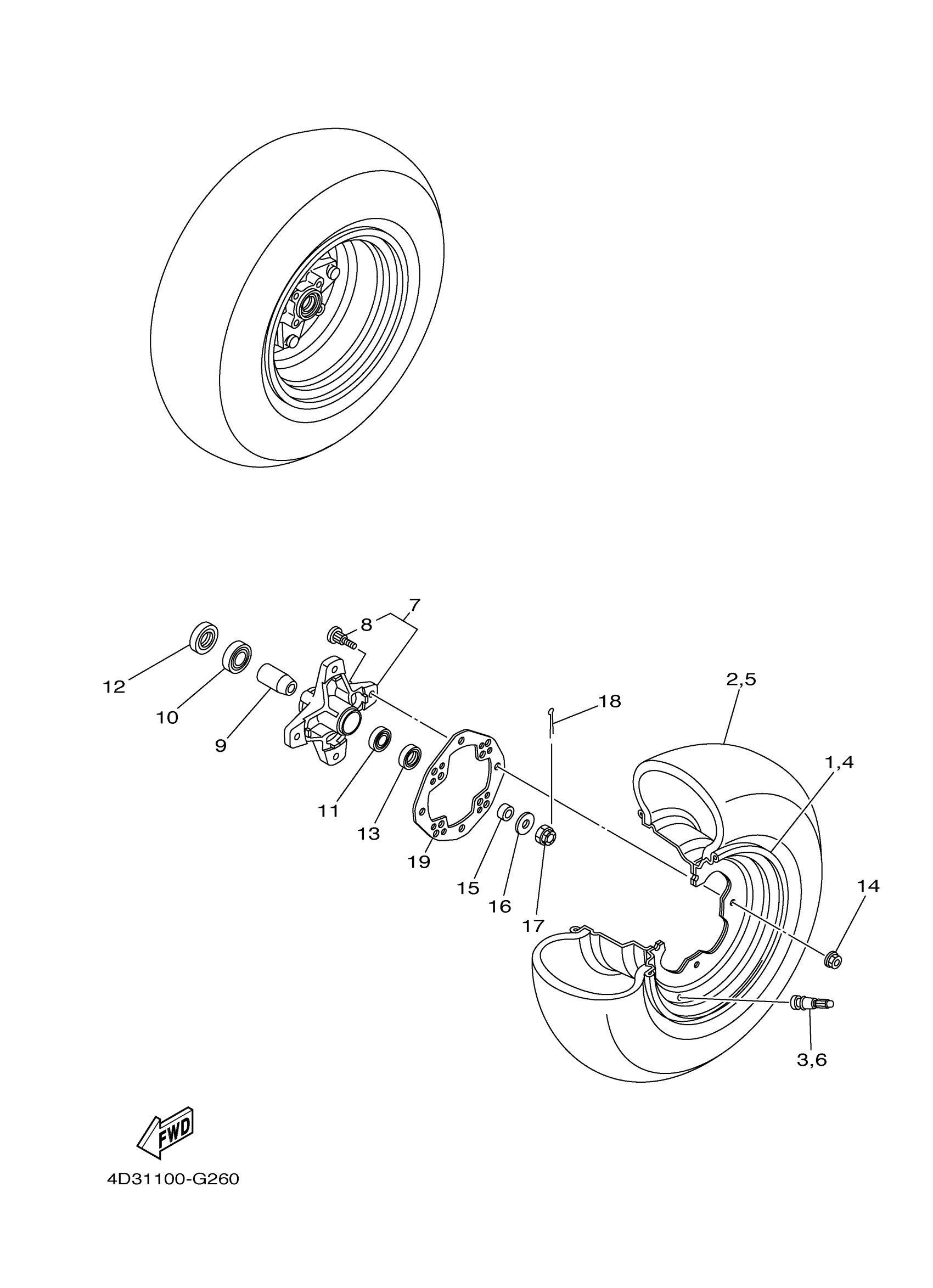

Yamaha YFM25RSPA (RAPTOR 250 SPECIAL EDITION) 1BTC 2011 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL COMP.

1S3-25180-00-YX

$285.30

2

TIRE (AT20X7-10 DI-K102 T/L N)

94107-10033-00

$128.45

3

VALVE, RIM(2GH)

93900-00030-00

$13.50

4

WHEEL COMP.

1S3-25180-00-YX

$285.30

5

TIRE (AT20X7-10 DI-K102 T/L N)

94107-10033-00

$128.45

6

VALVE, RIM(2GH)

93900-00030-00

$13.50

7

HUB, FRONT

3GD-25111-20-00

Unavailable

8

BOLT, SERRATION

90114-10006-00

$4.81

9

SPACER, BEARING

1UY-25117-00-00

$21.99

10

BEARING

93306-00446-00

$34.51

11

. BEARING

93306-20231-00

$18.41

12

OIL SEAL(1UY)

93105-26026-00

$9.99

13

OIL SEAL (7H5)

93102-22216-00

$9.25

14

NUT, FLANGE(3BM)

95704-10500-00

$1.68

15

COLLAR(1UY)

90387-150R1-00

$5.86

16

WASHER PLATE 248181370000

90201-14220-00

Unavailable

17

NUT, CASTLE

90171-14002-00

Unavailable

18

PIN, COTTER

91401-30025-00

Unavailable

19

COVER, PLATE

1S3-25127-01-00

$6.68
