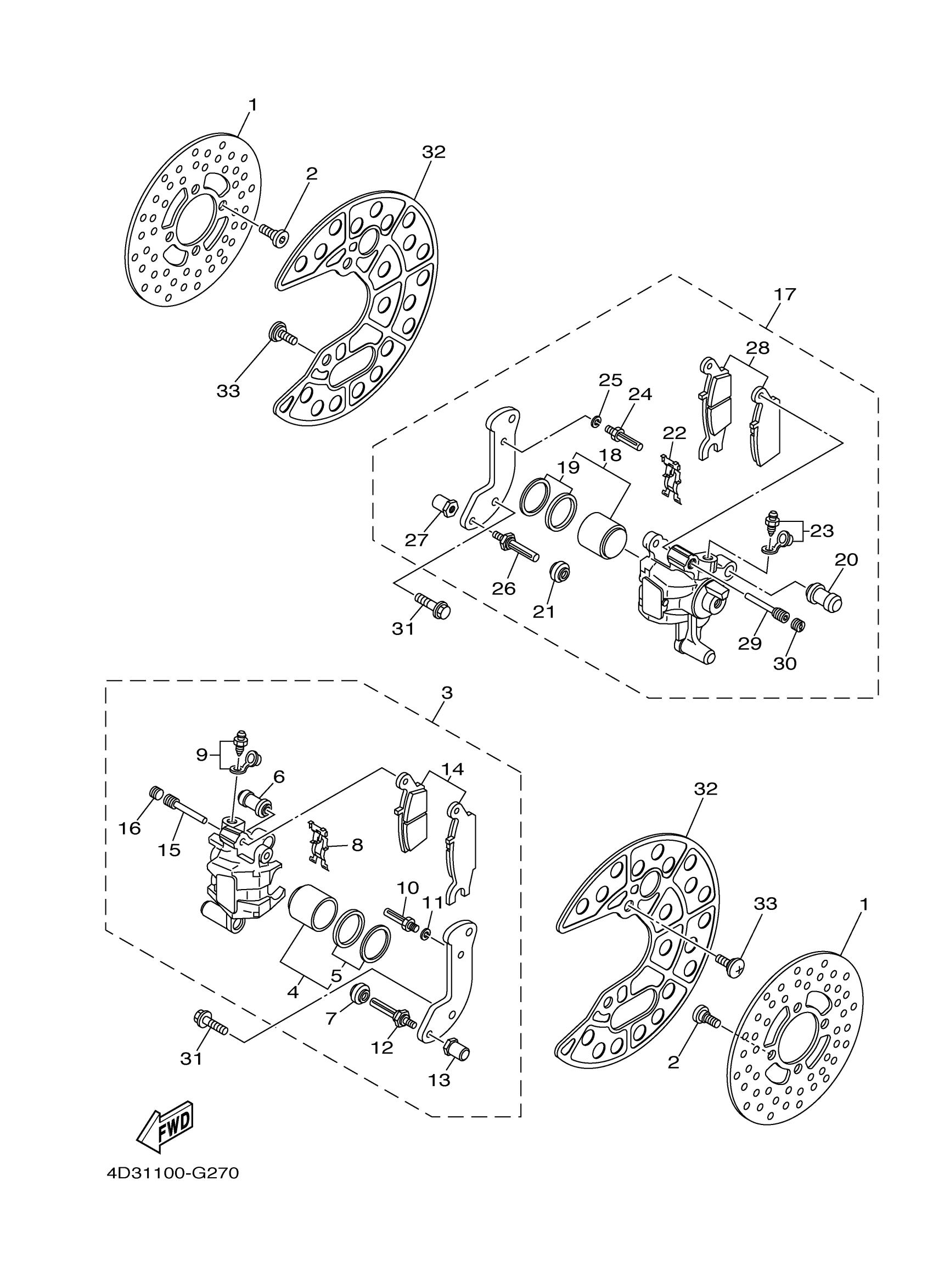

Yamaha YFM25RSPA (RAPTOR 250 SPECIAL EDITION) 1BTC 2011 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

3GD-2582T-10-00

$192.02

2

BOLT

90109-08087-00

$2.47

3

CALIPER ASSY (LEFT)

4D3-2580T-01-00

Unavailable

4

PISTON ASSY, CALIPER

3B4-W0057-00-00

$66.68

5

CALIPER SEAL KIT

3B4-W0047-00-00

$11.69

6

BOOT 2

1UY-25937-51-00

$11.48

7

BOOT, CALIPER

3JD-25917-00-00

$7.03

8

SUPPORT, PAD

5DH-25919-00-00

$16.55

9

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

10

BOLT

1UY-25926-51-00

$3.11

11

WASHER, SPRING

1UY-25938-51-00

Unavailable

12

BOLT

3JD-25926-00-00

$5.99

13

NUT

3JD-25961-00-00

$6.46

14

BRAKE PAD KIT

4D3-W0045-00-00

$46.26

15

PIN, PAD

5DH-25933-00-00

$16.24

16

BOLT

8CR-25926-00-00

Unavailable

17

CALIPER ASSY (RIGHT)

4D3-2580U-01-00

Unavailable

18

PISTON ASSY, CALIPER

3B4-W0057-00-00

$66.68

19

CALIPER SEAL KIT

3B4-W0047-00-00

$11.69

20

BOOT 2

1UY-25937-51-00

$11.48

21

BOOT, CALIPER

3JD-25917-00-00

$7.03

22

SUPPORT, PAD

5DH-25919-00-00

$16.55

23

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

24

BOLT

1UY-25926-51-00

$3.11

25

WASHER, SPRING

1UY-25938-51-00

Unavailable

26

BOLT

3JD-25926-00-00

$5.99

27

NUT

3JD-25961-00-00

$6.46

28

BRAKE PAD KIT

4D3-W0045-10-00

Unavailable

29

PIN, PAD

5DH-25933-00-00

$16.24

30

BOLT

8CR-25926-00-00

Unavailable

31

BOLT, FLANGE

90105-08161-00

Unavailable

32

RING, WHEEL 1

4D3-2514A-00-00

Unavailable

33

SCREW

90149-06117-00

Unavailable
