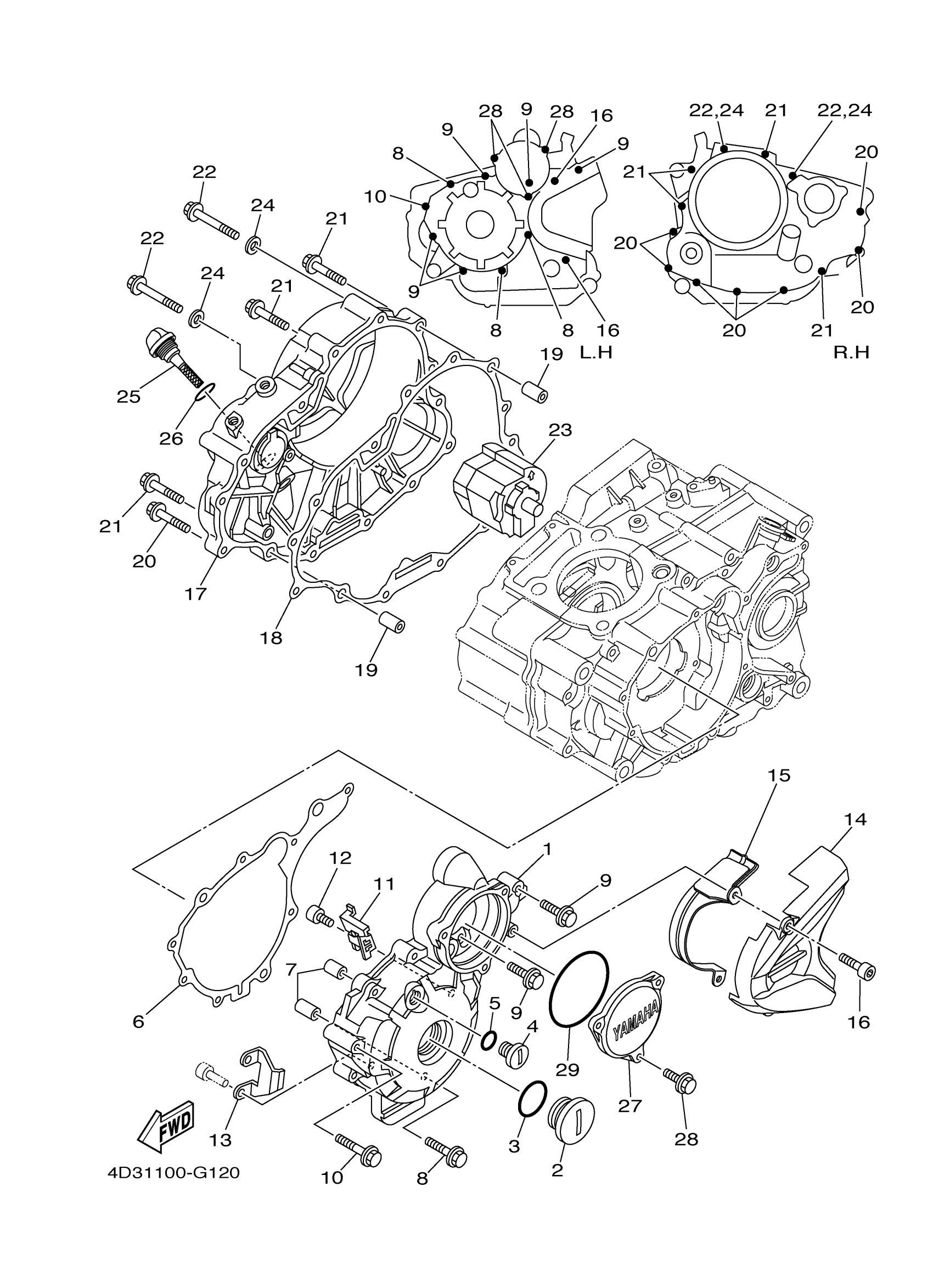

Yamaha YFM25RSPA (RAPTOR 250 SPECIAL EDITION) 1BTC 2011 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

4D3-15411-00-00

$221.99

2

PLUG, STRAIGHT SCREW

90340-32005-00

$29.99

3

O-RING (341)

93210-32172-00

$7.49

4

PLUG, STRAIGHT SCREW

90340-14014-00

$18.99

5

O-RING (2H9)

93210-14369-00

$7.49

6

GASKET, CRANKCASE COVER 1

4D3-15451-00-00

$15.49

7

PIN, DOWEL(3VD)

99530-10114-00

$2.55

8

BOLT, FLANGE

95022-06040-00

$3.45

9

BOLT, FLANGE

95022-06030-00

$3.72

10

BOLT, FLANGE

95022-06045-00

$4.29

11

CLAMP

90465-16011-00

$4.41

12

BOLT(47X)

91312-05012-00

$4.29

13

PLATE

5XT-15113-00-00

Unavailable

14

COVER, CHAIN CASE

4D3-15418-00-00

$36.99

15

PROTECTOR

4D3-15493-00-00

Unavailable

16

BOLT(3MA)

91312-06016-00

Unavailable

17

COVER, CRANKCASE 2

4D3-15421-00-00

Unavailable

18

GASKET, CRANKCASE COVER 2

4D3-15461-00-00

Unavailable

19

PIN, DOWEL(3VD)

99530-10114-00

$2.55

20

BOLT, FLANGE

95022-06025-00

Unavailable

21

BOLT, FLANGE

95022-06040-00

$3.45

22

BOLT, FLANGE

95022-06050-00

Unavailable

23

SPACER, DAMPER

4D3-15328-00-00

Unavailable

24

GASKET 256113960000

90430-06014-00

Unavailable

25

PLUG, OIL LEVEL

4D3-15362-00-00

Unavailable

26

O-RING (646)

93210-19123-00

Unavailable

27

COVER, GENERATOR

4D3-15415-00-00

Unavailable

28

BOLT, FLANGE

95022-06016-00

Unavailable

29

. O-RING

93210-74M68-00

Unavailable
