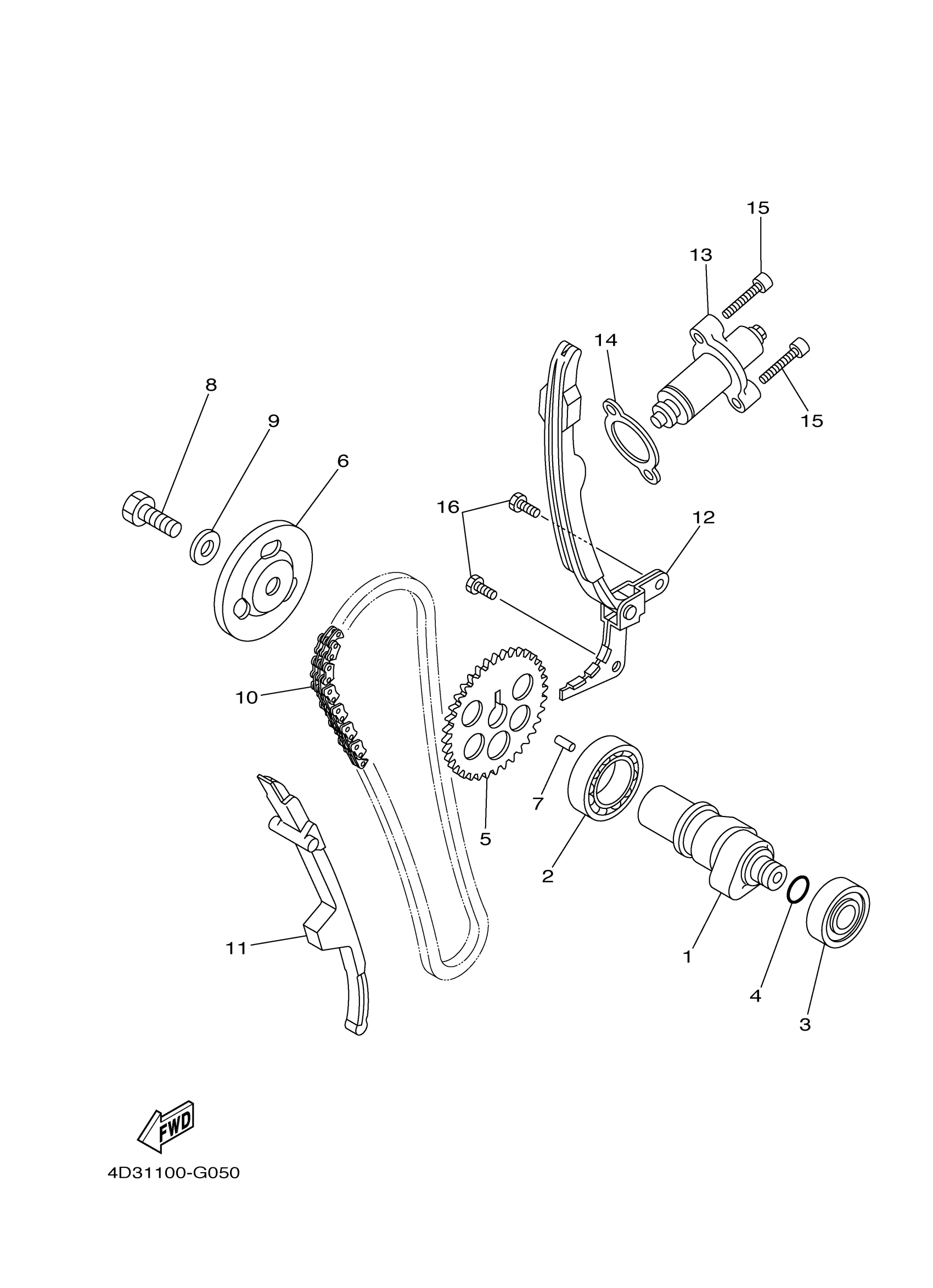

Yamaha YFM25RSPA (RAPTOR 250 SPECIAL EDITION) 1BTC 2011 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

1S4-12171-00-00

$181.29

2

BEARING(1FF)

93306-00519-00

$29.98

3

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$20.23

4

O-RING (4G0)

93210-11453-00

$5.47

5

SPROCKET, CAM CHAIN

5XT-12176-00-00

$42.94

6

PLATE, BREATHER 2

4KB-11145-00-00

$9.51

7

PIN,DOWEL (603)

93604-10011-00

$4.89

8

BOLT

90101-10016-00

$3.53

9

WASHER, PLATE (3L6)

90201-10774-00

$5.81

10

CHAIN

94582-19104-00

$13.70

11

GUIDE, STOPPER 1

5BP-12231-01-00

$51.86

12

GUIDE, STOPPER 2

5XT-12241-02-00

$33.98

13

TENSIONER ASSY, CAM CHAIN

5XT-12210-00-00

$67.42

14

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

15

BOLT,SOCKET

91317-06025-00

$1.91

16

BOLT

97012-06014-00

Unavailable
