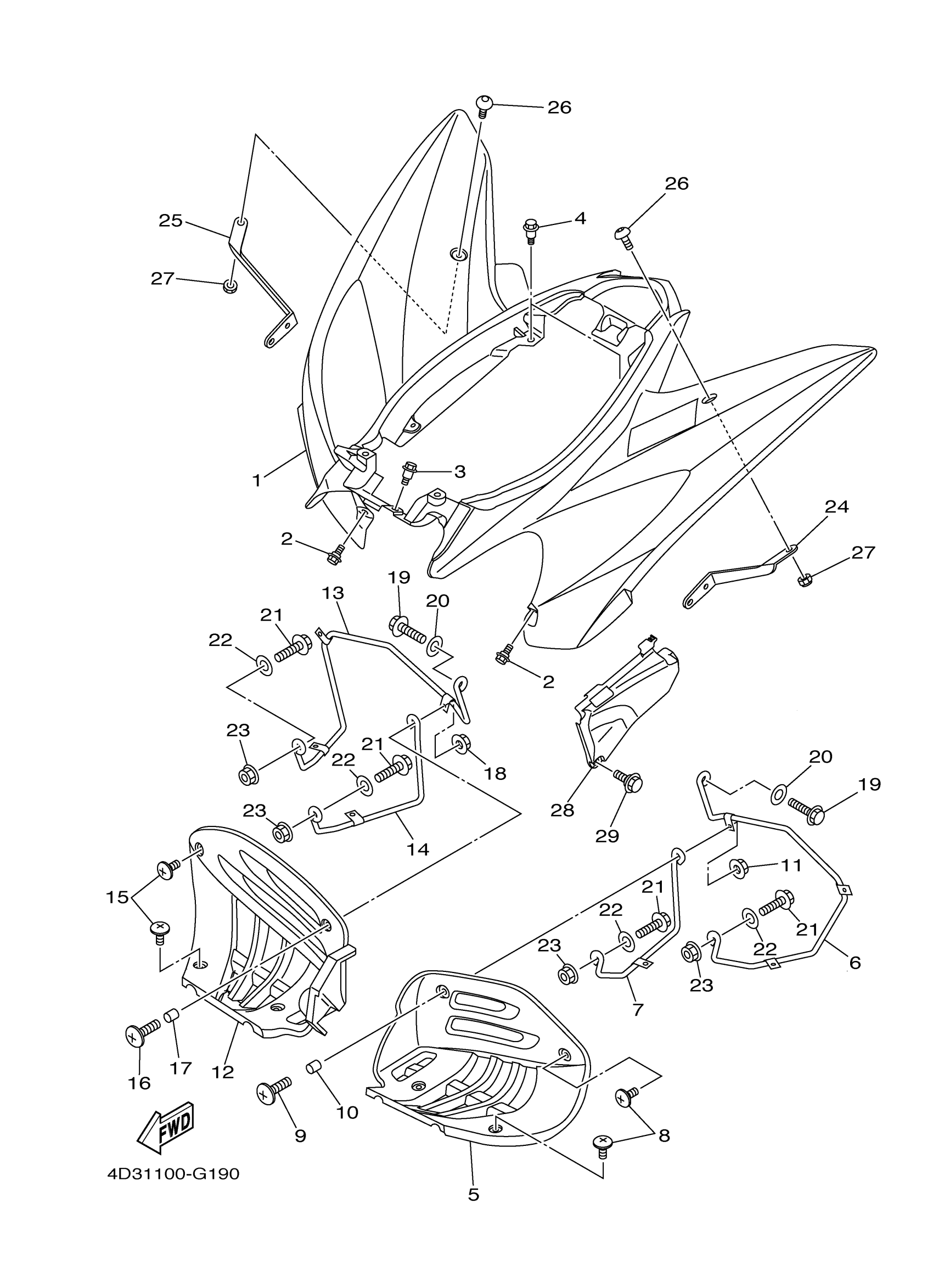

Yamaha YFM25RSP2X (RAPTOR 250 SPECIAL EDITION II) 4D39 2008 REAR FENDER Diagram

#

Description
Price

1

REAR FENDER COMP.

4D3-W2161-30-00

Unavailable

2

BOLT

90109-06172-00

$2.53

3

BOLT

90109-06241-00

$5.47

4

BOLT

90109-06241-00

$5.47

5

FLAP

4D3-21621-00-00

Unavailable

6

STAY 1

4D3-2164F-00-00

Unavailable

7

STAY 3

4D3-2164H-00-00

$19.92

8

SCREW, BINDING (10V)

90154-05013-00

$4.64

9

SCREW, BINDING(3XV)

90154-06061-00

$6.22

10

COLLAR (420)

90387-06241-00

$5.76

11

NUT, U FLANGE

95604-06200-00

$2.19

12

FLAP

5LP-21691-00-00

$58.35

13

STAY 2

4D3-2164G-00-00

$51.02

14

STAY 4

5YT-2164J-10-00

Unavailable

15

SCREW, BINDING (10V)

90154-05013-00

$4.64

16

SCREW, BINDING(3XV)

90154-06061-00

$6.22

17

COLLAR (420)

90387-06241-00

$5.76

18

NUT, U FLANGE

95604-06200-00

$2.19

19

BOLT, FLANGE

95814-08016-00

Unavailable

20

WASHER, PLATE

90201-08048-00

Unavailable

21

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

22

WASHER, PLATE

90201-08048-00

Unavailable

23

NUT, SELF-LOCKING

95602-08200-00

Unavailable

24

STAY, FENDER 1

4D3-21613-00-00

Unavailable

25

STAY, FENDER 2

4D3-21614-00-00

Unavailable

26

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

27

NUT, U FLANGE

95604-06200-00

$2.19

28

COVER, REAR FENDER 1

4D3-2163A-00-00

Unavailable

29

BOLT

90109-06172-00

$2.53
