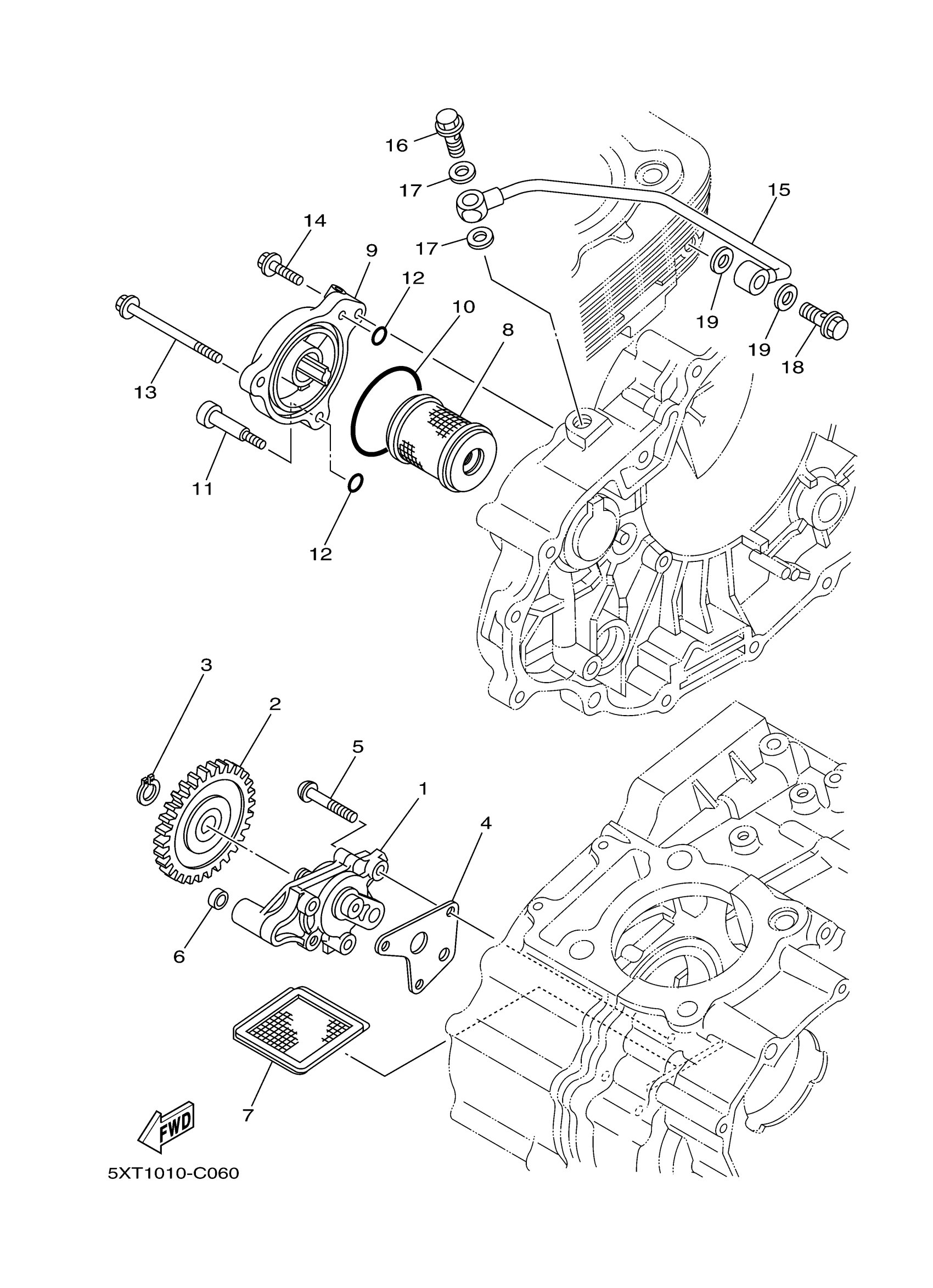

Yamaha YFM25RSP2X (RAPTOR 250 SPECIAL EDITION II) 4D39 2008 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

4D3-13300-00-00

$159.99

2

GEAR, PUMP DRIVEN 2

4D3-13326-00-00

$30.99

3

CIRCLIP(24H)

99009-11400-00

$8.49

4

GASKET, PUMP COVER

4D3-13329-00-00

$6.99

5

SCREW

90149-06122-00

$8.49

6

GASKET (3Y1)

90430-06156-00

$4.29

7

STRAINER, OIL

22F-13411-01-00

$29.99

8

ELEMENT ASSY, OIL CLEANER

5D3-13440-09-00

$12.99

9

COVER, OIL ELEMENT

4D3-13447-00-00

Unavailable

10

O-RING (341)

93210-54175-00

$13.49

11

BOLT

90109-06169-00

$5.60

12

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$6.99

13

BOLT

91312-06070-00

$4.19

14

BOLT,SOCKET HEAD

91314-06020-00

$1.49

15

PIPE, DELIVERY 1

5XT-13161-01-00

$66.99

16

BOLT, UNION (716)

90401-10061-00

Unavailable

17

GASKET (5R6)

90430-10171-00

Unavailable

18

BOLT, UNION

90401-08012-00

Unavailable

19

GASKET

90430-08119-00

Unavailable
