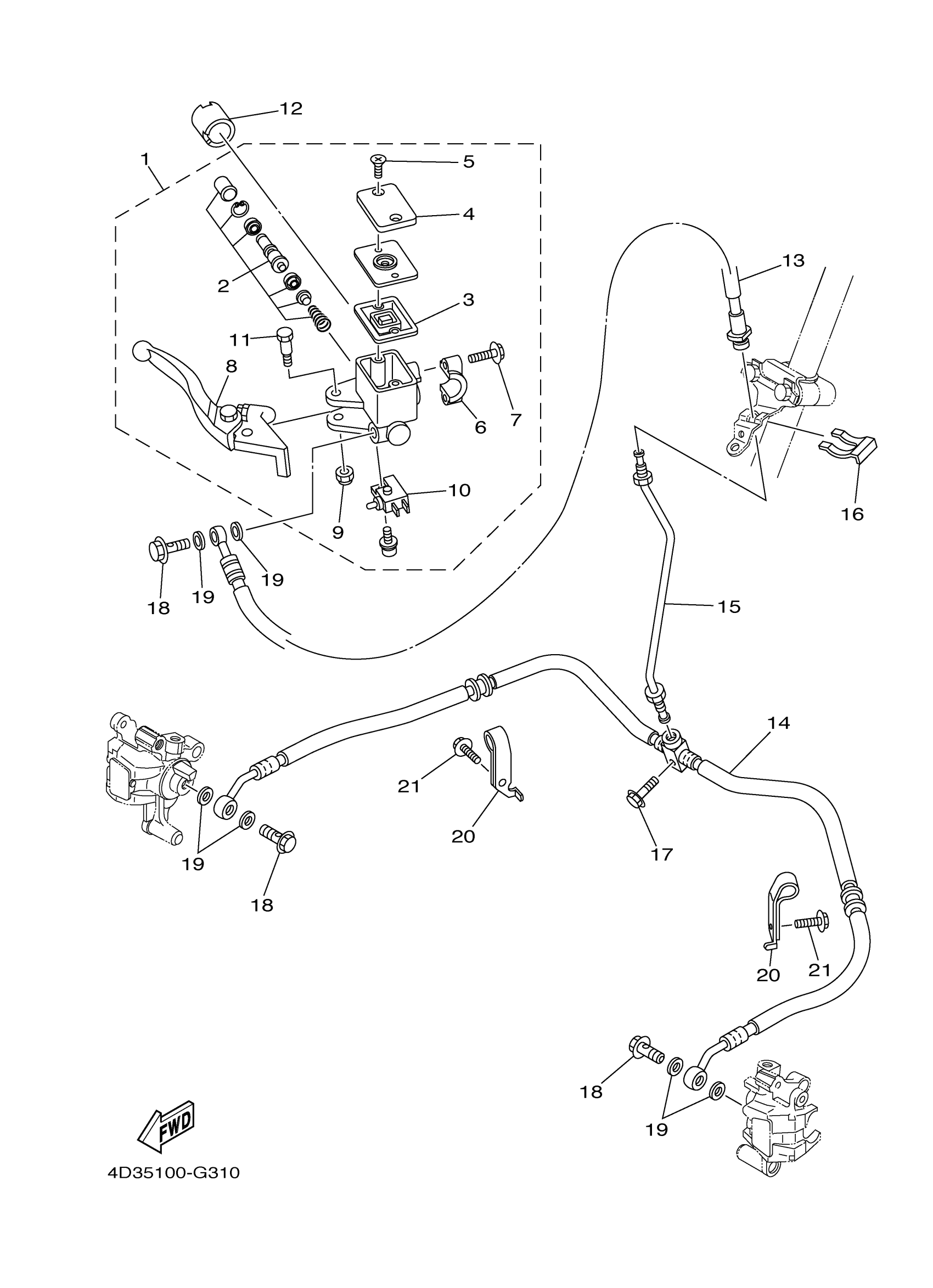

Yamaha YFM25RSP2X (RAPTOR 250 SPECIAL EDITION II) 4D39 2008 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

5D3-2583T-02-00

$280.99

2

CYLINDER KIT, MASTER

5HH-W0041-00-00

$41.99

3

DIAPHRAGM, RESERVOIR

4TT-25854-00-00

$18.49

4

CAP, RESERVOIR

5D3-25852-00-00

$19.99

5

SCREW

3D8-2589H-10-00

$7.99

6

BRACKET, MASTER CYLINDER

5LP-25867-00-00

Unavailable

7

BOLT, FITTING

5MV-25833-00-00

$6.99

8

LEVER 2

5D3-83922-01-00

$96.99

9

NUT, U(4NK)

95604-06100-00

$8.49

10

FRONT STOP SWITCH ASSY

5D3-83980-00-00

Unavailable

11

BOLT, LEVER

3B4-2589F-00-00

Unavailable

12

COLLAR

1UY-26259-00-00

$19.49

13

HOSE, BRAKE 1

4D3-25872-00-00

Unavailable

14

HOSE, BRAKE 2

4D3-25873-00-00

Unavailable

15

PIPE, BRAKE

4D3-25871-00-00

Unavailable

16

CIRCLIP

2GU-25866-00-00

Unavailable

17

BOLT, FLANGE

95822-06025-00

Unavailable

18

BOLT, UNION

90401-10015-00

Unavailable

19

WASHER, PLATE(481)

90201-10118-00

Unavailable

20

HOLDER, BRAKE HOSE

4D3-25886-00-00

Unavailable

21

BOLT, FLANGE

95817-06016-00

Unavailable
