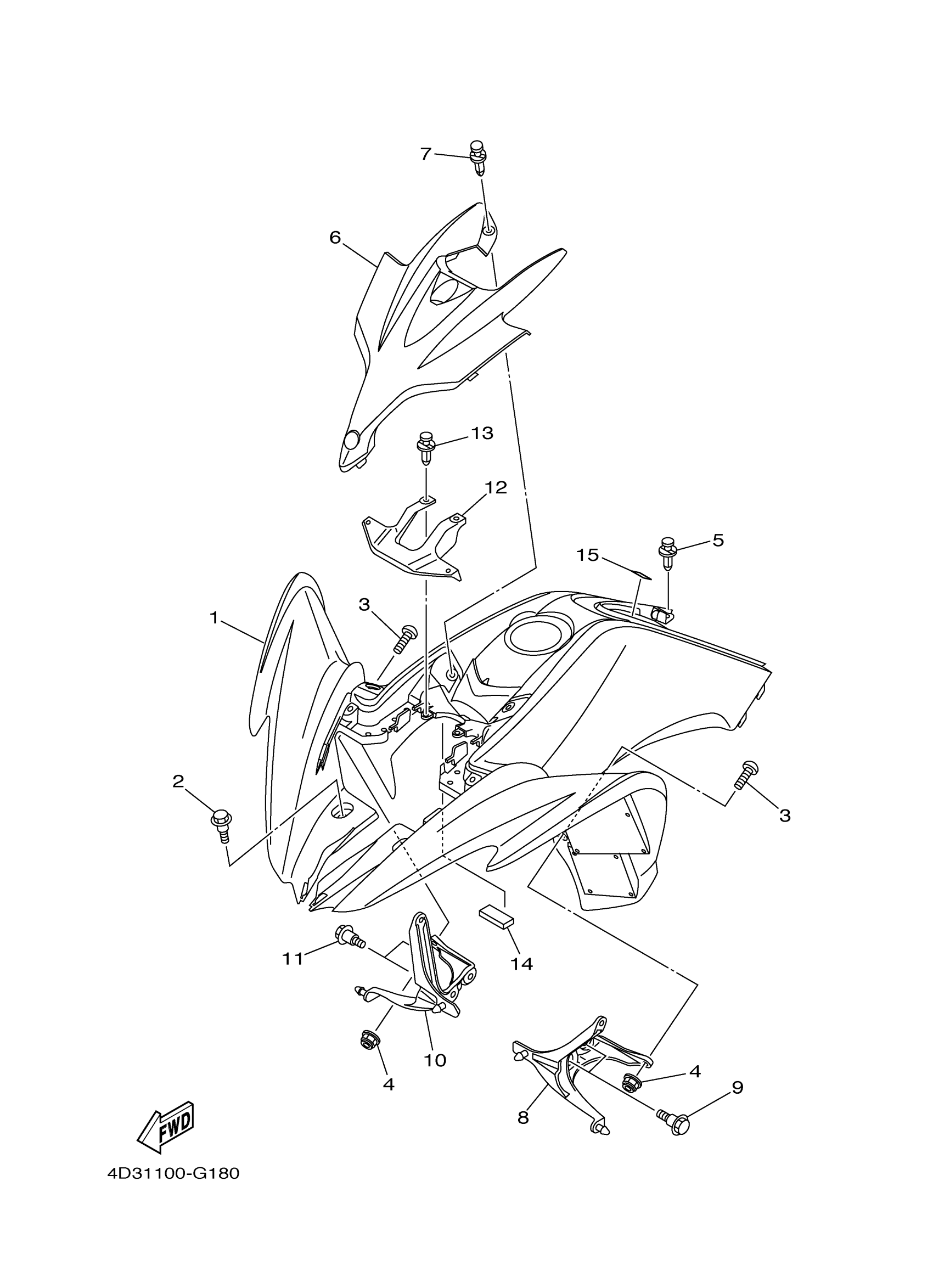

Yamaha YFM25RSP2X (RAPTOR 250 SPECIAL EDITION II) 4D39 2008 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

4D3-W2151-31-00

Unavailable

2

BOLT

90109-06172-00

$7.49

3

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$5.60

4

NUT, U FLANGE

95604-06200-00

$8.49

5

RIVET

90269-07010-00

$4.35

6

PANEL, FRONT

4D3-23391-20-00

Unavailable

7

RIVET

90269-07010-00

$4.35

8

STAY, FENDER 1

4D3-21513-00-00

$41.99

9

BOLT

90109-06214-00

$7.49

10

STAY, FENDER 2

4D3-21514-00-00

$41.99

11

BOLT

90109-06214-00

$7.49

12

PLATE 1

4D3-21523-00-00

$30.99

13

RIVET

90269-07010-00

$4.35

14

DAMPER

8ET-21747-00-00

$2.34

15

PROTECTOR

3MA-27491-00-00

$8.99
