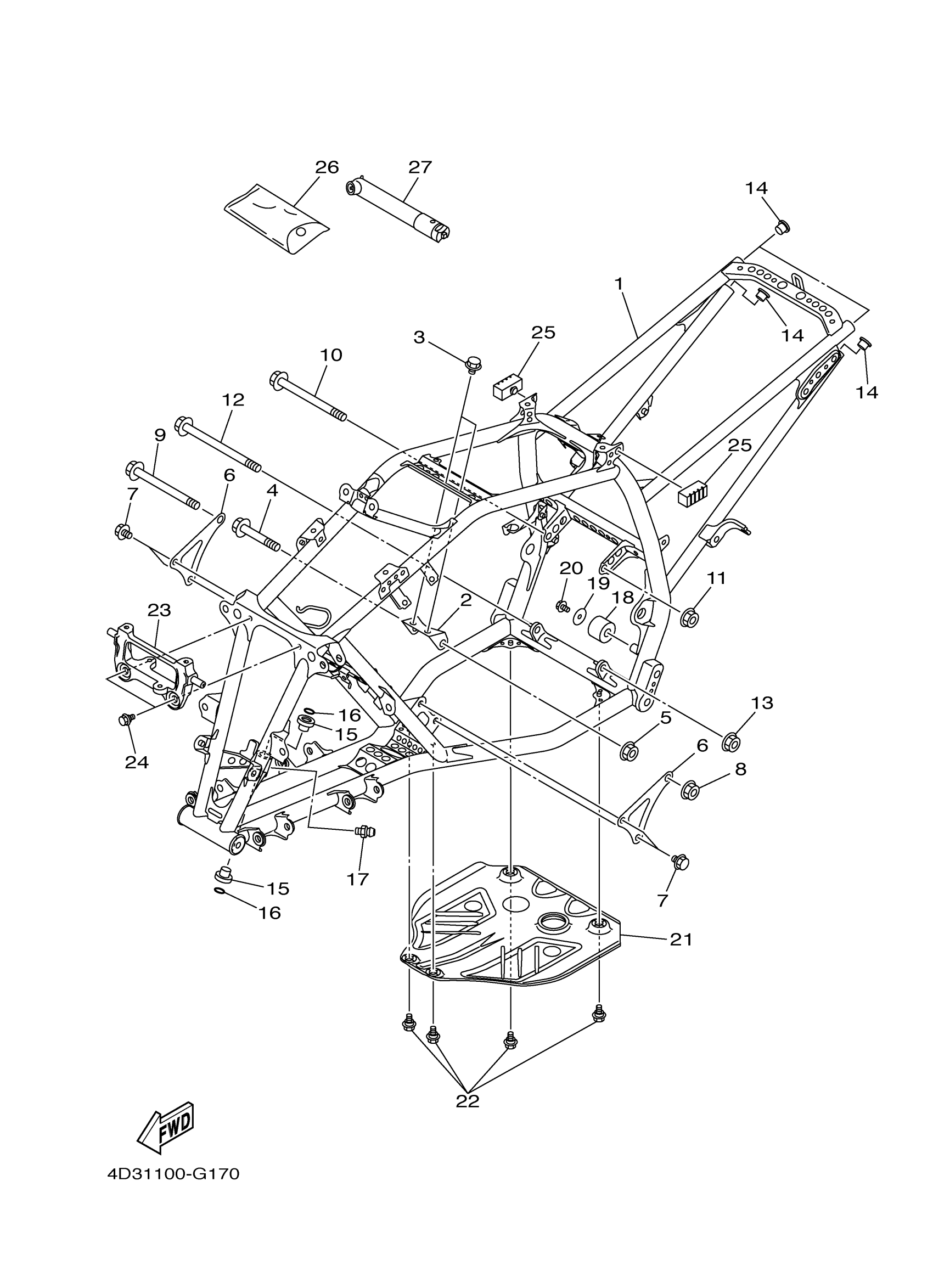

Yamaha YFM25RSP2X (RAPTOR 250 SPECIAL EDITION II) 4D39 2008 FRAME Diagram

#

Description
Price

1

FRAME COMP.

4D3-21110-10-33

Unavailable

2

STAY, ENGINE 2

4D3-21315-00-00

$22.99

3

BOLT, FLANGE

95817-08014-00

$5.60

4

BOLT, FLANGE

90105-10221-00

$5.60

5

NUT, S/L FLANGE

95602-10200-00

$4.82

6

STAY, ENGINE 3

4D3-21316-00-00

$16.49

7

BOLT, FLANGE

95817-08014-00

$5.60

8

BOLT, FLANGE

90105-10220-00

$10.49

9

NUT, S/L FLANGE

95602-10200-00

$4.82

10

BOLT, FLANGE

90105-10219-00

$7.49

11

NUT, S/L FLANGE

95602-10200-00

$4.82

12

BOLT, FLANGE

90105-10214-00

$10.49

13

NUT, S/L FLANGE

95602-10200-00

$4.82

14

PLUG(55K)

90338-16148-00

$11.49

15

BUSH, SOLID (J22)

90381-15040-00

$29.99

16

O-RING (22U)

93210-15566-00

Unavailable

17

NIPPLE, GREASE

93700-06M03-00

Unavailable

18

TENSIONER

4D3-22178-00-00

Unavailable

19

WASHER, PLATE

90201-08054-00

Unavailable

20

BOLT, FLANGE

95817-08012-00

Unavailable

21

PROTECTOR, ENGINE

4D3-21471-00-00

Unavailable

22

BOLT

90109-06172-00

Unavailable

23

STAY 2

4D3-2137G-00-00

Unavailable

24

BOLT

90109-06172-00

Unavailable

25

PAD, SEAT

3C3-24741-00-00

Unavailable

26

TOOL KIT

4D3-28100-01-00

Unavailable

27

GAUGE, AIR

1NV-2811A-01-00

Unavailable
