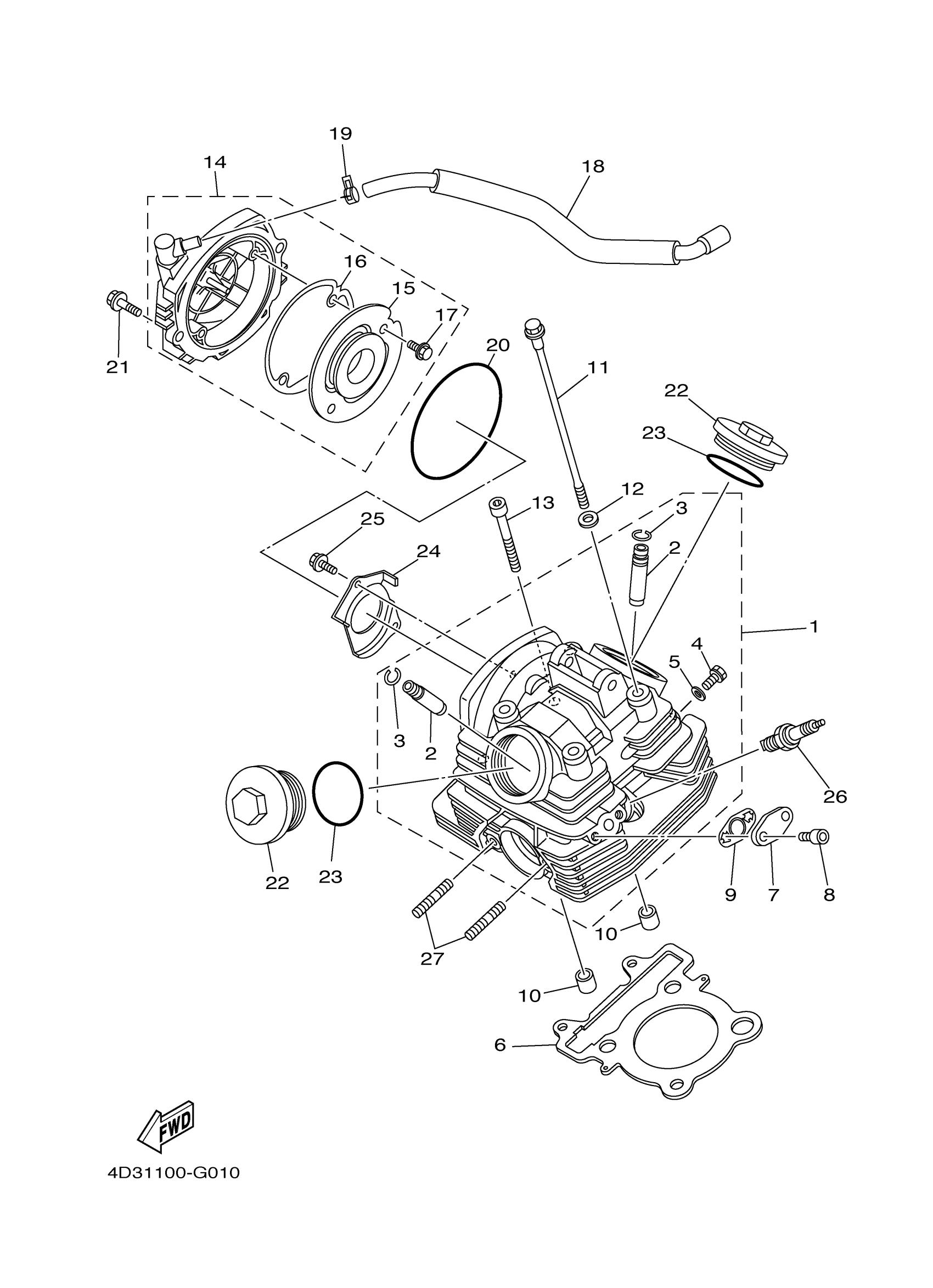

Yamaha YFM25RSP2X (RAPTOR 250 SPECIAL EDITION II) 4D39 2008 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

3C5-11102-00-00

Unavailable

2

GUIDE, INTAKE VALVE

5H0-11133-11-00

$63.99

3

CIRCLIP (4G0)

93440-10085-00

$8.49

4

SCREW, HEXAGON

90153-06002-00

$8.49

5

GASKET 256113960000

90430-06014-00

Unavailable

6

GASKET, CYLINDER HEAD 1

5XT-11181-00-00

$31.99

7

PLATE 2

4D3-1112F-00-00

$16.49

8

BOLT(3MA)

91312-06016-00

$5.60

9

GASKET

5XT-14815-00-00

$5.49

10

PIN, DOWEL

99530-14016-00

$3.80

11

BOLT, FLANGE

90105-08160-00

$7.49

12

WASHER, PLATE

90201-080L7-00

$4.82

13

BOLT, SOCKET

91317-08045-00

Unavailable

14

COVER, CYLINDER HEAD 1

4D3-11190-00-00

$94.99

15

PLATE, BREATHER

5XT-11165-00-00

Unavailable

16

GASKET, CYLINDER HEAD SIDE

4D3-11196-00-00

Unavailable

17

BOLT, FLANGE

95022-06010-00

Unavailable

18

PIPE, BREATHER 1

4D3-11166-00-00

Unavailable

19

CLIP (7K7)

90467-11044-00

Unavailable

20

O-RING (5H0)

93211-05471-00

Unavailable

21

BOLT, FLANGE

95022-06020-00

Unavailable

22

COVER, CYLINDER HEAD SIDE 2

4D3-11186-00-00

Unavailable

23

O-RING

93210-54001-00

Unavailable

24

PLATE

5XT-1111F-00-00

Unavailable

25

BOLT, FLANGE

95022-06012-00

Unavailable

26

DR7EA NGK SPLUG 10PK

DR7-EA000-00-00

Unavailable

27

BOLT, STUD

90116-08023-00

Unavailable
