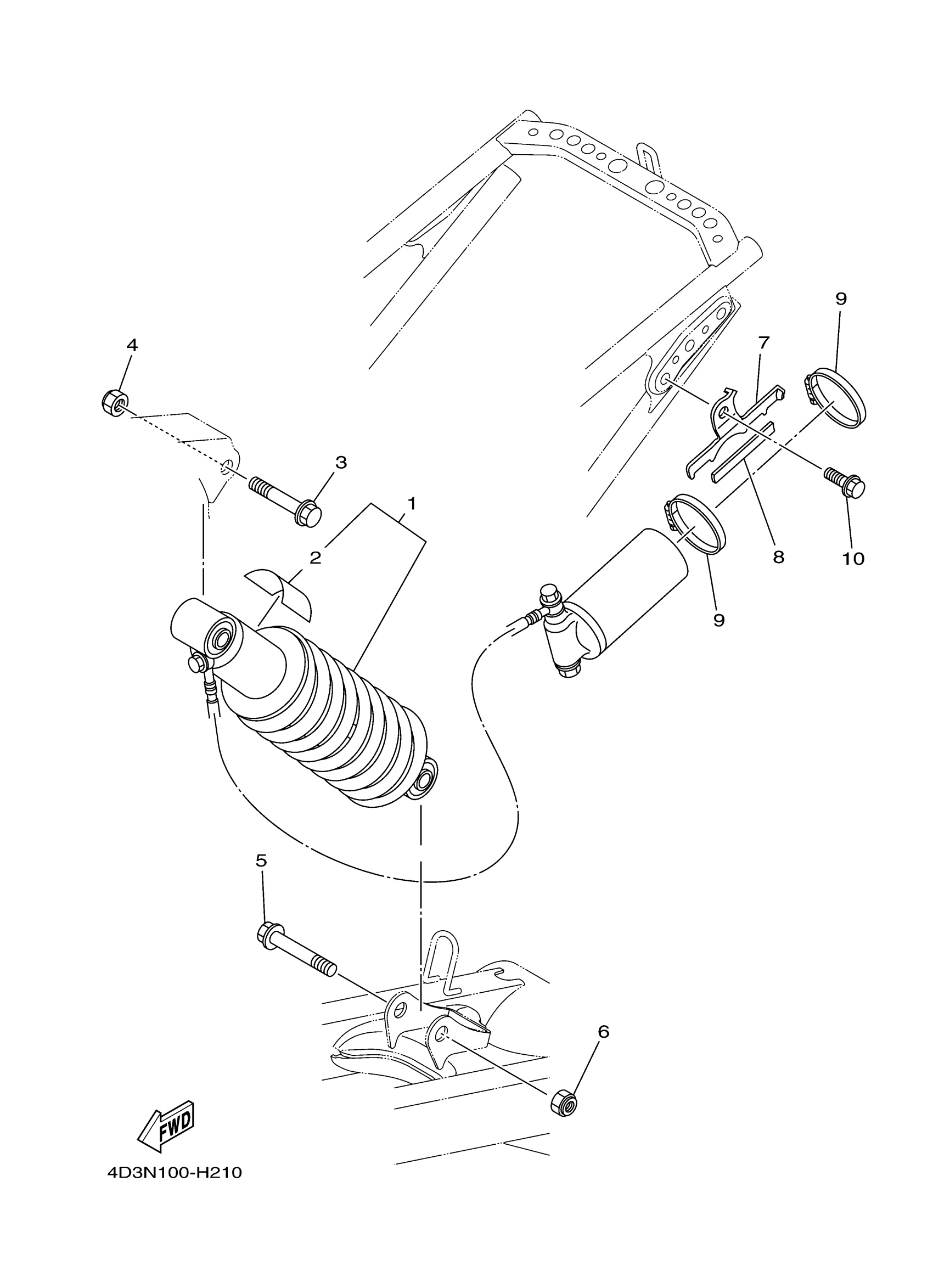

Yamaha YFM25RSEY (RAPTOR 250 SPECIAL EDITION) 4D3M 2009 REAR SUSPENSION Diagram

#

Description

Price

1

SHOCK ABSORBER ASSY, REAR

4D3-22210-41-35

Unavailable

2

LABEL, WARNING

4AA-22259-80-00

$11.85

3

BOLT, FLANGE

90105-12051-00

$7.77

4

NUT, U

95612-12100-00

$3.82

5

BOLT, FLANGE

90105-12051-00

$7.77

6

NUT, U

95612-12100-00

$3.82

7

HOLDER, SUB TANK

4D3-22262-00-00

$10.18

8

DAMPER, SUB TANK

4GY-22261-00-00

Unavailable

9

BAND (MADE IN CANADA)

90460-50079-00

Unavailable

10

BOLT, FLANGE

95817-08014-00

$1.81
