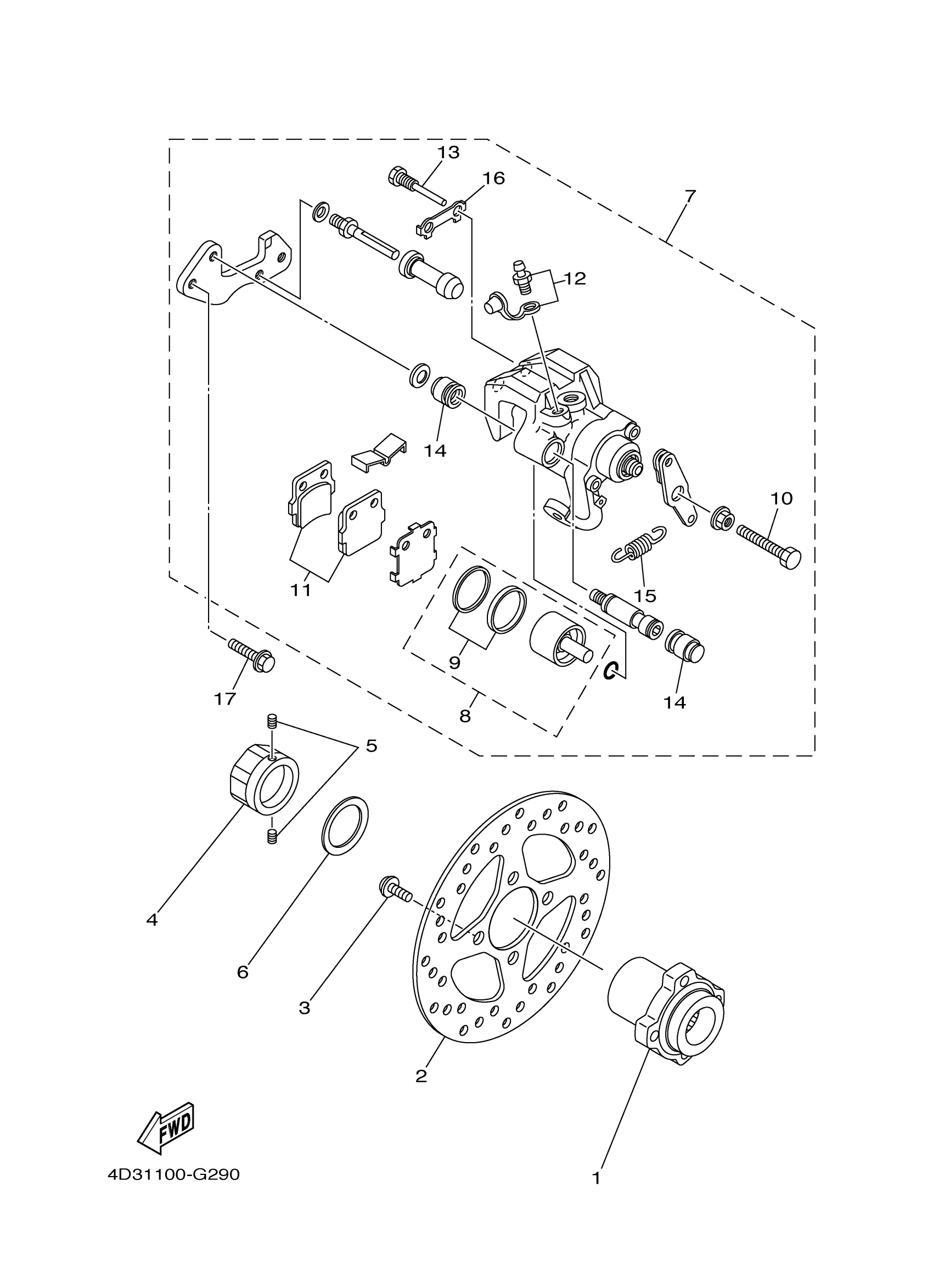

Yamaha YFM25RSEY (RAPTOR 250 SPECIAL EDITION) 4D3M 2009 REAR BRAKE CALIPER Diagram

BRACKET, DISC

5YT-25712-00-00

Unavailable

DISK, REAR BRAKE 2

4D3-2582W-00-00

$97.99

BOLT,HEX. SOCKET BUTTON

90111-08053-00

$8.49

NUT

90170-33010-00

$37.99

BOLT, SET (8K2)

90113-06039-00

$9.49

WASHER, CONICAL SPRING

90208-34001-00

$12.49

CALIPER ASSY, REAR 2

5YT-2580W-10-00

$456.99

PISTON ASSY, CALIPER

1UY-W0057-50-00

$111.99

CALIPER SEAL KIT

1UY-W0047-50-00

$17.49

ADJUSTBOLT

1UY-25972-51-00

$13.49

BRAKE PAD KIT 2

4D3-W0046-51-00

$45.99

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

PIN, PAD

1UY-25924-51-00

Unavailable

BOOT, CALIPER

1UY-25917-51-00

$6.99

SPRING, RETURN

5YT-25977-50-00

Unavailable

WASHER, PAD PIN

1UY-25933-51-00

Unavailable

BOLT, FLANGE

90105-08183-00

Unavailable
