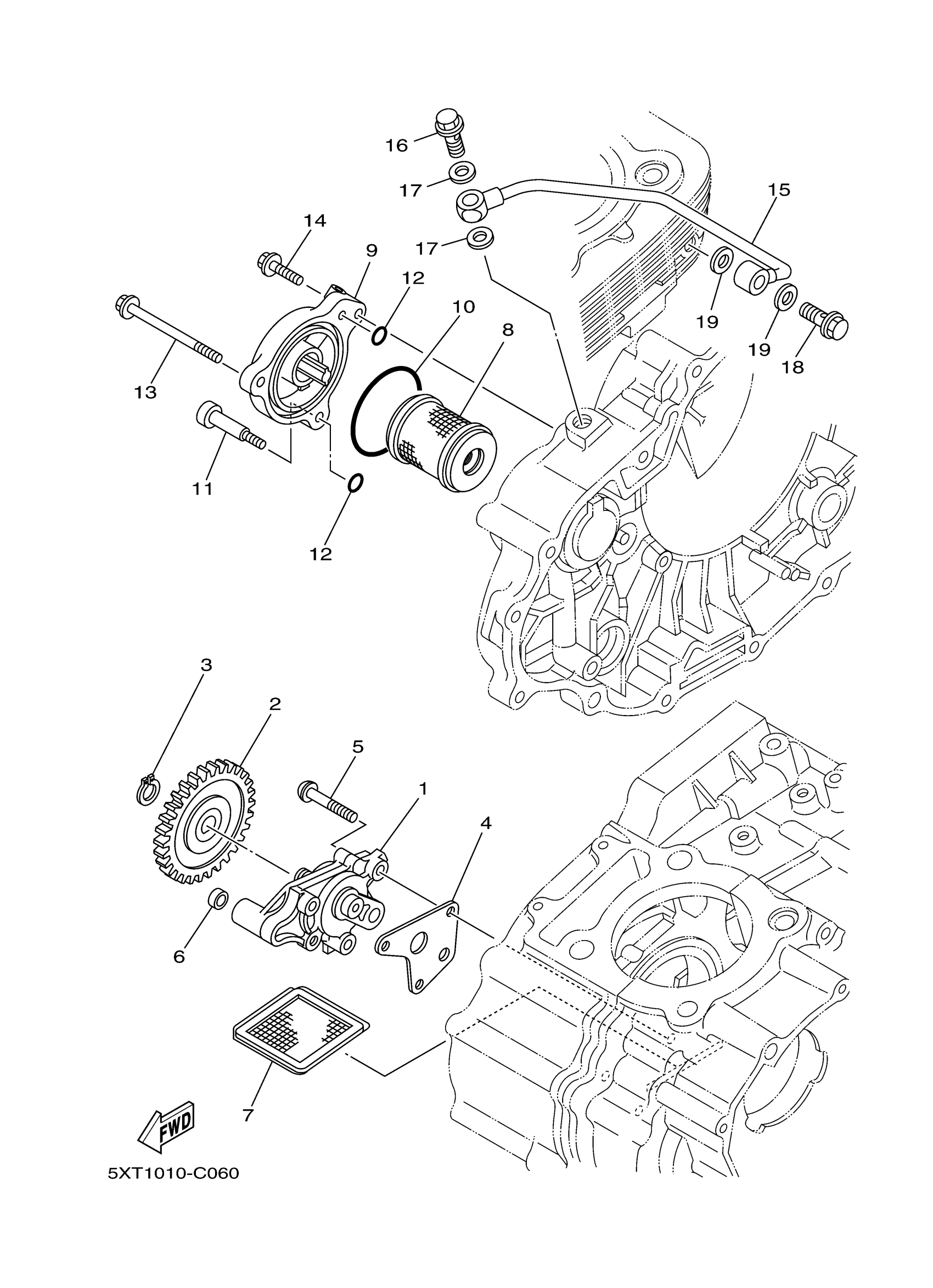

Yamaha YFM25RSEY (RAPTOR 250 SPECIAL EDITION) 4D3M 2009 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

4D3-13300-00-00

$150.98

2

GEAR, PUMP DRIVEN 2

4D3-13326-00-00

$26.41

3

CIRCLIP(24H)

99009-11400-00

$5.75

4

GASKET, PUMP COVER

4D3-13329-00-00

$6.33

5

SCREW

90149-06122-00

$5.03

6

GASKET (3Y1)

90430-06156-00

$3.16

7

STRAINER, OIL

22F-13411-01-00

$23.12

8

ELEMENT ASSY, OIL CLEANER

5D3-13440-09-00

$10.66

9

COVER, OIL ELEMENT

4D3-13447-00-00

Unavailable

10

O-RING (341)

93210-54175-00

$11.00

11

BOLT

90109-06169-00

$4.43

12

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$5.00

13

BOLT

91312-06070-00

$3.41

14

BOLT,SOCKET HEAD

91314-06020-00

$1.91

15

PIPE, DELIVERY 1

5XT-13161-01-00

$61.23

16

BOLT, UNION (716)

90401-10061-00

Unavailable

17

GASKET (5R6)

90430-10171-00

Unavailable

18

BOLT, UNION

90401-08012-00

Unavailable

19

GASKET

90430-08119-00

Unavailable
