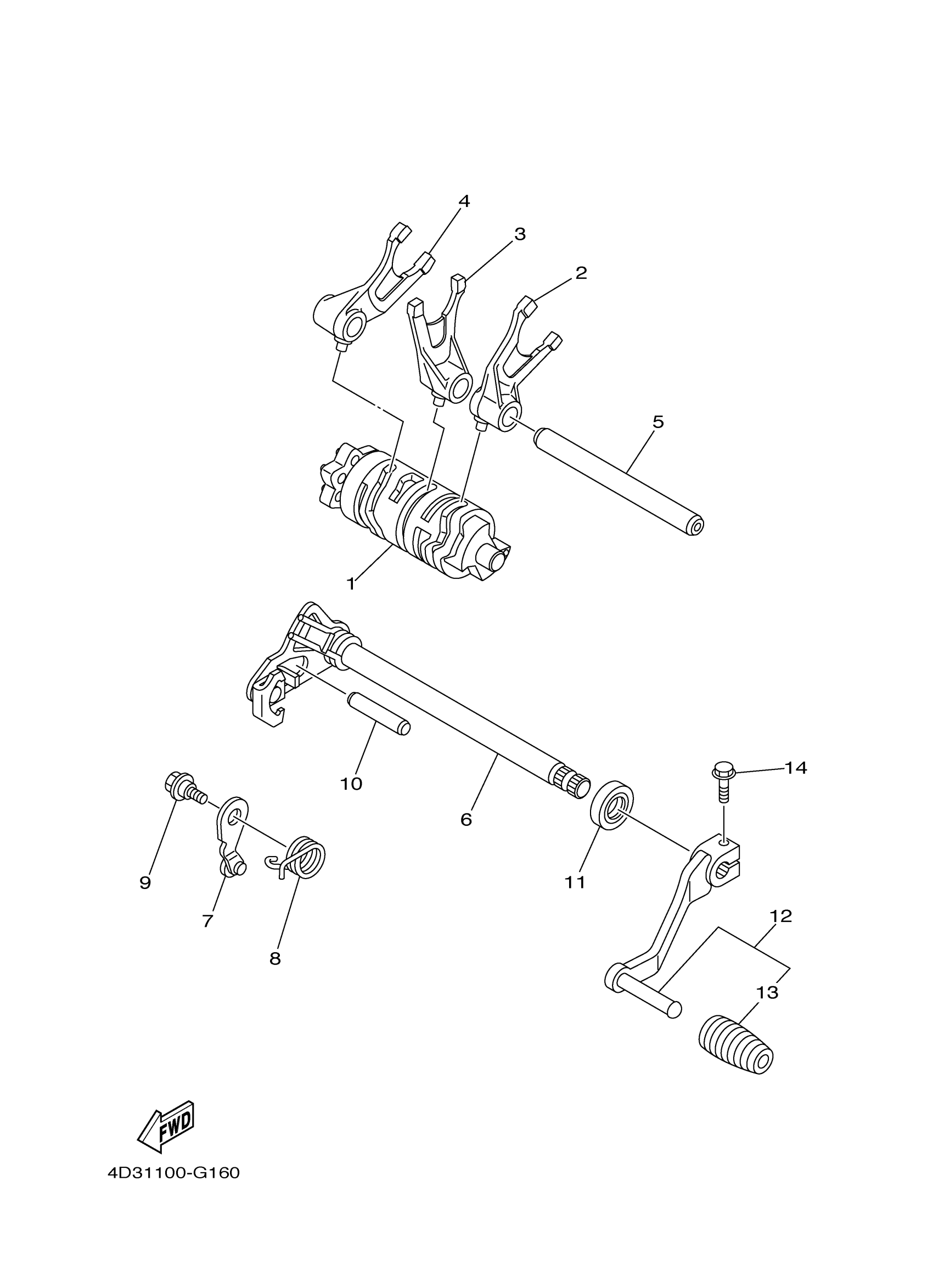

Yamaha YFM25RSE2Y (RAPTOR 250 SPECIAL EDITION II) 4D3H 2009 SHIFT CAM FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

1S4-18540-00-00

Unavailable

2

FORK, SHIFT 1

4D3-18511-00-00

$73.99

3

FORK, SHIFT 2

4D3-18512-00-00

$73.99

4

FORK, SHIFT 3

4D3-18513-00-00

$53.99

5

BAR, SHIFT FORK GUIDE 1

4GY-18531-00-00

$29.99

6

SHIFT SHAFT ASSY

4D3-18101-00-00

Unavailable

7

STOPPER LEVER ASSY

4TP-18140-00-00

Unavailable

8

SPRING, TORSION

90508-26020-00

Unavailable

9

BOLT

90109-06190-00

$4.72

10

PIN, DOWEL(4GY)

93608-43228-00

$4.94

11

OIL SEAL (3Y1)

93102-14209-00

$11.49

12

SHIFT PEDAL ASSY

4D3-18110-10-00

$63.99

13

COVER, SHIFT PEDAL

5YT-18113-00-00

$7.99

14

BOLT, FLANGE

95817-06020-00

$3.81
