Description

Price

1

FRONT LOWER ARM COMP. (LEFT)

4D3-23570-00-P0

Unavailable

2

BUSH, SOLID(3GG)

90381-15088-00

$21.99

3

COVER, THRUST 1

1UY-23517-01-00

$6.99

4

COLLAR(1UY)

90387-101R3-00

$19.99

5

BOLT, FLANGE

90105-10241-00

$8.49

6

NUT, SELF-LOCKING

90185-10012-00

$9.49

7

NIPPLE, GREASE

93700-06M03-00

Unavailable

8

FRONT LOWER ARM COMP. (RIGHT)

4D3-23580-00-P0

Unavailable

9

BUSH, SOLID(3GG)

90381-15088-00

$21.99

10

COVER, THRUST 1

1UY-23517-01-00

$6.99

11

COLLAR(1UY)

90387-101R3-00

$19.99

12

BOLT, FLANGE

90105-10241-00

$8.49

13

NUT, SELF-LOCKING

90185-10012-00

$9.49

14

NIPPLE, GREASE

93700-06M03-00

Unavailable

15

FRONT UPPER ARM COMP. (LEFT)

4D3-23540-00-P0

$204.99

16

BUSH, SOLID(3GG)

90381-15088-00

$21.99

17

COVER, THRUST 1

1UY-23517-01-00

$6.99

18

COLLAR(3GG)

90387-100Y6-00

Unavailable

19

SHAFT, PIVOT

486-22141-01-00

Unavailable

20

WASHER, PLATE

90201-10035-00

Unavailable

21

NUT, SELF-LOCKING

90185-10012-00

$9.49

22

NIPPLE, GREASE

93700-06M03-00

Unavailable

23

FRONT UPPER ARM COMP. (RIGHT)

4D3-23550-00-P0

Unavailable

24

BUSH, SOLID(3GG)

90381-15088-00

$21.99

25

COVER, THRUST 1

1UY-23517-01-00

$6.99

26

COLLAR(3GG)

90387-100Y6-00

Unavailable

27

SHAFT, PIVOT

486-22141-01-00

Unavailable

28

WASHER, PLATE

90201-10035-00

Unavailable

29

NUT, SELF-LOCKING

90185-10012-00

$9.49

30

NIPPLE, GREASE

93700-06M03-00

Unavailable

31

SHOCK ABSORBER ASSY

4D3-23350-32-00

Unavailable

32

LABEL, WARNING

4AA-22259-80-00

Unavailable

33

BOLT, FLANGE

90105-10131-00

Unavailable

34

NUT, SELF-LOCKING

90185-10012-00

$9.49

35

WASHER, PLATE

90201-10035-00

Unavailable

36

NUT, CASTLE

90171-10001-00

Unavailable

37

PIN, COTTER

91490-20025-00

Unavailable

38

NUT, CASTLE

90171-10001-00

Unavailable

39

PIN, COTTER

91490-20025-00

Unavailable

40

STEERING KNUCKLE ASSY (LEFT)

3GD-23501-10-00

Unavailable

41

STEERING KNUCKLE ASSY (RIGHT)

3GD-23502-10-00

Unavailable

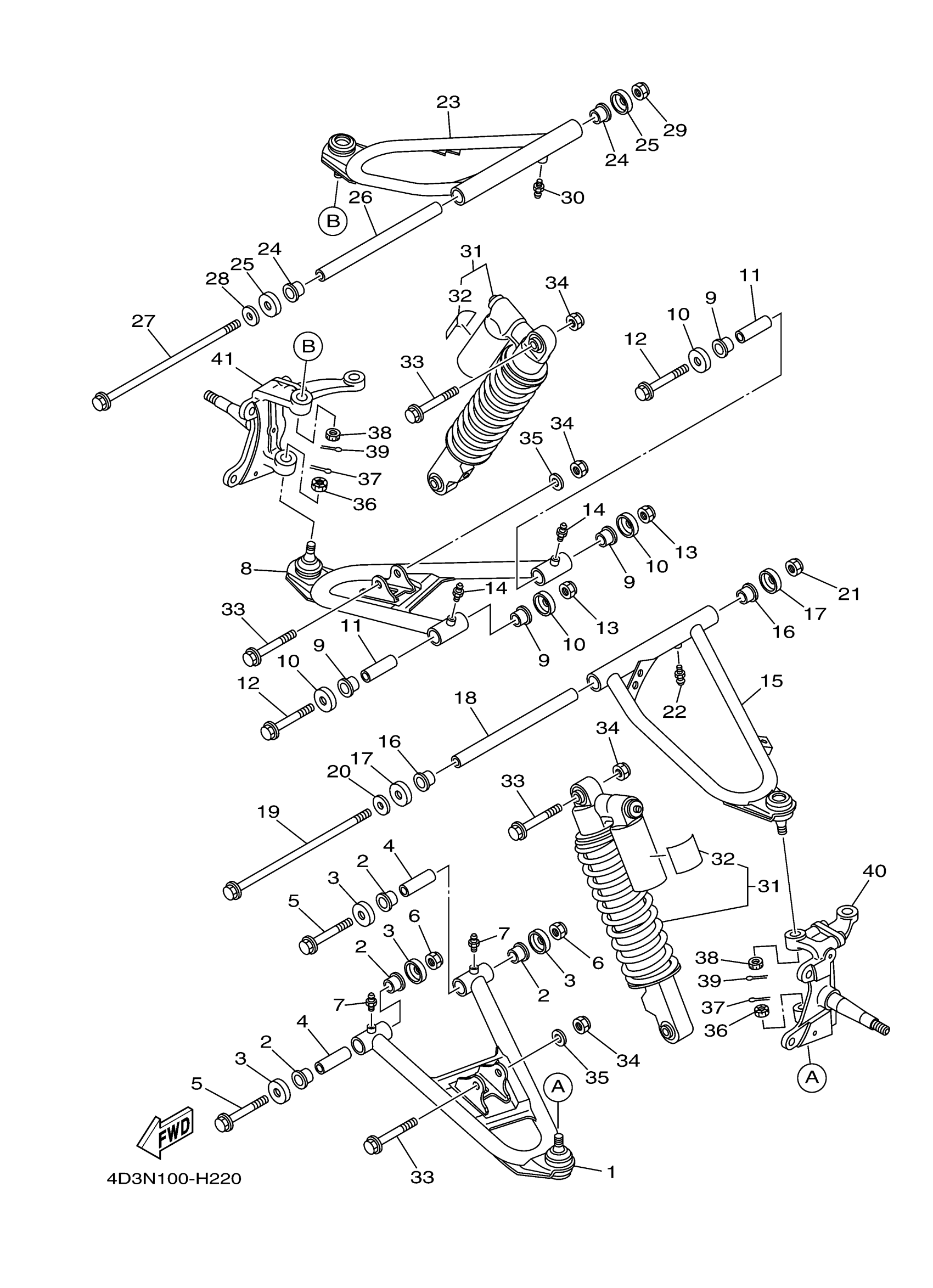

Yamaha YFM25RSE2Y (RAPTOR 250 SPECIAL EDITION II) 4D3H 2009 FRONT SUSPENSION WHEEL Diagram

FRONT LOWER ARM COMP. (LEFT)

BUSH, SOLID(3GG)

COVER, THRUST 1

COLLAR(1UY)

BOLT, FLANGE

NUT, SELF-LOCKING

NIPPLE, GREASE

FRONT LOWER ARM COMP. (RIGHT)

BUSH, SOLID(3GG)

COVER, THRUST 1

COLLAR(1UY)

BOLT, FLANGE

NUT, SELF-LOCKING

NIPPLE, GREASE

FRONT UPPER ARM COMP. (LEFT)

BUSH, SOLID(3GG)

COVER, THRUST 1

COLLAR(3GG)

SHAFT, PIVOT

WASHER, PLATE

NUT, SELF-LOCKING

NIPPLE, GREASE

FRONT UPPER ARM COMP. (RIGHT)

BUSH, SOLID(3GG)

COVER, THRUST 1

COLLAR(3GG)

SHAFT, PIVOT

WASHER, PLATE

NUT, SELF-LOCKING

NIPPLE, GREASE

SHOCK ABSORBER ASSY

LABEL, WARNING

BOLT, FLANGE

NUT, SELF-LOCKING

WASHER, PLATE

NUT, CASTLE

PIN, COTTER

NUT, CASTLE

PIN, COTTER

STEERING KNUCKLE ASSY (LEFT)

STEERING KNUCKLE ASSY (RIGHT)
