Description

Price

1

DISC, BRAKE (LEFT)

3GD-2582T-10-00

$202.99

2

BOLT

90109-08087-00

$8.49

3

CALIPER ASSY (LEFT)

4D3-2580T-01-00

Unavailable

4

PISTON ASSY, CALIPER

3B4-W0057-00-00

$82.99

5

CALIPER SEAL KIT

3B4-W0047-00-00

$15.49

6

BOOT 2

1UY-25937-51-00

$14.49

7

BOOT, CALIPER

3JD-25917-00-00

$8.99

8

SUPPORT, PAD

5DH-25919-00-00

$20.99

9

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

10

BOLT

1UY-25926-51-00

$4.47

11

WASHER, SPRING

1UY-25938-51-00

Unavailable

12

BOLT

3JD-25926-00-00

$7.99

13

NUT

3JD-25961-00-00

$8.99

14

BRAKE PAD KIT

4D3-W0045-00-00

$48.99

15

PIN, PAD

5DH-25933-00-00

$22.99

16

BOLT

8CR-25926-00-00

Unavailable

17

CALIPER ASSY (RIGHT)

4D3-2580U-01-00

Unavailable

18

PISTON ASSY, CALIPER

3B4-W0057-00-00

$82.99

19

CALIPER SEAL KIT

3B4-W0047-00-00

$15.49

20

BOOT 2

1UY-25937-51-00

$14.49

21

BOOT, CALIPER

3JD-25917-00-00

$8.99

22

SUPPORT, PAD

5DH-25919-00-00

$20.99

23

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

24

BOLT

1UY-25926-51-00

$4.47

25

WASHER, SPRING

1UY-25938-51-00

Unavailable

26

BOLT

3JD-25926-00-00

$7.99

27

NUT

3JD-25961-00-00

$8.99

28

BRAKE PAD KIT

4D3-W0045-10-00

Unavailable

29

PIN, PAD

5DH-25933-00-00

$22.99

30

BOLT

8CR-25926-00-00

Unavailable

31

BOLT, FLANGE

90105-08161-00

Unavailable

32

RING, WHEEL 1

4D3-2514A-00-00

Unavailable

33

SCREW, BINDING (31K)

90154-06014-00

Unavailable

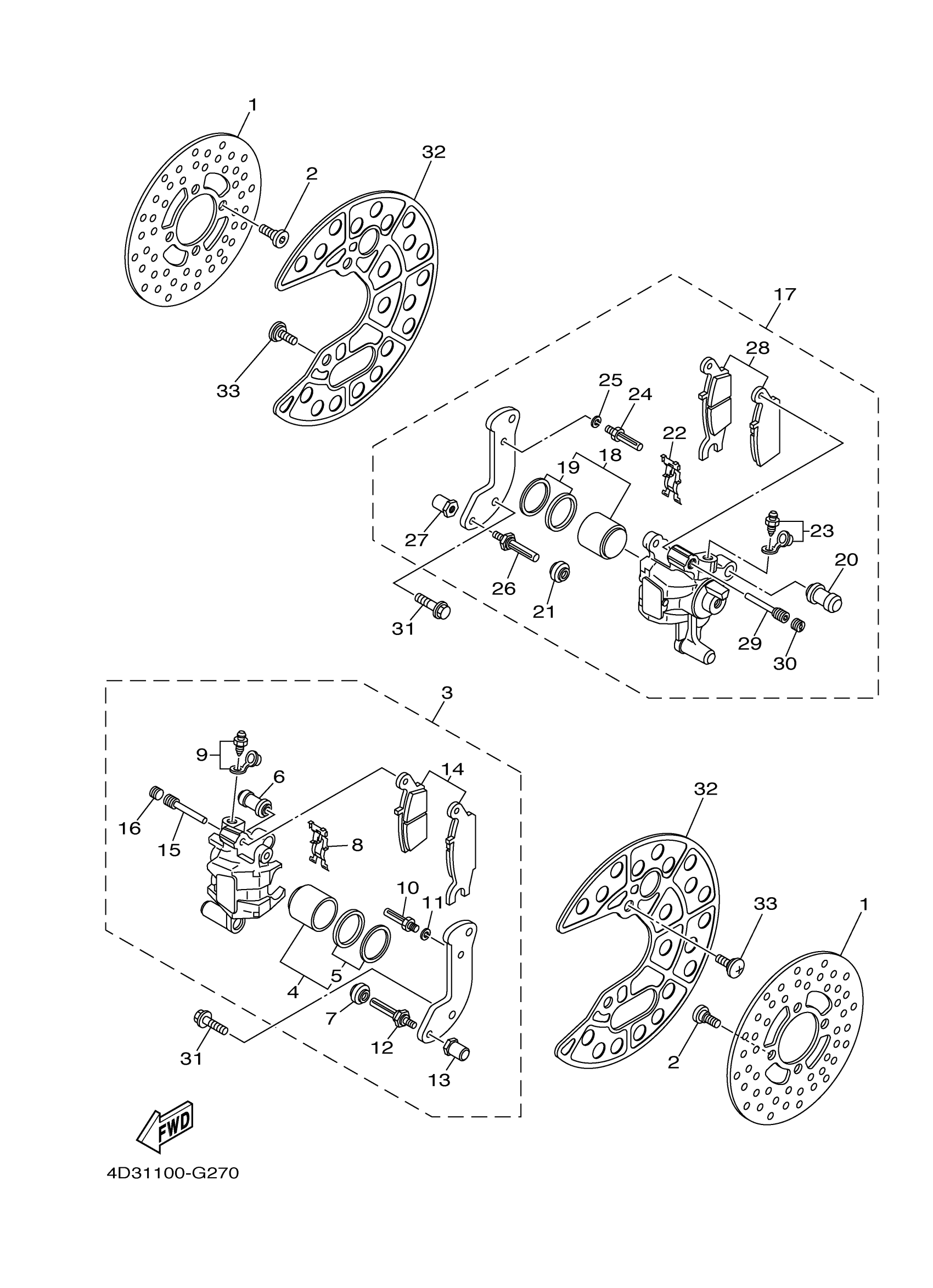

Yamaha YFM25RSE2Y (RAPTOR 250 SPECIAL EDITION II) 4D3H 2009 FRONT BRAKE CALIPER Diagram

DISC, BRAKE (LEFT)

BOLT

CALIPER ASSY (LEFT)

PISTON ASSY, CALIPER

CALIPER SEAL KIT

BOOT 2

BOOT, CALIPER

SUPPORT, PAD

BLEED SCREW KIT

BOLT

WASHER, SPRING

BOLT

NUT

BRAKE PAD KIT

PIN, PAD

BOLT

CALIPER ASSY (RIGHT)

PISTON ASSY, CALIPER

CALIPER SEAL KIT

BOOT 2

BOOT, CALIPER

SUPPORT, PAD

BLEED SCREW KIT

BOLT

WASHER, SPRING

BOLT

NUT

BRAKE PAD KIT

PIN, PAD

BOLT

BOLT, FLANGE

RING, WHEEL 1

SCREW, BINDING (31K)
