Description

Price

1

REAR WHEEL COMP.

1S3-25390-00-YX

$349.99

2

TIRE (AT19X10-9 DI-K502A T/L N

94110-09033-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$16.99

4

REAR WHEEL COMP.

1S3-25390-00-YX

$349.99

5

TIRE (AT19X10-9 DI-K502A T/L N

94110-09033-00

Unavailable

6

VALVE, RIM(2GH)

93900-00030-00

$16.99

7

WHEEL SHAFT COLLAR ASSY.

1PE-F53K0-00-00

$74.99

8

BOLT, SERRATION

90114-10013-00

$7.49

9

NUT, FLANGE(3BM)

95704-10500-00

$4.29

10

NUT, CASTLE

90171-14004-00

$12.49

11

WASHER, PLATE

90201-14021-00

$5.60

12

PIN, COTTER

91490-30030-00

$8.49

13

COLLAR, SPROCKET AXLE

5YT-25386-00-00

$151.99

14

SPROCKET, DRIVEN (38T)

5TG-25438-10-00

$43.99

15

BOLT

90109-10010-00

$7.49

16

NUT, S/L FLANGE

95602-10200-00

Unavailable

17

AXLE, WHEEL

4D3-F5381-09-00

Unavailable

18

CHAIN

9Y581-87091-00

Unavailable

19

JOINT, CHAIN

94681-87011-00

Unavailable

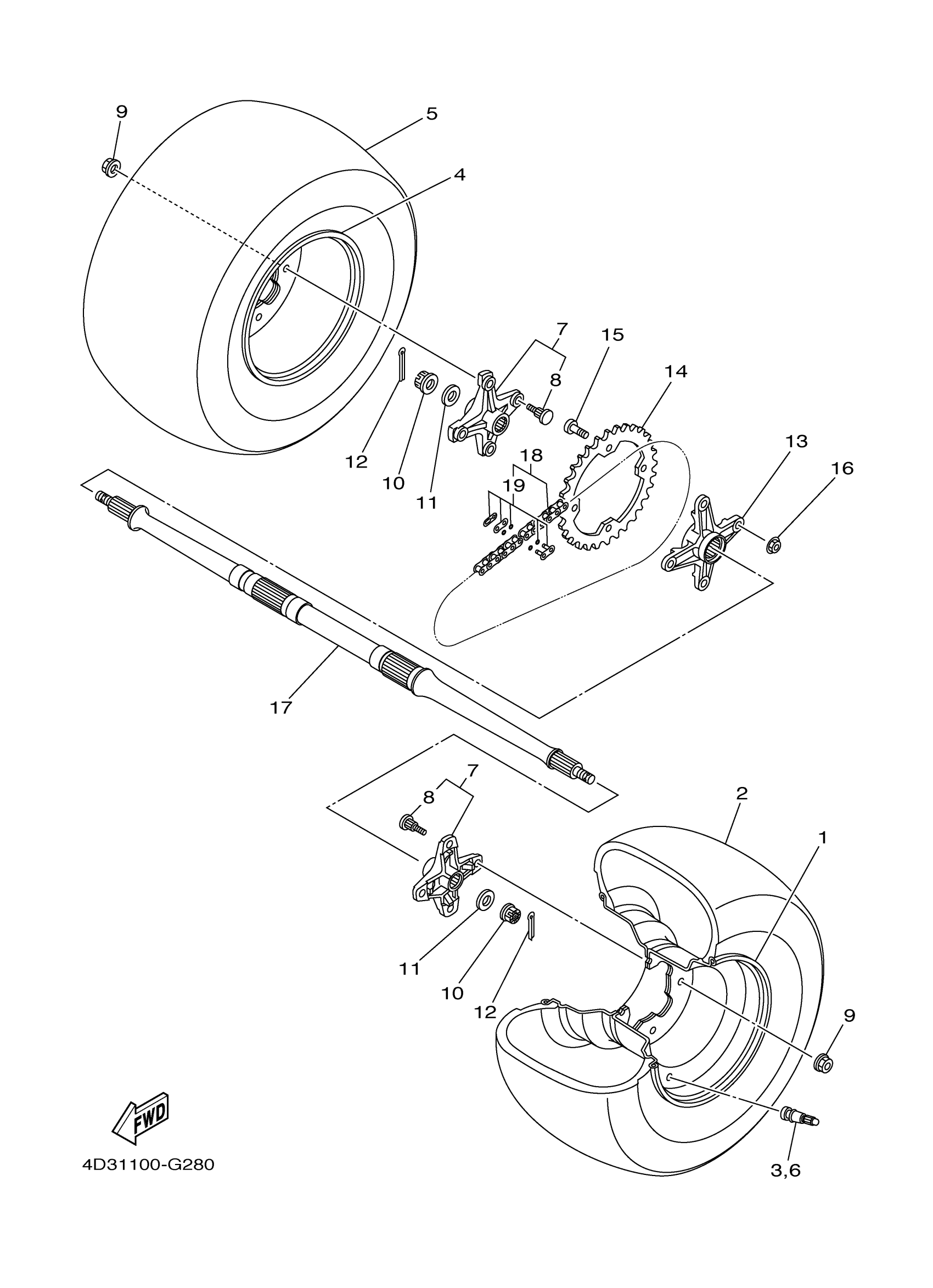

Yamaha YFM25RDW (RAPTOR 250) 1BTM0 2013 REAR WHEEL Diagram

REAR WHEEL COMP.

TIRE (AT19X10-9 DI-K502A T/L N

VALVE, RIM(2GH)

REAR WHEEL COMP.

TIRE (AT19X10-9 DI-K502A T/L N

VALVE, RIM(2GH)

WHEEL SHAFT COLLAR ASSY.

BOLT, SERRATION

NUT, FLANGE(3BM)

NUT, CASTLE

WASHER, PLATE

PIN, COTTER

COLLAR, SPROCKET AXLE

SPROCKET, DRIVEN (38T)

BOLT

NUT, S/L FLANGE

AXLE, WHEEL

CHAIN

JOINT, CHAIN
