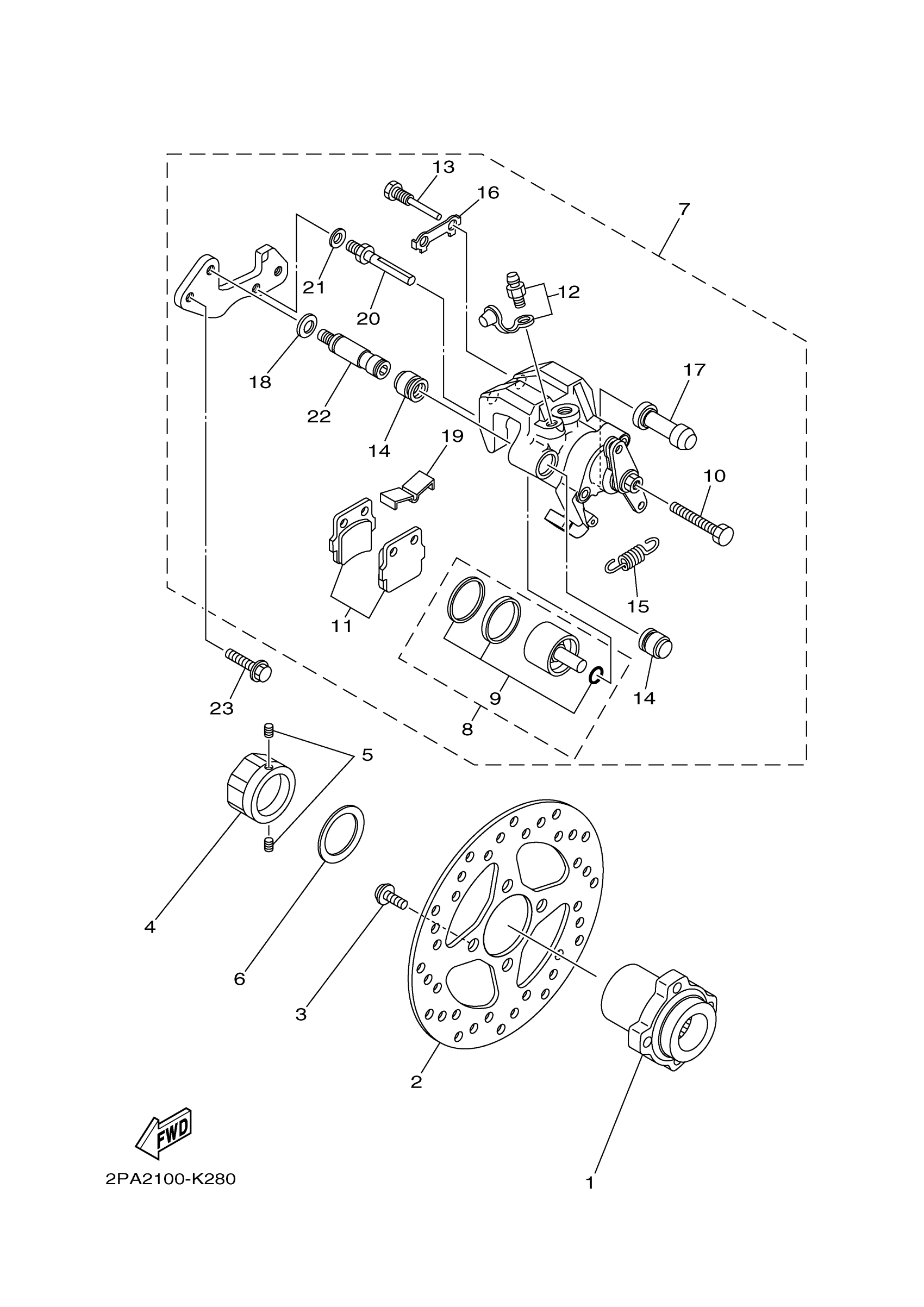

Yamaha YFM25RDW (RAPTOR 250) 1BTM0 2013 REAR BRAKE CALIPER Diagram

#

Description
Price

1

BRACKET, DISC

5YT-25712-00-00

Unavailable

2

DISK, REAR BRAKE 2

4D3-2582W-00-00

$97.99

3

BOLT,HEX. SOCKET BUTTON

90111-08053-00

$8.49

4

NUT

90170-33010-00

$37.99

5

BOLT, SET (8K2)

90113-06039-00

$9.49

6

WASHER, CONICAL SPRING

90208-34001-00

$12.49

7

CALIPER ASSY, REAR 2

5YT-2580W-10-00

$456.99

8

PISTON ASSY, CALIPER

1UY-W0057-50-00

$111.99

9

CALIPER SEAL KIT

1UY-W0047-50-00

$17.49

10

ADJUSTBOLT

1UY-25972-51-00

$13.49

11

BRAKE PAD KIT 2

4D3-W0046-51-00

$45.99

12

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

13

PIN, PAD

1UY-25924-51-00

Unavailable

14

BOOT, CALIPER

1UY-25917-51-00

$6.99

15

SPRING, RETURN

5YT-25977-50-00

Unavailable

16

WASHER, PAD PIN

1UY-25933-51-00

Unavailable

17

BOOT 2

1UY-25937-51-00

Unavailable

18

SPRING, PAD

1UY-25934-51-00

Unavailable

19

SUPPORT, PAD

1UY-25919-51-00

Unavailable

20

BOLT

1UY-25926-51-00

Unavailable

21

WASHER, SPRING

1UY-25938-51-00

Unavailable

22

PIN, SLIDE

1UY-25914-51-00

Unavailable

23

BOLT, FLANGE

90105-08183-00

Unavailable
