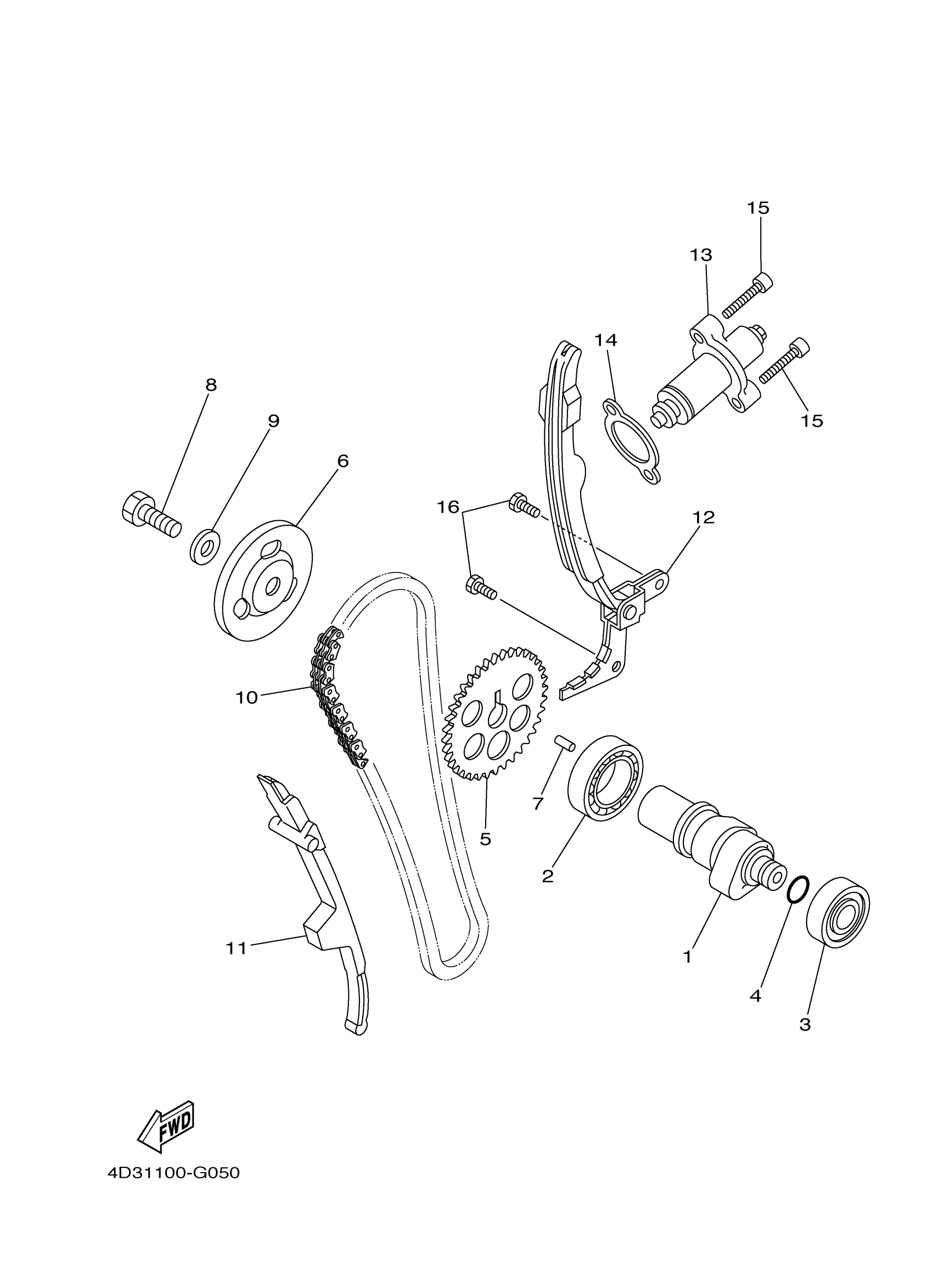

Yamaha YFM25RBW (RAPTOR 250) 1BTF0 2012 CAMSHAFT CHAIN Diagram

Description

Price

CAMSHAFT 1

1S4-12171-00-00

$192.99

BEARING(1FF)

93306-00519-00

$36.99

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$22.99

O-RING (4G0)

93210-11453-00

$7.49

SPROCKET, CAM CHAIN

5XT-12176-00-00

$47.99

PLATE, BREATHER 2

4KB-11145-00-00

$11.99

PIN,DOWEL (603)

93604-10011-00

$8.49

BOLT

90101-10016-00

$4.14

WASHER, PLATE (3L6)

90201-10774-00

$9.49

CHAIN

94582-19104-00

$17.49

GUIDE, STOPPER 1

5BP-12231-01-00

$63.99

GUIDE, STOPPER 2

5XT-12241-02-00

$41.99

TENSIONER ASSY, CAM CHAIN

5XT-12210-00-00

$83.99

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

BOLT,SOCKET

91317-06025-00

$5.60

BOLT

97012-06014-00

Unavailable
