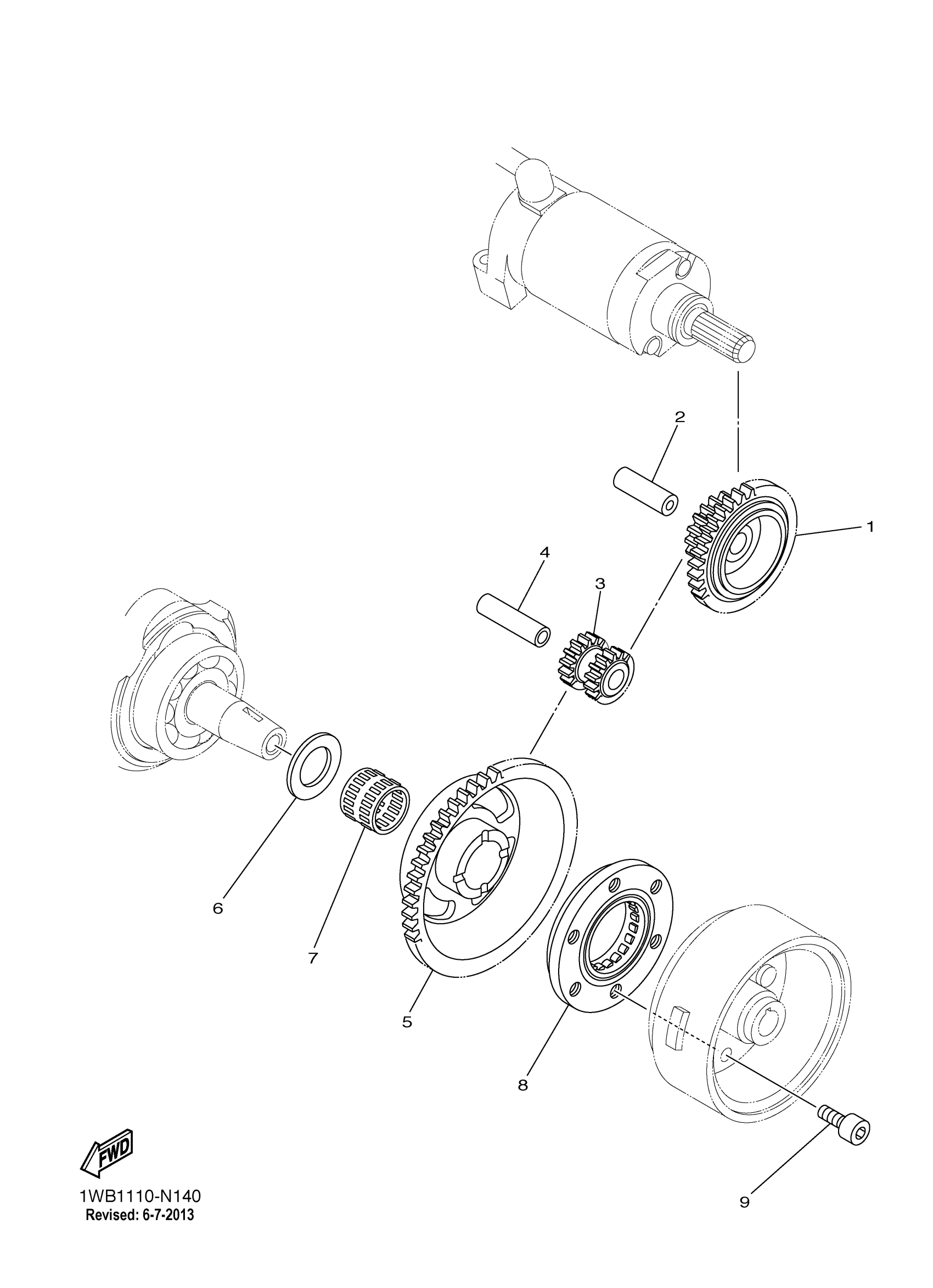

Yamaha YFM25RAW (RAPTOR 250) 1BT90 2011 STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, IDLER 1

1WB-15512-00-00

$133.58

2

SHAFT 1

1VJ-15521-00-00

$17.03

3

GEAR, IDLER 2

1S4-15517-00-00

$53.34

4

SHAFT 1

36Y-15521-01-00

$17.82

5

GEAR 3

1S4-15515-00-00

$155.14

6

WASHER PLATE 371115580000

90201-25291-00

$8.31

7

BEARING, CYLINDRICAL(51Y)

93310-225N0-00

$37.04

8

STARTER ONE-WAY ASSY

5BP-15590-00-00

$204.51

9

BOLT, SOCKET

91317-08016-00

$5.75
