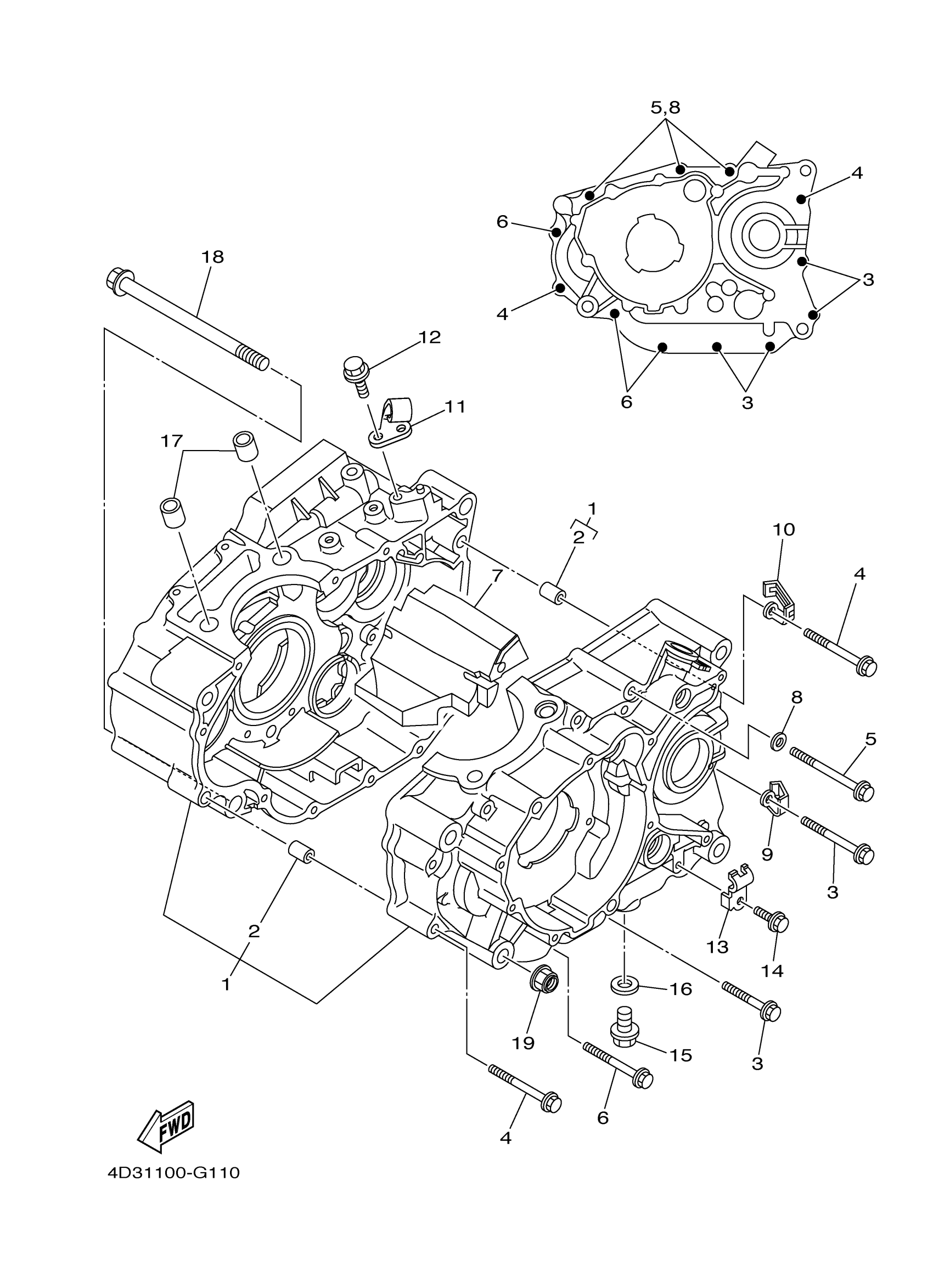

Yamaha YFM25RAL (RAPTOR 250) 1BT9 2011 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

5XT-15100-07-00

$445.92

2

PIN, DOWEL(3VD)

99530-10114-00

$2.23

3

BOLT, FLANGE

95022-06045-00

$2.48

4

BOLT, FLANGE

95022-06060-00

$6.26

5

BOLT, FLANGE

95022-06070-00

$2.02

6

BOLT, FLANGE

95022-06055-00

$1.17

7

SPACER, ENGINE MOUNT

4D3-15327-00-00

$39.12

8

GASKET 256113960000

90430-06014-00

$7.23

9

CLAMP

90462-08045-00

$5.26

10

CLAMP

90461-08001-00

$4.57

11

HOLDER, CLUTCH CABLE

4D3-15441-00-00

Unavailable

12

BOLT, FLANGE

95817-06016-00

$1.49

13

CLAMP(4GY)

90462-10215-00

$8.12

14

BOLT, FLANGE

95022-06010-00

$5.45

15

PLUG, STRAIGHT SCREW

90340-12006-00

$3.51

16

GASKET(3FD)

90430-12213-00

$5.09

17

PIN, DOWEL

99530-14016-00

$3.20

18

BOLT, FLANGE

95812-10170-00

$6.00

19

NUT, S/L FLANGE

95602-10200-00

$2.29
