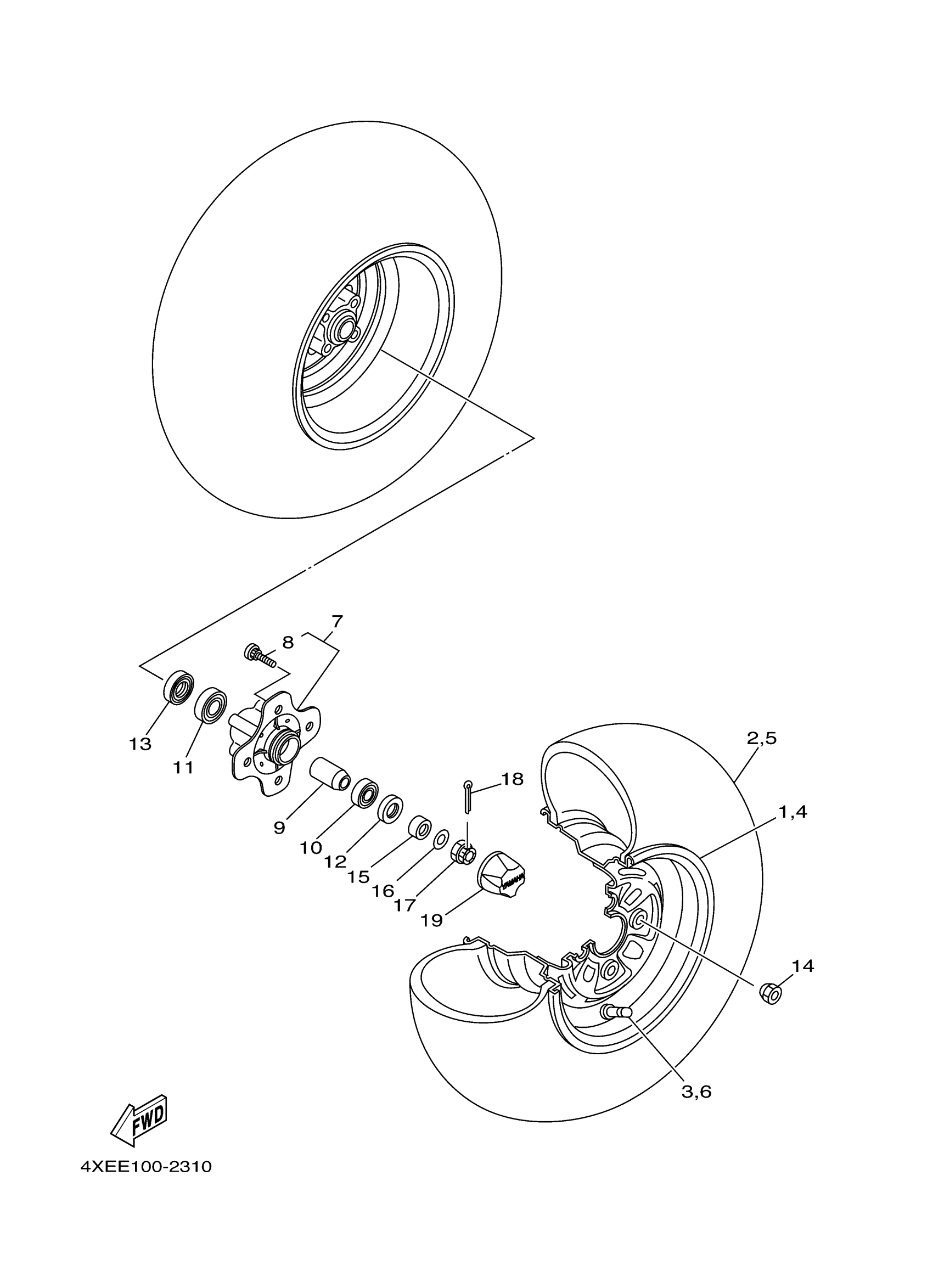

Yamaha YFM25BYR (BIG BEAR 250) 1P0H1 2009 FRONT WHEEL Diagram
#
Description
Price
1
10X6 STEEL RIM FRONT BLACK
4XE-F5180-31-00
Unavailable
1
WHEEL COMP.
4XE-F5180-50-00
Unavailable
2
TIRE (AT 22X 7-10, M-905)
94107-10800-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
4
10X6 STEEL RIM FRONT BLACK
4XE-F5180-31-00
Unavailable
4
WHEEL COMP.
4XE-F5180-50-00
Unavailable
5
TIRE (AT 22X 7-10, M-905)
94107-10800-00
Unavailable
6
VALVE, RIM
93900-00812-00
Unavailable
7
HUB, FRONT
4XE-F5111-21-00
Unavailable
8
BOLT
1P0-F5411-00-00
Unavailable
10
BEARING
93306-004YX-00
Unavailable
11
BEARING
93306-202XM-00
Unavailable
14
NUT
90179-10022-00
Unavailable
15
COLLAR(1UY)
90387-150R1-00
Unavailable
16
WASHER, PLATE
90201-14816-00
Unavailable
17
NUT, CASTLE
90171-14004-00
Unavailable
18
PIN, COTTER
91401-30025-00
Unavailable
19
CAP, WHEEL
52H-2512A-00-00
Unavailable
