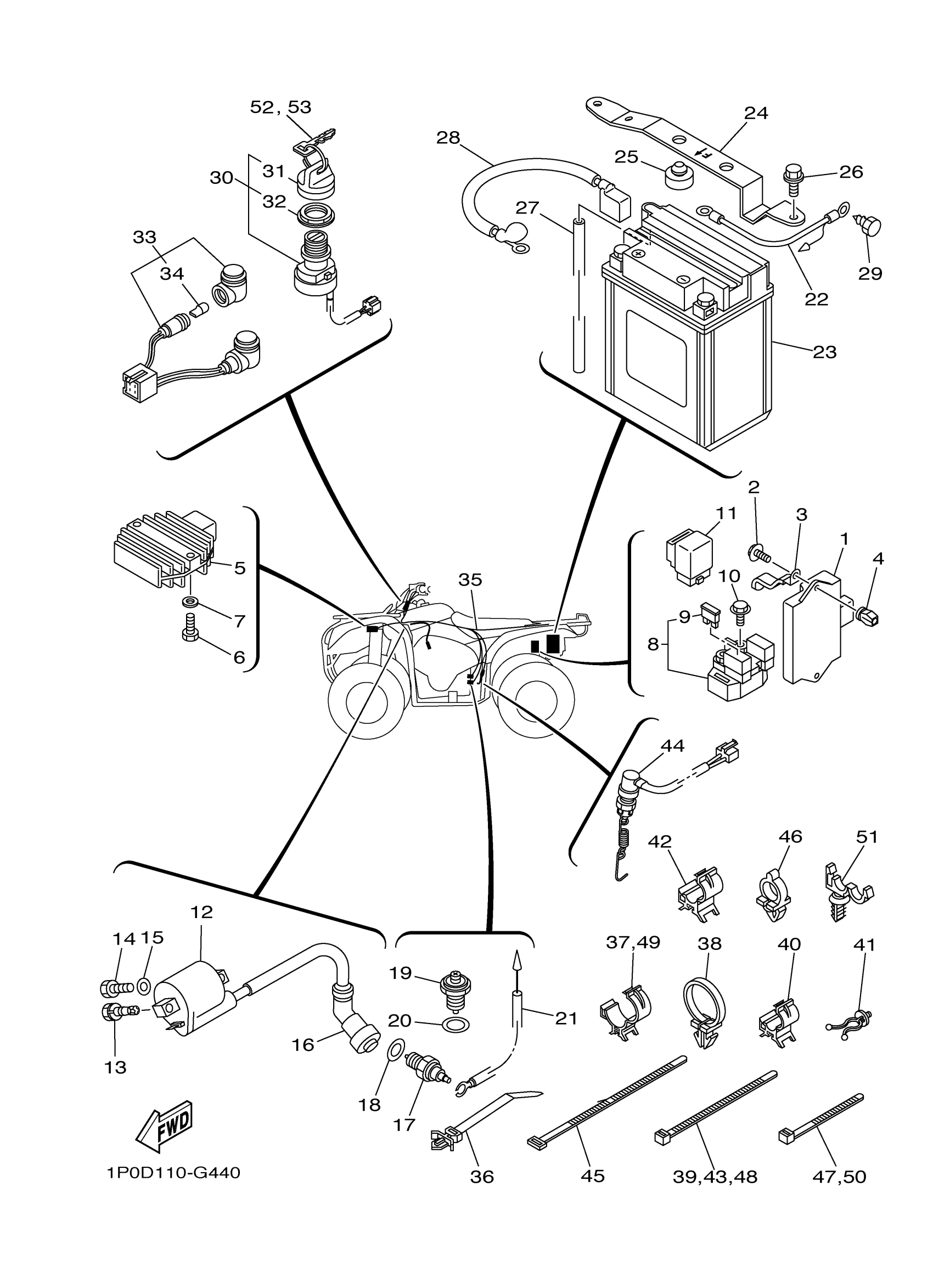

Yamaha YFM25BXL (BIG BEAR 250) 1P0D0 2008 ELECTRICAL 1 Diagram
#
13
BOLT
90109-06865-00
Unavailable
16
PLUG CAP ASSY
3NS-82370-00-00
Unavailable
17
NEUTRAL SWITCH ASSY
3GB-82540-01-00
Unavailable
18
GASKET (1KH,1.0T)
90430-10148-00
Unavailable
19
NEUTRAL SWITCH ASSY
4KD-82540-00-00
Unavailable
20
WASHER, PLATE
90201-12790-00
Unavailable
21
WIRE, LEAD
5XG-H2507-00-00
Unavailable
22
WIRE, MINUS LEAD
1P0-H2116-00-00
Unavailable
23
BATTERY ASSY (GS CB14A-A2)
BTY-CB14A-A2-00
Unavailable
24
BRACKET, BATTERY
1P0-H2128-00-00
Unavailable
25
PAD, BATTERY
5TG-82121-10-00
Unavailable
26
BOLT, FLANGE
95817-06020-00
Unavailable
27
PIPE, BREATHER
1P0-H2112-00-00
Unavailable
28
WIRE, PLUS LEAD
1P0-H2115-00-00
Unavailable
29
SCREW, TAPPING
97702-60416-00
Unavailable
30
MAIN SWITCH ASSY
4XE-82510-01-00
Unavailable
31
CAP, KEY
3HN-82579-00-00
Unavailable
32
NUT, MAIN SWITCH
3HN-82569-00-00
Unavailable
33
PILOT LIGHT ASSY
5TE-83530-00-00
Unavailable
34
BULB (12V-1.7W)
3FV-83517-00-00
Unavailable
35
WIRE HARNESS ASSY
1P0-82590-10-00
Unavailable
36
CLAMP
90464-25800-00
Unavailable
37
CLAMP
90464-20835-00
Unavailable
38
CLAMP
90464-19815-00
Unavailable
39
CLAMP(JN6)
90464-40825-00
Unavailable
40
CLAMP
90464-08834-00
Unavailable
41
CLAMP
90464-12815-00
Unavailable
42
CLAMP
90464-10842-00
Unavailable
43
CLAMP(JN6)
90464-40825-00
Unavailable
44
STOP SWITCH ASSY
4XE-82530-10-00
Unavailable
45
CLAMP
90464-48800-00
Unavailable
46
CLAMP
90464-12830-00
Unavailable
47
CLAMP(JN6)
90464-31827-00
Unavailable
48
CLAMP(JN6)
90464-40825-00
Unavailable
49
CLAMP
90464-20835-00
Unavailable
50
CLAMP(JN6)
90464-31827-00
Unavailable
51
CLAMP
90464-12830-00
Unavailable
52
KEY BLANK (A-TYPE)
90890-560001-00
Unavailable
53
KEY BLANK (B-TYPE)
90890-560002-00
Unavailable
