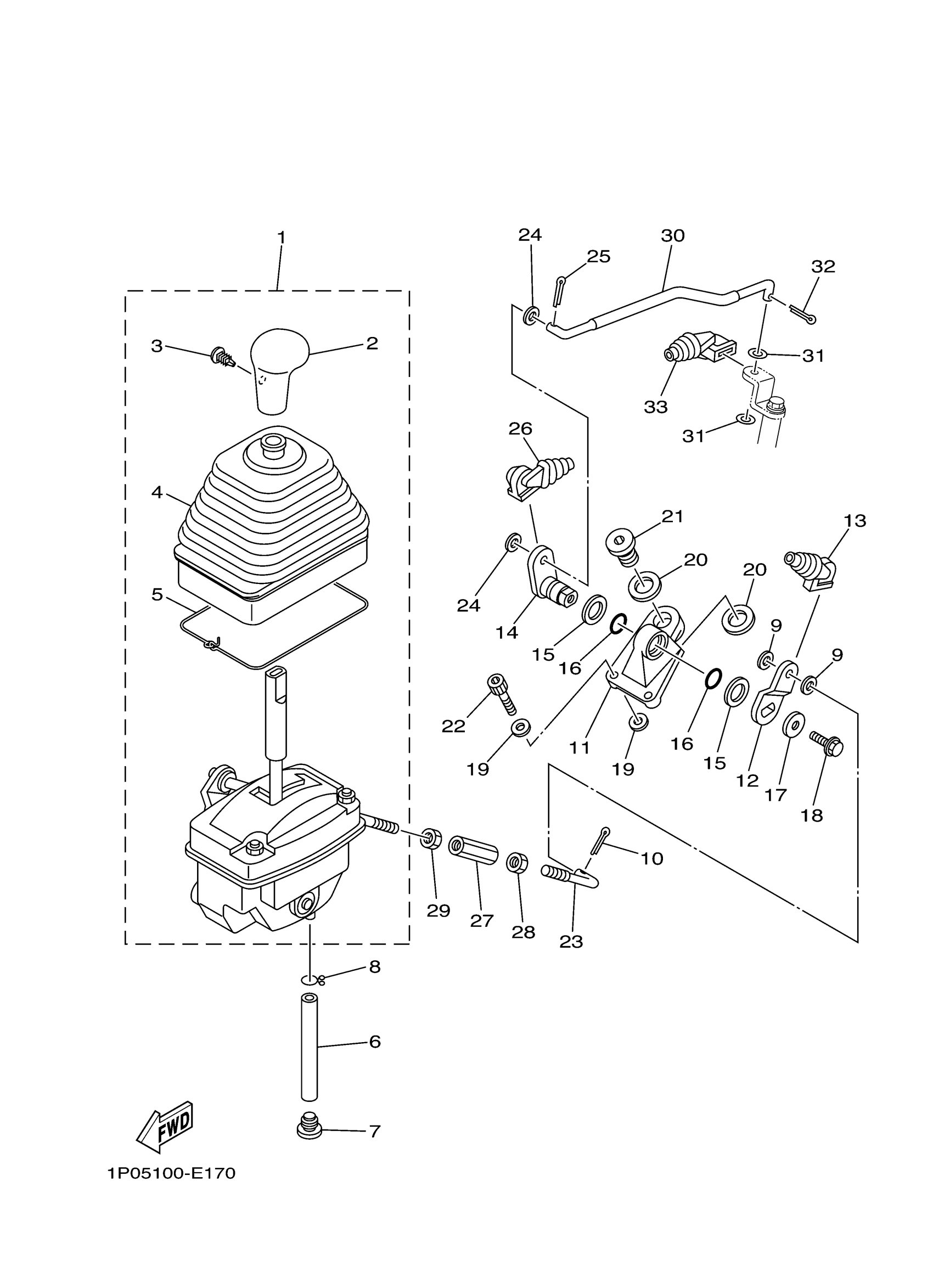

Yamaha YFM25BXL (BIG BEAR 250) 1P0D0 2008 DRIVE SELECTOR Diagram

#

Description
Price

1

SHIFTER ASSY

1P0-18300-01-00

Unavailable

2

KNOB, SHIFT LEVER

1P0-18174-00-00

Unavailable

3

RIVET(81E)

90269-05055-00

$8.49

4

BOOTS, SEALING

5GH-18131-00-00

$83.99

5

STOPPER, RUBBER

5GH-18617-00-00

Unavailable

6

HOSE

90446-16001-00

$2.39

7

PLUG, DRAIN

5ND-E4191-10-00

Unavailable

8

CLIP (806-24358-00)

90467-15012-00

$8.49

9

WASHER(6TA)

92907-06200-00

$8.49

10

PIN, COTTER (648)

91490-20015-00

$2.20

11

KNOB, SHIFTER

1P0-E8164-00-00

Unavailable

12

LEVER

1P0-E8191-00-00

Unavailable

13

COVER, DUST

5XG-E8154-10-00

Unavailable

14

SHAFT, RINK

1P0-E8341-10-00

Unavailable

15

WASHER, PLATE(52G)

90201-144J2-00

$8.49

16

O-RING (26H)

93210-14579-00

Unavailable

17

WASHER, PLATE

90201-06M02-00

Unavailable

18

BOLT, FLANGE

95817-06016-00

Unavailable

19

WASHER, PLATE(4BD)

90201-067P3-00

Unavailable

20

WASHER, PLATE(4BD)

90201-147P2-00

Unavailable

21

PLUG, STRAIGHT SCREW

90340-14107-00

Unavailable

22

BOLT,SOCKET

91317-06020-00

Unavailable

23

JOINT, ROD 2

5XG-E8117-00-00

Unavailable

24

WASHER(6TA)

92907-06200-00

$8.49

25

PIN, COTTER (648)

91490-20015-00

$2.20

26

COVER, DUST

5XG-E8154-00-00

Unavailable

27

NUT, ADJUST

52G-18187-00-00

Unavailable

28

NUT(6TA)

95337-08600-00

Unavailable

29

NUT

90170-08261-00

Unavailable

30

JOINT, ROD 1

5XG-E8116-00-00

Unavailable

31

WASHER(6TA)

92907-06200-00

$8.49

32

PIN, COTTER (648)

91490-20015-00

$2.20

33

COVER, DUST

5XG-E8154-10-00

Unavailable
