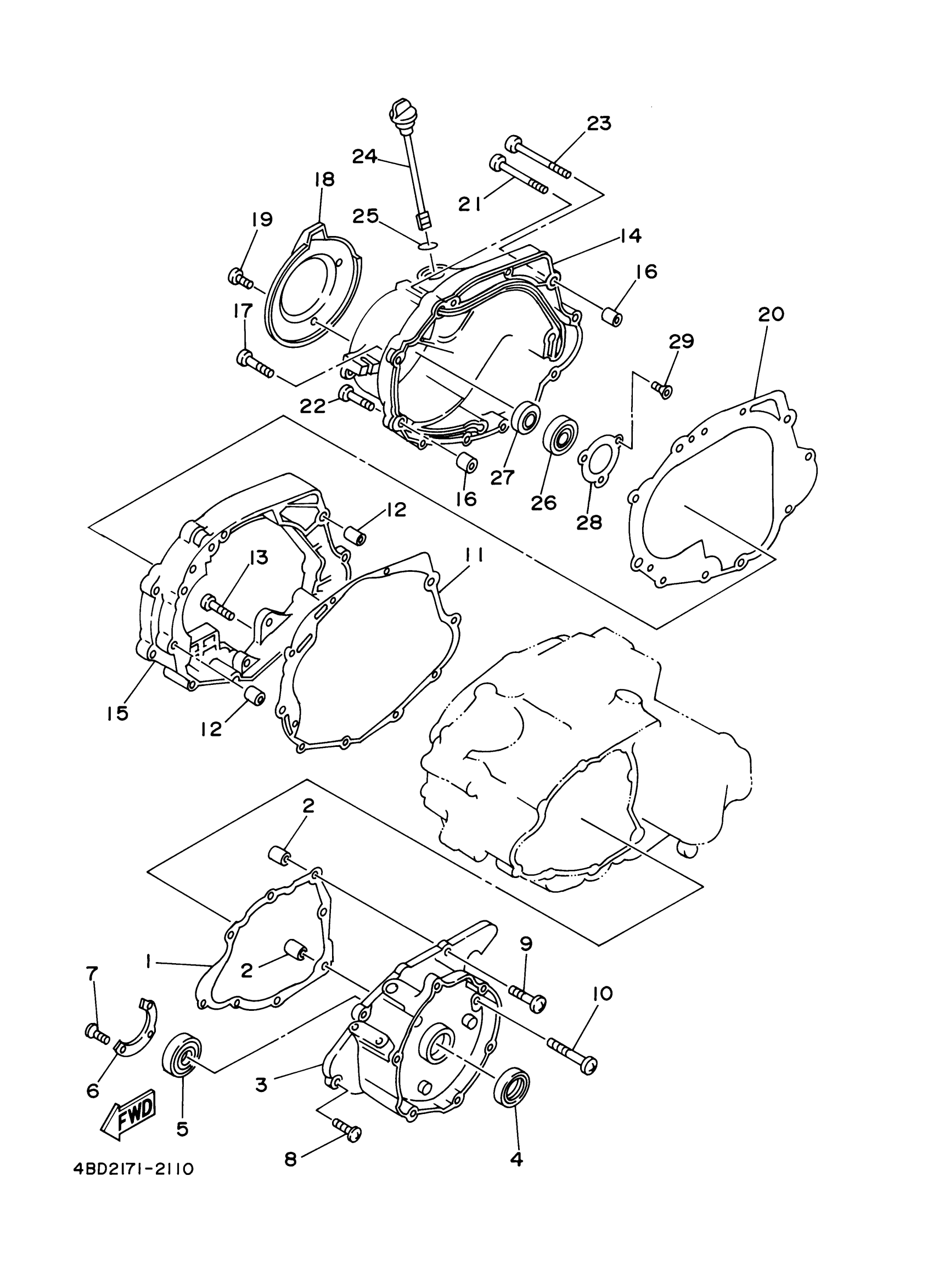

Yamaha YFM25BXL (BIG BEAR 250) 1P0D0 2008 CRANKCASE COVER 1 Diagram
#
Description
Price
3
ADAPTOR
5XG-E5787-00-00
Unavailable
6
WASHER, THRUST
21V-15719-00-00
Unavailable
14
COVER, CRANKCASE 3
5XG-E5431-00-00
Unavailable
15
SPACER, ENGINE MOUNT
5XG-E5317-00-00
Unavailable
18
PROTECTOR, COVER
5XG-E5499-00-00
Unavailable
19
SCREW, BINDING
98907-06014-00
Unavailable
20
GASKET, CARBURETOR COVER 2
4BD-15463-01-00
Unavailable
21
SCREW, PAN HEAD
98507-06070-00
Unavailable
23
SCREW, PAN
98507-06080-00
Unavailable
24
PLUG, OIL LEVEL
5XG-E5362-00-00
Unavailable
25
O-RING
93210-19841-00
Unavailable
26
BEARING
93306-203X0-00
Unavailable
27
OIL SEAL (21V)
93101-17113-00
Unavailable
28
PLATE, BEARING COVER
5XG-E5381-00-00
Unavailable
29
SCREW, FLAT
98707-06018-00
Unavailable
