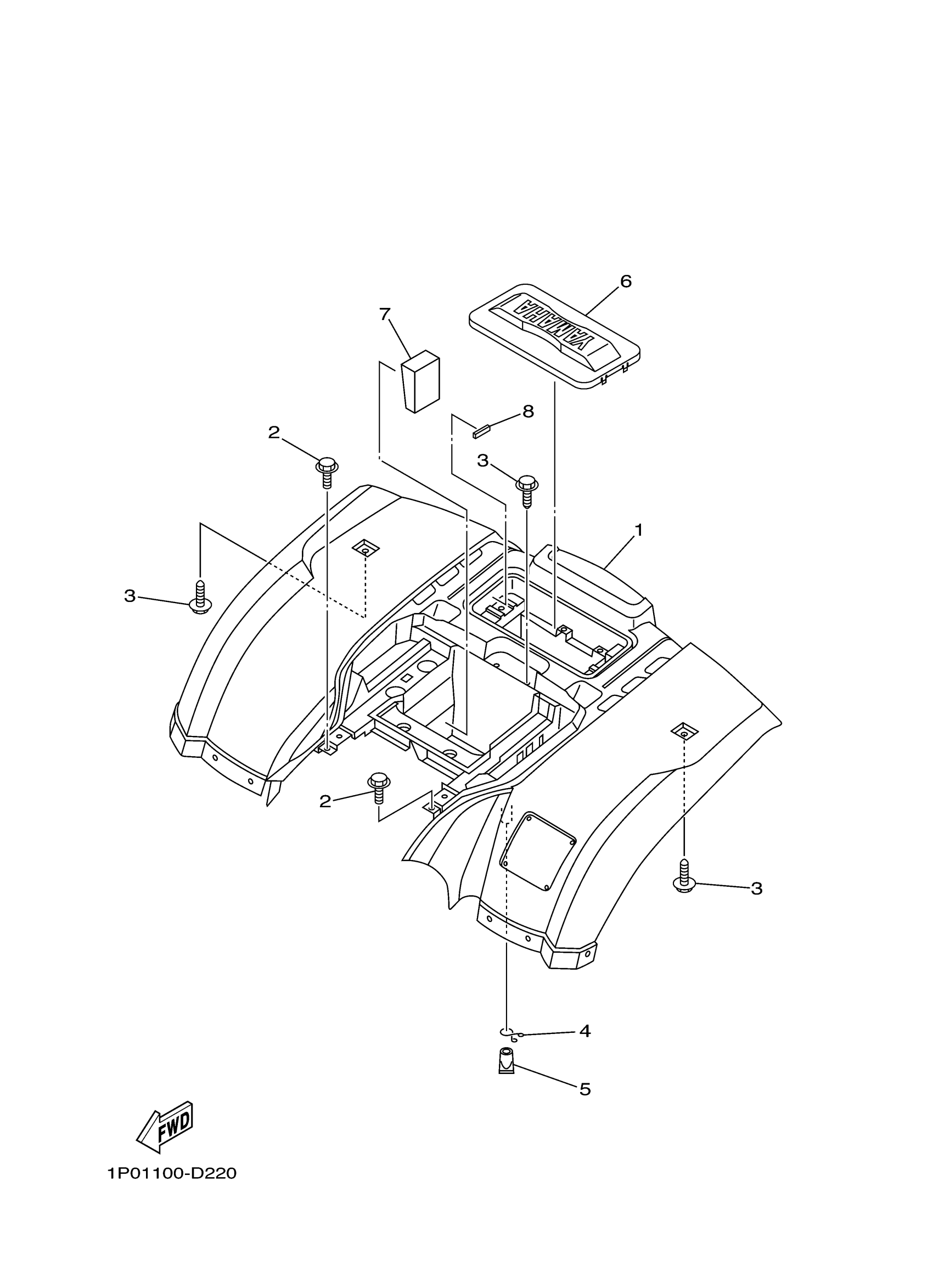

Yamaha YFM25BW (BIG BEAR 250) 1P09 2007 REAR FENDER Diagram

#

Description
Price

1

REAR FENDER ASSY.

1P0-F1600-A1-00

Unavailable

1

REAR FENDER ASSY. (PASTEL DEEP GREEN)

1P0-F1600-11-00

Unavailable

1

REAR FENDER ASSY.

1P0-F1600-21-00

Unavailable

2

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

3

BOLT, WITH WASHER

90119-06226-00

$8.49

4

CLIP(62Y)

90467-15M14-00

Unavailable

5

PIPE, DRAIN

5BF-1443E-00-00

$4.68

6

COVER, REAR FENDER (ROMANTIQUE ROUGE)

1P0-F1651-00-00

Unavailable

6

COVER, REAR FENDER (PASTEL DEEP GREEN)

1P0-F1651-10-00

Unavailable

6

COVER, REAR FENDER (DARK PURPLISH BLUE SOLID N)

1P0-F1651-50-00

Unavailable

7

DAMPER

1P0-F1649-00-00

Unavailable

8

CLAMP, DAMPER

1P0-F4285-00-00

Unavailable
