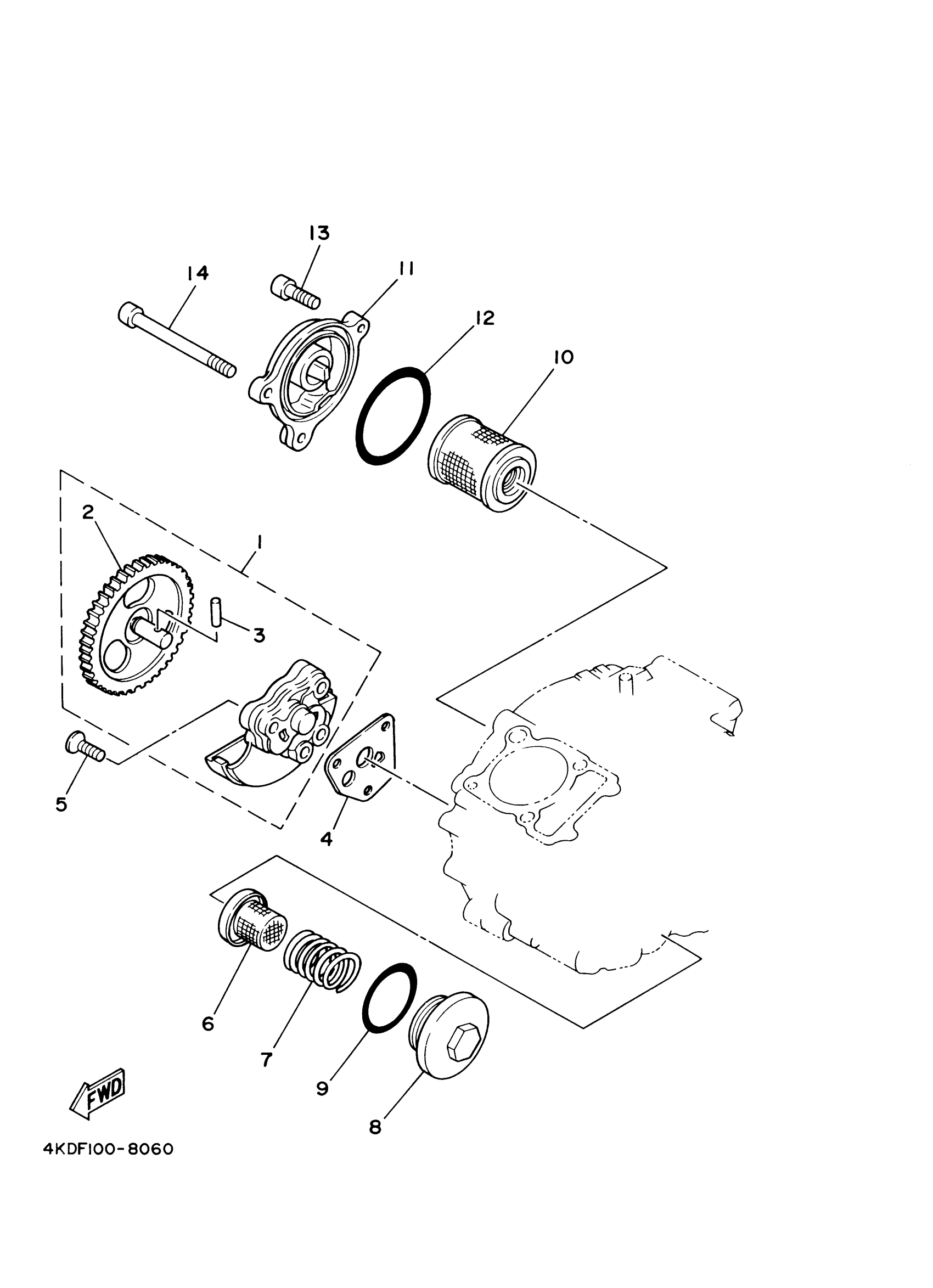

Yamaha YFM25BW (BIG BEAR 250) 1P09 2007 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

2HT-13300-00-00

$243.99

2

. GEAR, PUMP DRIVEN 2

5XG-E3326-00-00

Unavailable

3

PIN DOWEL

93603-12801-00

Unavailable

4

GASKET, PUMP COVER

3GD-13329-00-00

$7.99

5

SCREW, FLAT

98707-06030-00

$7.99

6

STRAINER, OIL

51Y-13411-00-00

$37.99

7

SPRING, COMPRESSION (3Y1)

90501-18576-00

$8.49

8

PLUG, DRAIN

5XG-E5351-00-00

Unavailable

9

O-RING

93210-34800-00

Unavailable

10

ELEMENT ASSY, OIL CLEANER

3UH-E3440-00-00

$9.99

11

COVER, OIL ELEMENT

5XG-E3447-00-00

Unavailable

12

O-RING (341)

93210-54175-00

$13.49

13

BOLT,SOCKET

91317-06020-00

Unavailable

14

BOLT,SOCKET

91317-06115-00

Unavailable
