Description

Price

1

FUEL TANK COMP.

4XE-F4110-10-00

Unavailable

2

CAP ASSY

5KM-24610-00-00

$61.99

3

FUEL COCK ASSY 1

3JN-24500-10-00

$44.99

4

SEAL, COCK

3AJ-24534-01-00

$10.99

5

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

6

O-RING

4X8-24512-00-00

$8.99

7

WASHER, PLATE(3MB)

90202-05187-00

$1.38

8

SCREW 256241430000

90149-06011-00

$5.60

9

GROMMET (4V1)

90480-18290-00

$8.49

10

COLLAR (36R)

90387-066J1-00

$8.49

11

BOLT, WITH WASHER

90119-06883-00

$4.51

12

GROMMET(38W)

90480-01400-00

$13.49

13

WASHER, PLATE

90201-06090-00

$5.60

14

COLLAR (1T2)

90387-07598-00

$5.60

15

BOLT, WITH WASHER

90119-06883-00

$4.51

16

PIPE, FUEL 1

1P0-24311-00-00

Unavailable

17

CLIP

90467-100A1-00

Unavailable

18

HOSE

90445-08809-00

Unavailable

19

GROMMET

4BD-24339-00-00

Unavailable

20

DAMPER, LOCATING 1

4XE-F4181-00-00

Unavailable

21

DAMPER, PLATE 1

4XE-F414H-00-00

Unavailable

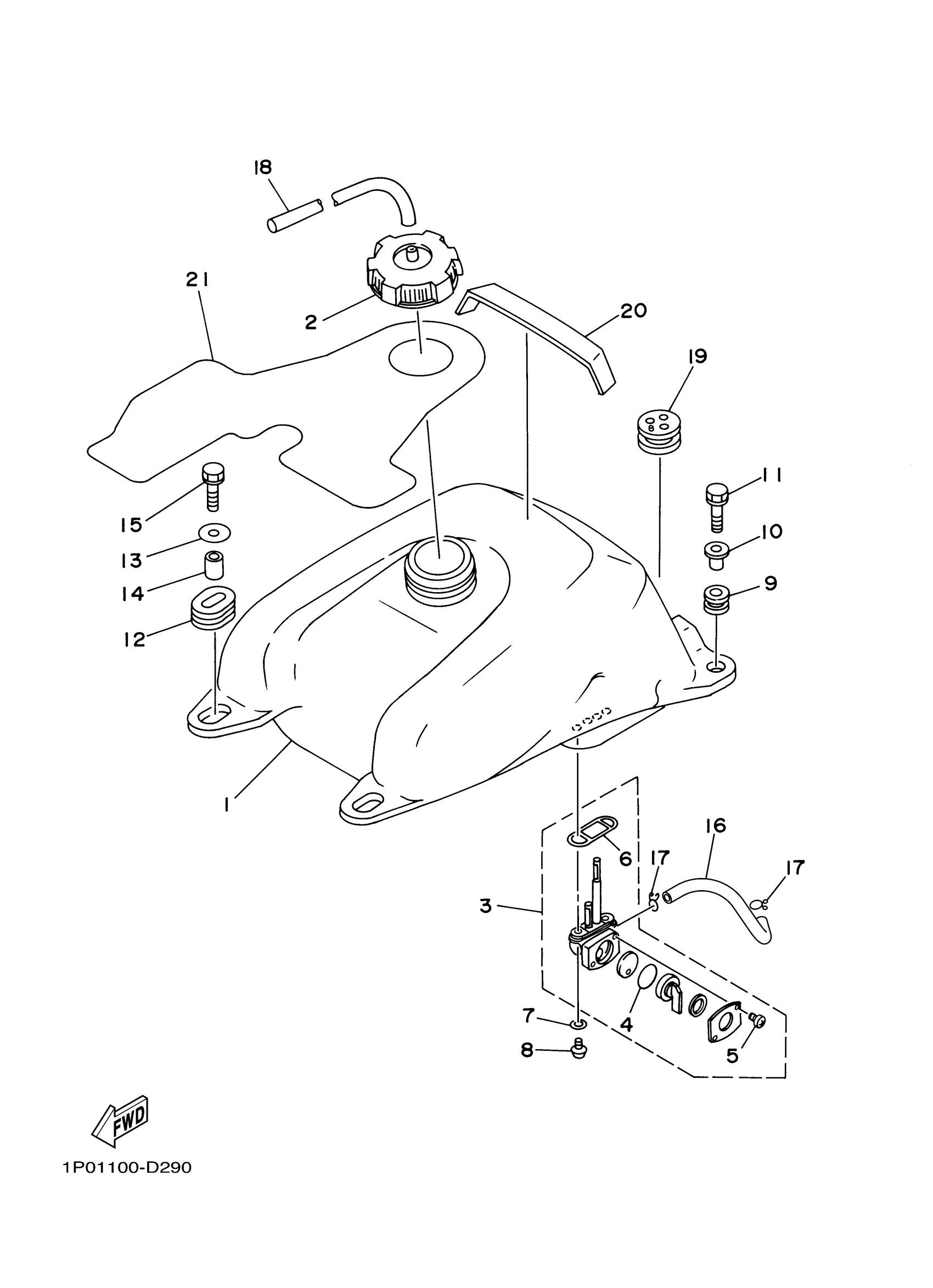

Yamaha YFM25BW (BIG BEAR 250) 1P09 2007 FUEL TANK Diagram

FUEL TANK COMP.

CAP ASSY

FUEL COCK ASSY 1

SEAL, COCK

SCREW, PAN HEAD(3AC)

O-RING

WASHER, PLATE(3MB)

SCREW 256241430000

GROMMET (4V1)

COLLAR (36R)

BOLT, WITH WASHER

GROMMET(38W)

WASHER, PLATE

COLLAR (1T2)

BOLT, WITH WASHER

PIPE, FUEL 1

CLIP

HOSE

GROMMET

DAMPER, LOCATING 1

DAMPER, PLATE 1
