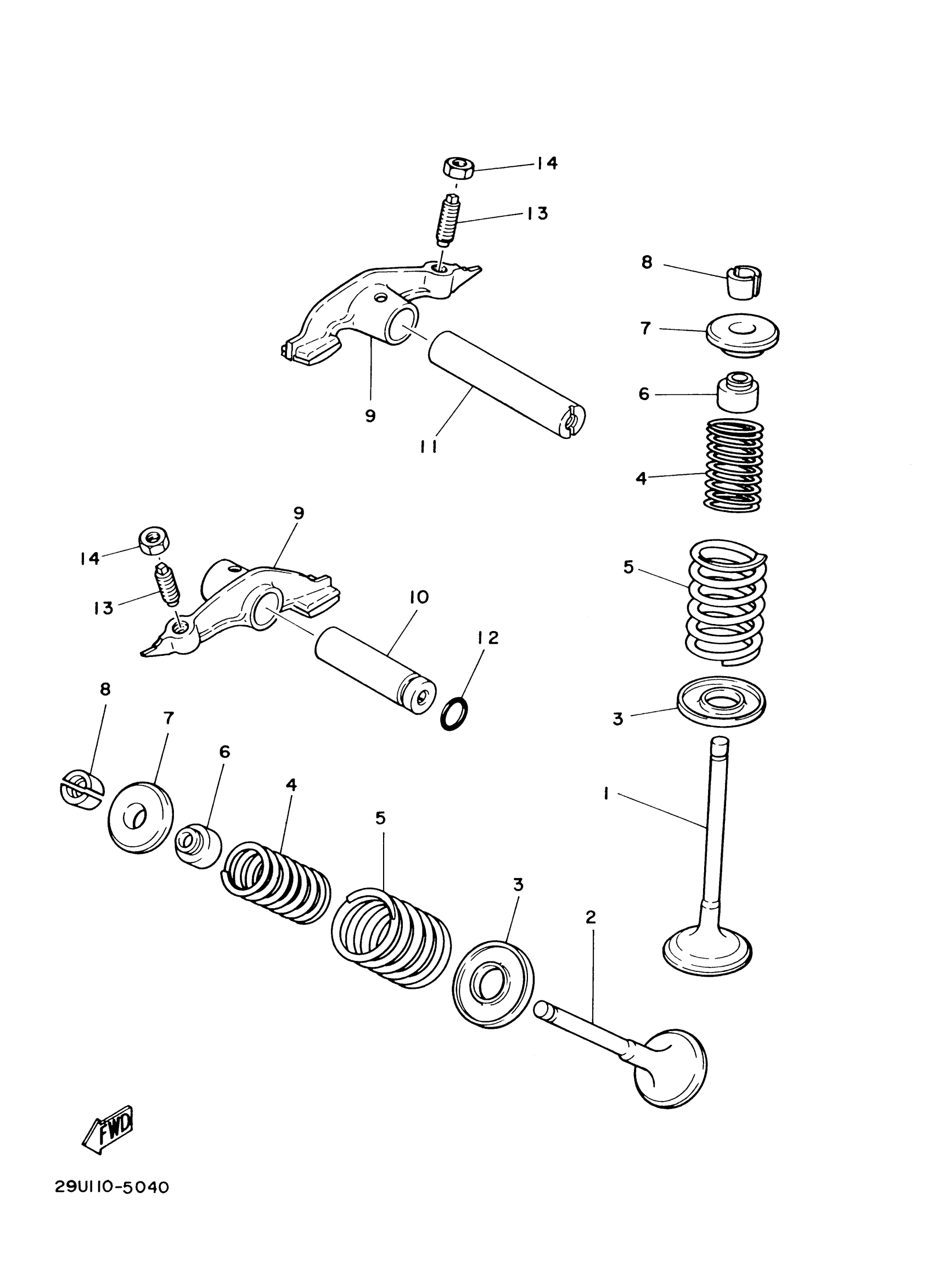

Yamaha YFM25BV (BRUIN 250 2WD) 1P05 2006 VALVE Diagram

VALVE, INTAKE

5XG-E2111-00-00

Unavailable

VALVE, EXHAUST

5XG-E2121-00-00

Unavailable

SEAT, VALVE SPRING

4G0-12116-01-00

$12.22

SPRING, VALVE INNER

4G0-12113-01-00

$13.33

SPRING, VALVE OUTER

4G0-12114-01-00

$18.20

SEAL, VALVE STEM

5H0-12119-00-00

$13.75

RETAINER, VALVE SPRING

4G0-12117-00-00

$19.08

COTTER, VALVE

4G0-12118-00-00

$6.29

ARM, VALVE ROCKER

5XG-E2151-00-00

Unavailable

SHAFT, ROCKER 2

3UR-E2156-00-00

Unavailable

SHAFT, ROCKER

3UR-E2146-00-00

Unavailable

O-RING (1J7)

93210-09350-00

$5.42

SCREW, VALVE ADJUSTING

2NX-12159-00-00

$9.55

NUT HEXAGON 371121580000

90170-06128-00

$5.75
