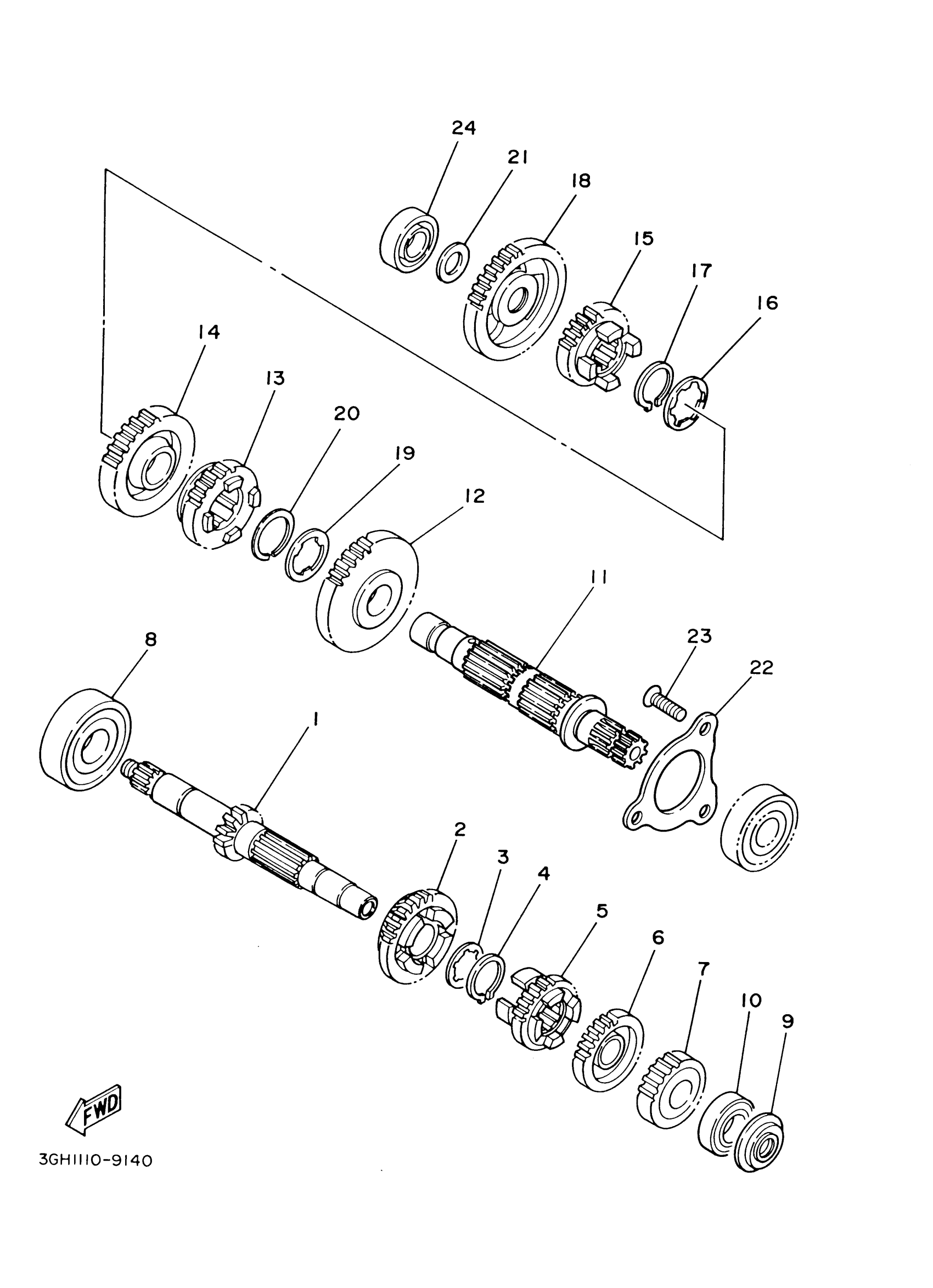

Yamaha YFM25BV (BRUIN 250 2WD) 1P05 2006 TRANSMISSION Diagram

#

Description
Price

1

MAIN AXLE ASSY

5XG-E7401-00-00

Unavailable

2

GEAR, 5TH PINION

24W-17151-02-00

Unavailable

3

WASHER(59V)

90209-17285-00

$9.49

4

CIRCLIP (525)

93410-20038-00

$3.76

5

GEAR, 3RD PINION

5XG-E7131-00-00

$10.49

6

GEAR, 4TH PINION (25T)

5XG-E7141-00-00

Unavailable

7

GEAR, 2ND PINION (19T)

5XG-E7121-00-00

Unavailable

8

BRG.

93306-204YK-00

Unavailable

9

OIL SEAL (5H0)

93101-15101-00

$11.49

10

BEARING

93306-202X2-00

Unavailable

11

DRIVE AXLE ASSY

5XG-E7402-00-00

Unavailable

12

GEAR, 2ND WHEEL (34T)

5XG-E7221-00-00

Unavailable

13

GEAR, 4TH WHEEL (26T)

1P0-E7241-00-00

Unavailable

14

GEAR, 3RD WHEEL (29T)

5XG-E7231-00-00

Unavailable

15

GEAR, 5TH WHEEL

4BD-17251-00-00

Unavailable

16

WASHER (5H0)

90209-18208-00

Unavailable

17

CIRCLIP (537)

93410-22039-00

Unavailable

18

GEAR, 1ST WHEEL

5XG-E7211-00-00

Unavailable

19

WASHER (30X)

90209-23241-00

Unavailable

20

CIRCLIP (30X)

93410-26067-00

Unavailable

21

WASHER, PLATE (4L0)

90201-154E8-00

Unavailable

22

PLATE, BEARING

5XG-E7558-01-00

Unavailable

23

SCREW

90149-08013-00

Unavailable

24

BEARING

93306-202X2-00

Unavailable
