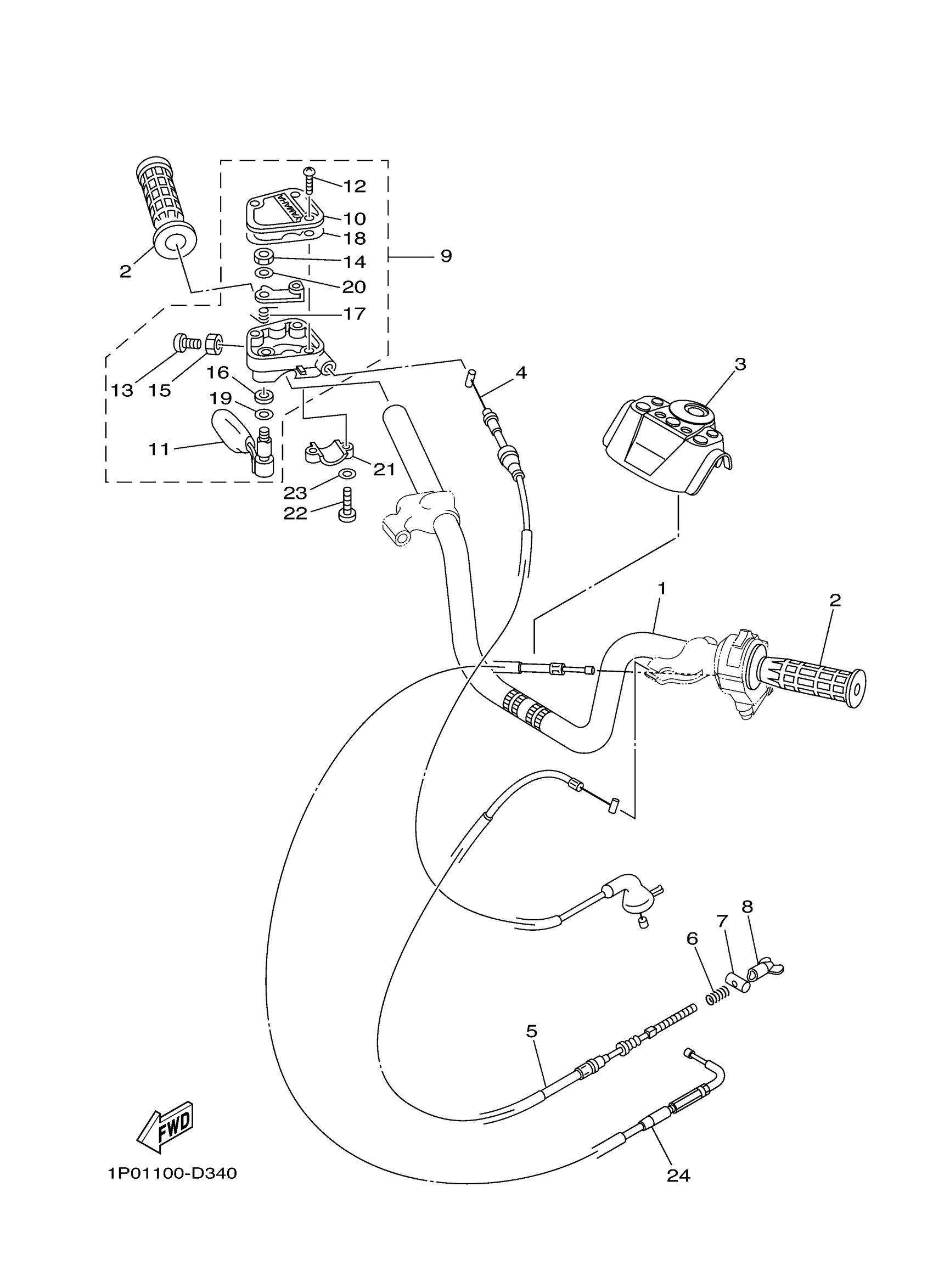

Yamaha YFM25BV (BRUIN 250 2WD) 1P05 2006 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

5FU-F6111-12-00

Unavailable

2

GRIP

5FU-F6241-10-00

$10.31

3

PROTECTOR, HANDLEBAR

1P0-F6124-00-00

Unavailable

4

CABLE, THROTTLE 1

1P0-26311-00-00

Unavailable

5

CABLE, BRAKE

1P0-26341-00-00

Unavailable

6

SPRING, COMPRESSION (29U)

90501-10782-00

$5.75

7

PIN 1562723700

90249-12008-00

$5.75

8

NUT, AJUSTING

20E-26343-00-00

$20.80

9

THROTTLE LEVER ASSY

4KB-26250-12-00

Unavailable

10

CAP, GEAR

4KB-2628F-10-00

$23.09

11

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

12

SCREW(3HE)

90149-04278-00

$0.73

13

SCREW, PAN HEAD

98517-05020-00

$1.26

14

NUT, U

95617-05100-00

$6.22

15

NUT, HEXAGON SMALL

95317-05700-00

$5.76

16

OIL SEAL (9X15X4-256)

93104-09025-00

Unavailable

17

SPRING

1NV-26304-00-00

Unavailable

18

GASKET

4KB-2628G-00-00

Unavailable

19

WASHER

1NV-26129-00-00

Unavailable

20

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

21

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

22

SCREW, PAN HEAD

98517-05020-00

$1.26

23

WASHER(1RW)

92907-05600-00

Unavailable

24

CABLE, STARTER 1

1P0-F6331-00-00

Unavailable
