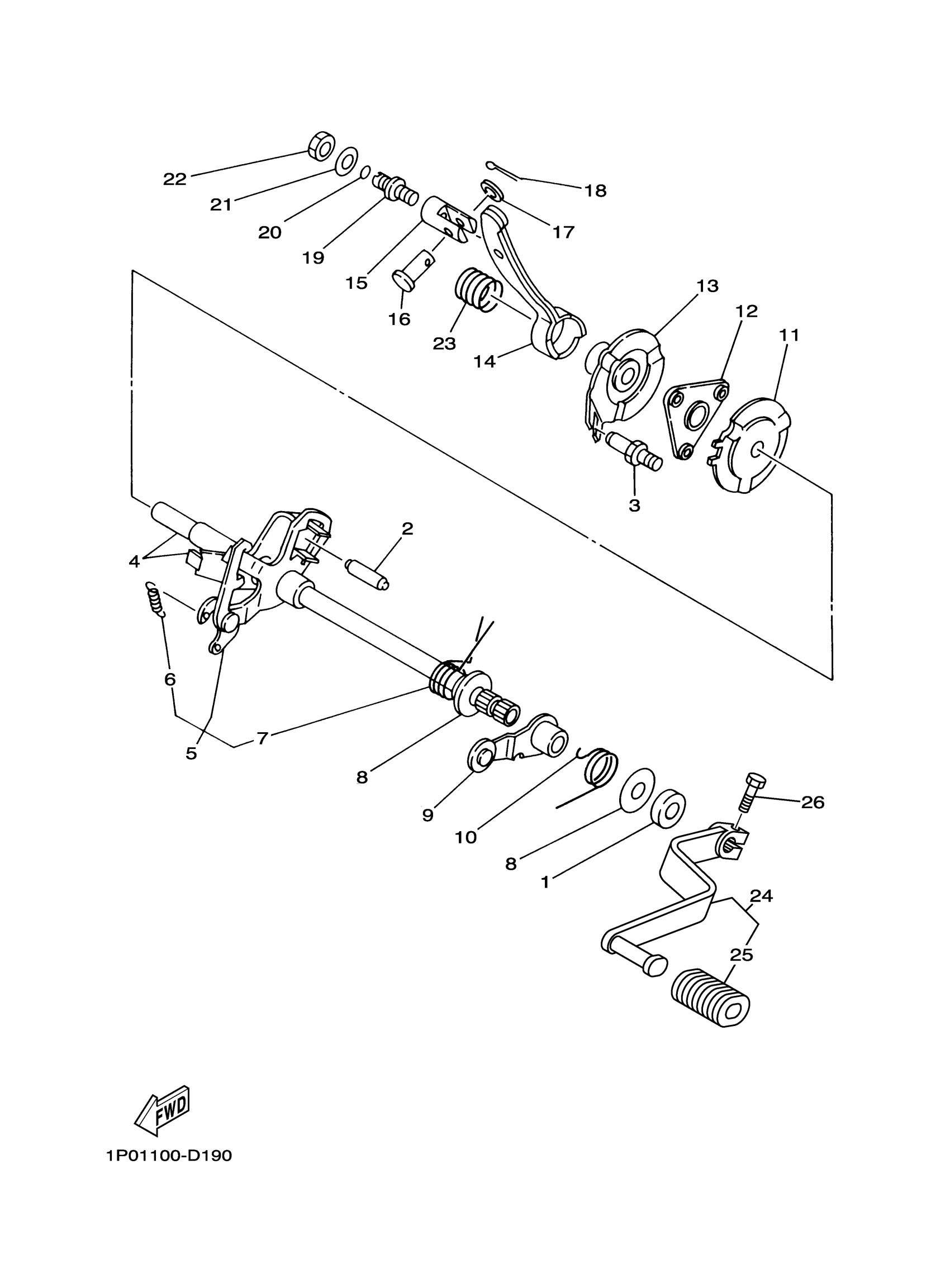

Yamaha YFM25BV (BRUIN 250 2WD) 1P05 2006 SHIFT SHAFT Diagram

#

Description
Price

1

OIL SEAL

93102-12803-00

Unavailable

2

PIN,DOWEL

93608-30839-00

$7.49

3

BOLT, STOPPER

5XG-E8177-00-00

Unavailable

4

SHAFT,SHIFT

3GH-18103-01-00

Unavailable

5

SHIFT LEVER ASSY

21V-18120-00-00

Unavailable

6

SPRING, TENSION (4H7)

90506-08227-00

$4.19

7

. SPRING, TORSION

90508-29570-00

Unavailable

8

WASHER

90201-12588-00

$7.49

9

STOPPER LEVER ASSY

5XG-E8140-00-00

Unavailable

10

SPRING, TORSION (15A)

90508-26539-00

$8.49

11

GUIDE

24W-18179-00-00

Unavailable

12

HOLDER, PAWL

21V-18181-00-00

Unavailable

13

GUIDE SHIFT COMP.

24W-18104-00-00

$77.99

14

ARM, SHIFT 3

5XG-E817A-00-00

$7.49

15

PIN, LEVER

5XG-E8126-00-00

Unavailable

16

PIN, JOINT

5XG-E8118-00-00

Unavailable

17

WASHER(6TA)

92907-08600-00

Unavailable

18

PIN, COTTER

91490-16020-00

Unavailable

19

STOPPER, SCREW

5XG-E8127-00-00

Unavailable

20

O-RING (21V)

93210-07590-00

Unavailable

21

WASHER (1T1)

90201-08649-00

Unavailable

22

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

23

SPRING, COMPRESSION

90501-16768-00

Unavailable

24

SHIFT PEDAL ASSY

1P0-18110-00-00

Unavailable

25

COVER, SHIFT PEDAL

22N-18113-00-00

Unavailable

26

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

Unavailable
