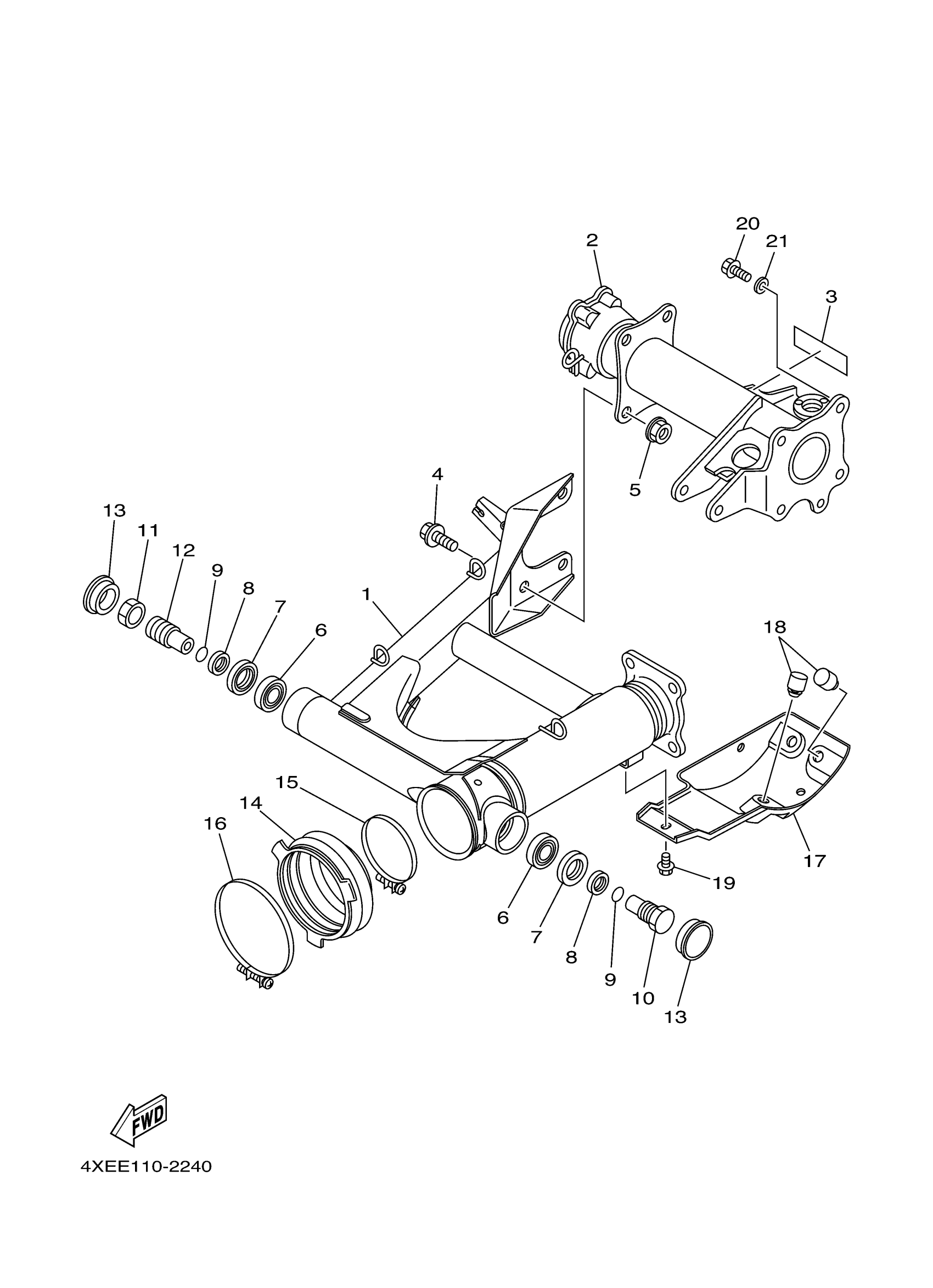

Yamaha YFM25BV (BRUIN 250 2WD) 1P05 2006 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

4XE-F2110-30-00

Unavailable

2

REAR AXLE HOUSING

1P0-G6540-00-00

Unavailable

3

LABEL 7

4XE-F151K-00-00

Unavailable

4

BOLT, FLANGE

9581P-12025-00

Unavailable

5

NUT(3GG)

90179-12588-00

$7.49

6

BEARING

93332-000Y3-00

$41.99

7

OIL SEAL (25X40X5-101)

93102-25017-00

$5.60

8

COLLAR

90387-1711G-00

Unavailable

9

O-RING(53L)

93210-17718-00

$7.49

10

SHAFT, PIVOT 2

4XE-F214H-01-00

Unavailable

11

NUT

90170-22807-00

Unavailable

12

SHAFT, PIVOT 2

4XE-F214H-01-00

Unavailable

13

PLUG

90338-34264-00

$10.49

14

BOOT, RUBBER

29U-22189-00-00

Unavailable

15

CLAMP,HOSE

90460-85135-00

Unavailable

16

CLAMP, HOSE (29U)

90460-99228-00

Unavailable

17

COVER

4XE-F219X-01-00

Unavailable

18

STOPPER, MAIN STAND

109-27114-00-00

Unavailable

19

BOLT, FLANGE

95817-08012-00

Unavailable

20

BOLT, FLANGE

90105-10893-00

Unavailable

21

WASHER, PLATE(47X)

90201-101J1-00

Unavailable
