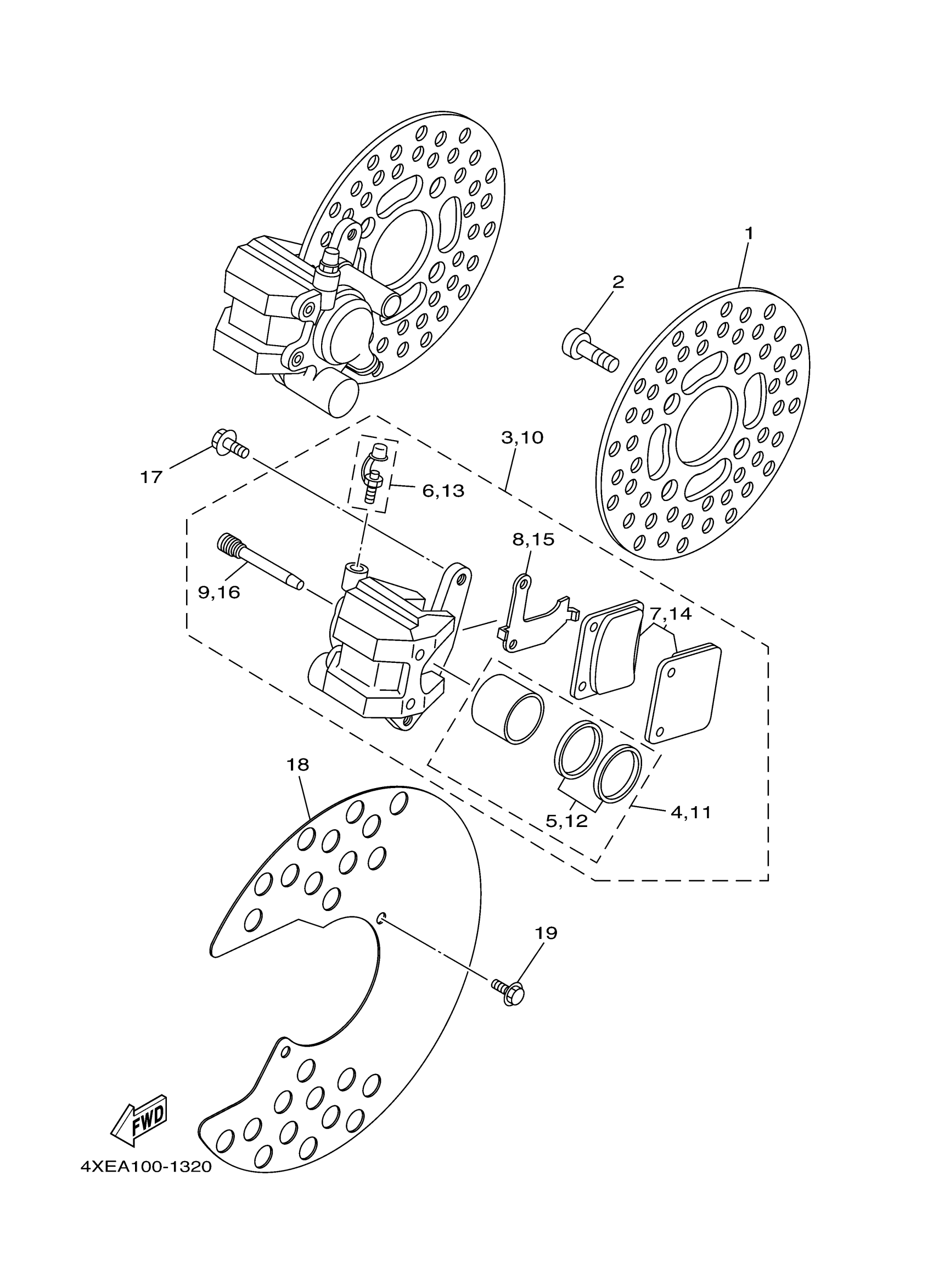

Yamaha YFM25BV (BRUIN 250 2WD) 1P05 2006 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

4XE-F582T-11-00

Unavailable

2

BOLT

90109-08087-00

$2.47

3

CALIPER ASSY (LEFT)

3GD-2580T-01-00

$242.40

4

PISTON ASSY, CALIPER

3GD-W0057-00-00

$40.75

5

CALIPER SEAL KIT

3GD-W0047-00-00

$12.22

6

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

7

BRAKE PAD KIT

3GD-W0045-01-00

$31.85

8

SHIM, CALIPER

3GD-25827-00-00

Unavailable

9

PIN, PAD

3GD-25933-00-00

$21.38

10

CALIPER ASSY (RIGHT)

3GD-2580U-01-00

$242.40

11

PISTON ASSY, CALIPER

3GD-W0057-00-00

$40.75

12

CALIPER SEAL KIT

3GD-W0047-00-00

$12.22

13

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

14

BRAKE PAD KIT

3GD-W0045-01-00

$31.85

15

SHIM, CALIPER

3GD-25828-00-00

$3.54

16

PIN, PAD

3GD-25933-00-00

$21.38

17

BOLT, FLANGE

90105-08161-00

Unavailable

18

RING, WHEEL 1

4XE-F514A-00-00

Unavailable

19

BOLT, FLANGE

95817-06012-00

Unavailable
