Description

Price

1

FRAME COMP.

1P0-F1110-01-00

Unavailable

2

STAY, ENGINE 2

4XE-F1315-01-00

Unavailable

3

BOLT, FLANGE

95817-08012-00

$5.49

4

BOLT, FLANGE

90105-088A7-00

$4.29

5

BOLT, FLANGE

90105-088A8-00

Unavailable

6

BOLT, FLANGE

90105-088A9-00

$13.99

7

NUT, SELF-LOCKING

90185-08017-00

$7.49

8

BUSH, SOLID (J22)

90381-15040-00

$29.99

9

O-RING (22U)

93210-15566-00

$7.49

10

NIPPLE, GREASE

93700-06M03-00

Unavailable

11

. CAP, MAIN PIPE

5FU-F111A-00-00

Unavailable

12

ARM

1P0-F1585-00-00

Unavailable

13

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

14

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

15

BRACKET, SWITCH

1P0-F1453-00-00

Unavailable

16

BOLT, FLANGE

95817-06012-00

Unavailable

17

TOOL KIT

5ND-F8100-00-00

Unavailable

18

GAUGE, AIR

1NV-2811A-01-00

Unavailable

19

O-RING (583 OIL CLEANER)

93210-64297-00

Unavailable

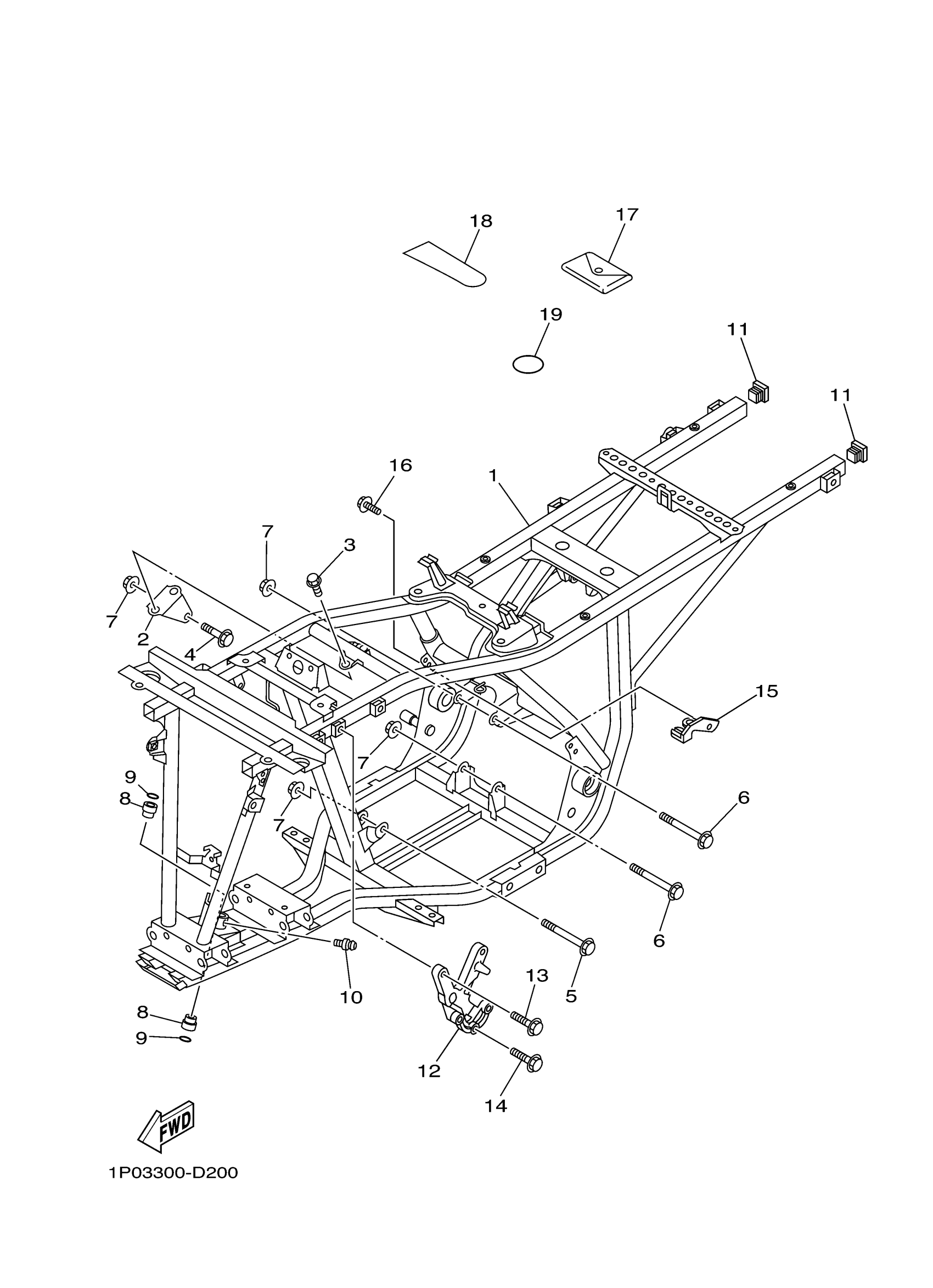

Yamaha YFM25BV (BRUIN 250 2WD) 1P05 2006 FRAME Diagram

FRAME COMP.

STAY, ENGINE 2

BOLT, FLANGE

BOLT, FLANGE

BOLT, FLANGE

BOLT, FLANGE

NUT, SELF-LOCKING

BUSH, SOLID (J22)

O-RING (22U)

NIPPLE, GREASE

. CAP, MAIN PIPE

ARM

BOLT, FLANGE(8AB)

BOLT, FLANGE(8AB)

BRACKET, SWITCH

BOLT, FLANGE

TOOL KIT

GAUGE, AIR

O-RING (583 OIL CLEANER)
