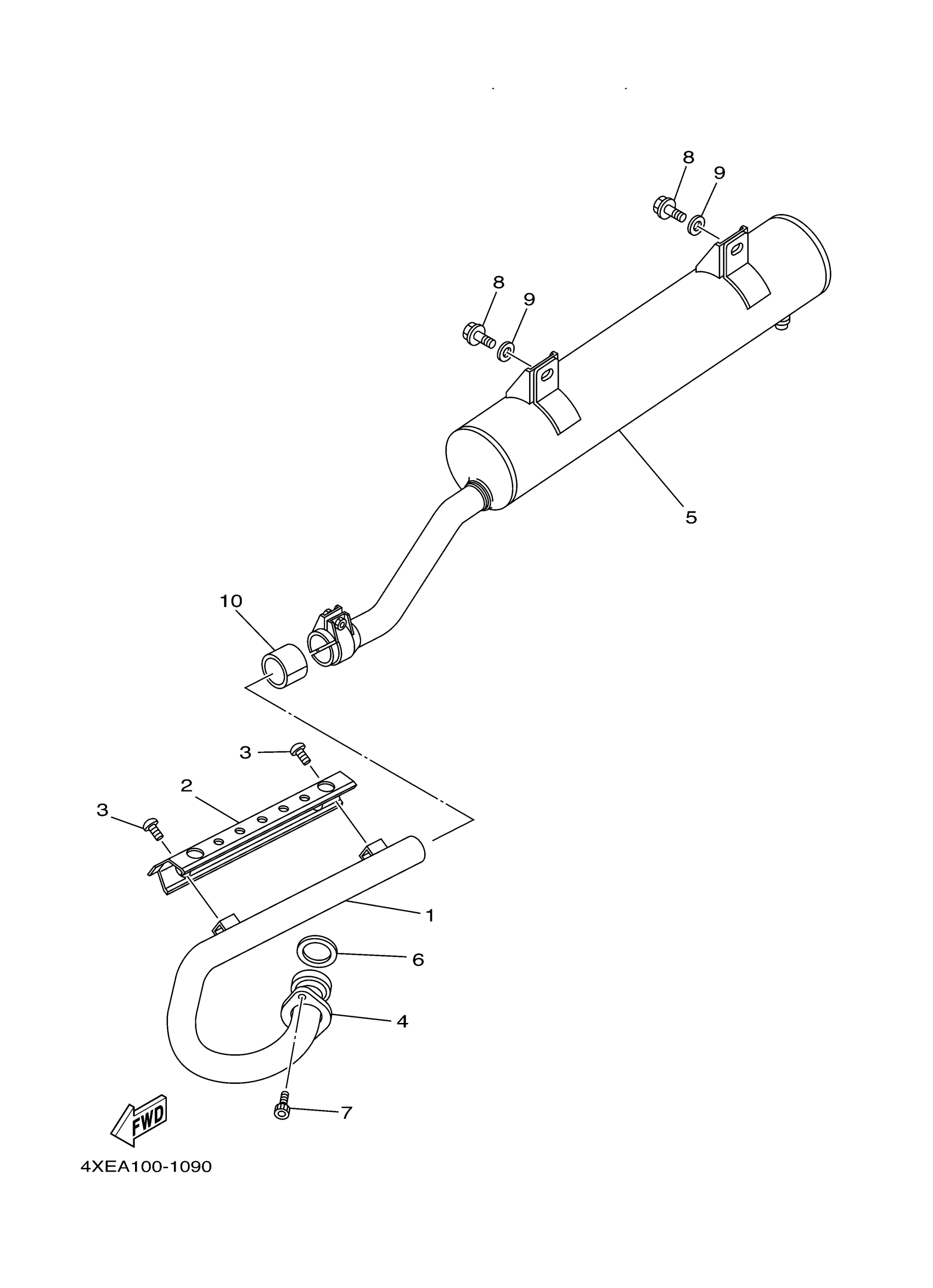

Yamaha YFM25BV (BRUIN 250 2WD) 1P05 2006 EXHAUST Diagram

#

Description
Price

1

PIPE,EXHAUST L

1P0-E4611-00-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

4XE-E4628-00-00

Unavailable

3

SCREW

4XE-E4767-10-00

Unavailable

4

NUT, RING

5H0-14612-01-00

$13.04

5

MUFFLER ASSY 1

1P0-E4710-00-00

Unavailable

6

GASKET, EXHAUST PIPE

4BE-14613-00-00

$8.66

7

BOLT,SOCKET HEAD

91314-06020-00

$1.91

8

BOLT, FLANGE

90105-10801-00

Unavailable

9

WASHER, PLATE(47X)

90201-101J1-00

$5.75

10

GASKET, MUFFLER

3YF-14714-00-00

$27.78
