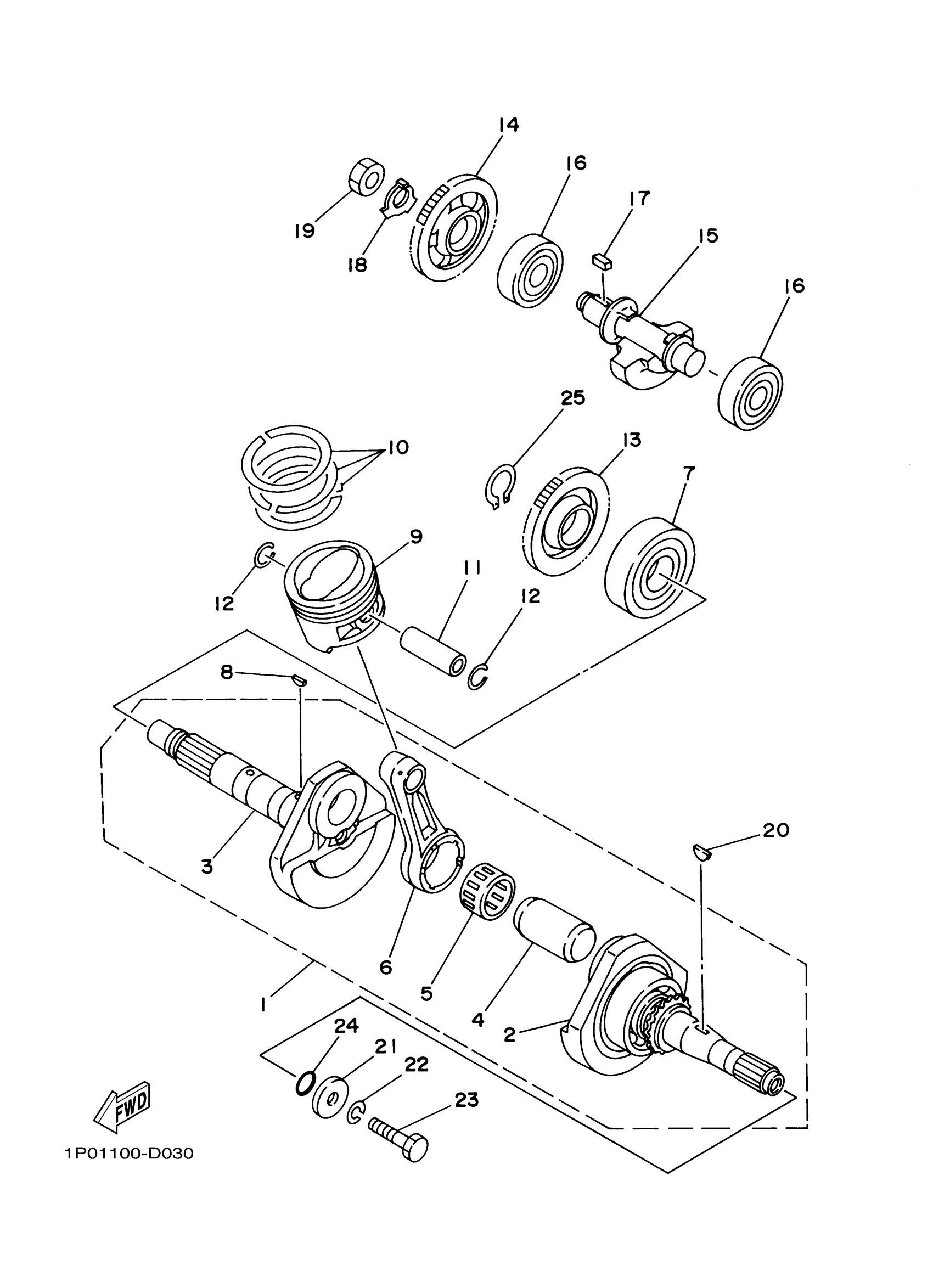

Yamaha YFM25BV (BRUIN 250 2WD) 1P05 2006 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

5XG-E1400-00-00

Unavailable

2

CRANKSHAFT ASSY

5XG-E1400-00-00

Unavailable

3

CRANK 2

5XG-E1422-00-00

Unavailable

4

PIN, CRANK 1

5H0-11681-00-00

Unavailable

5

BEARING, CYLINDRICAL (5H0)

93310-530J3-00

$62.99

6

. ROD, CONNECTING

5XG-E1651-00-00

Unavailable

7

BRG,R-B 6306 72MM 351G KY

93306-30615-00

$83.99

8

KEY WOODRUFF 146115450000

90280-03017-00

$7.49

9

PISTON (STD)

4BD-11631-00-Y0

Unavailable

9

PISTON (0.50MM O/S)

4BD-11636-00-00

Unavailable

9

PISTON (1.00MM O/S)

4BD-11638-00-00

Unavailable

10

PISTON RING SET (STD)

5XG-E1603-00-00

Unavailable

10

PISTON RING SET (0.50MM O/S)

5XG-E1605-00-00

Unavailable

10

PISTON RING SET (1.00MM O/S)

5XG-E1607-00-00

Unavailable

11

PIN, PISTON

5XG-E1633-00-00

Unavailable

12

CIRCLIP (1L9)

93450-17044-00

Unavailable

13

GEAR, DRIVE

5XG-E1536-00-00

Unavailable

14

GEAR, BALANCE WEIGHT

5XG-E1531-00-00

Unavailable

15

WEIGHT 1

5XG-E1454-00-00

Unavailable

16

BEARING

93306-30443-00

Unavailable

17

KEY, STRAIGHT(34K)

90282-05065-00

Unavailable

18

WASHER, LOCK (15Y)

90215-14205-00

Unavailable

19

NUT

90170-14839-00

Unavailable

20

KEY, WOODRUFF

90280-05001-00

Unavailable

21

WASHER, PLATE

90201-10058-00

Unavailable

22

WASHER(6TA)

92907-10100-00

Unavailable

23

BOLT (21V)

90101-10568-00

Unavailable

24

O-RING

93210-16800-00

Unavailable

25

CIRCLIP

99009-26400-00

Unavailable
