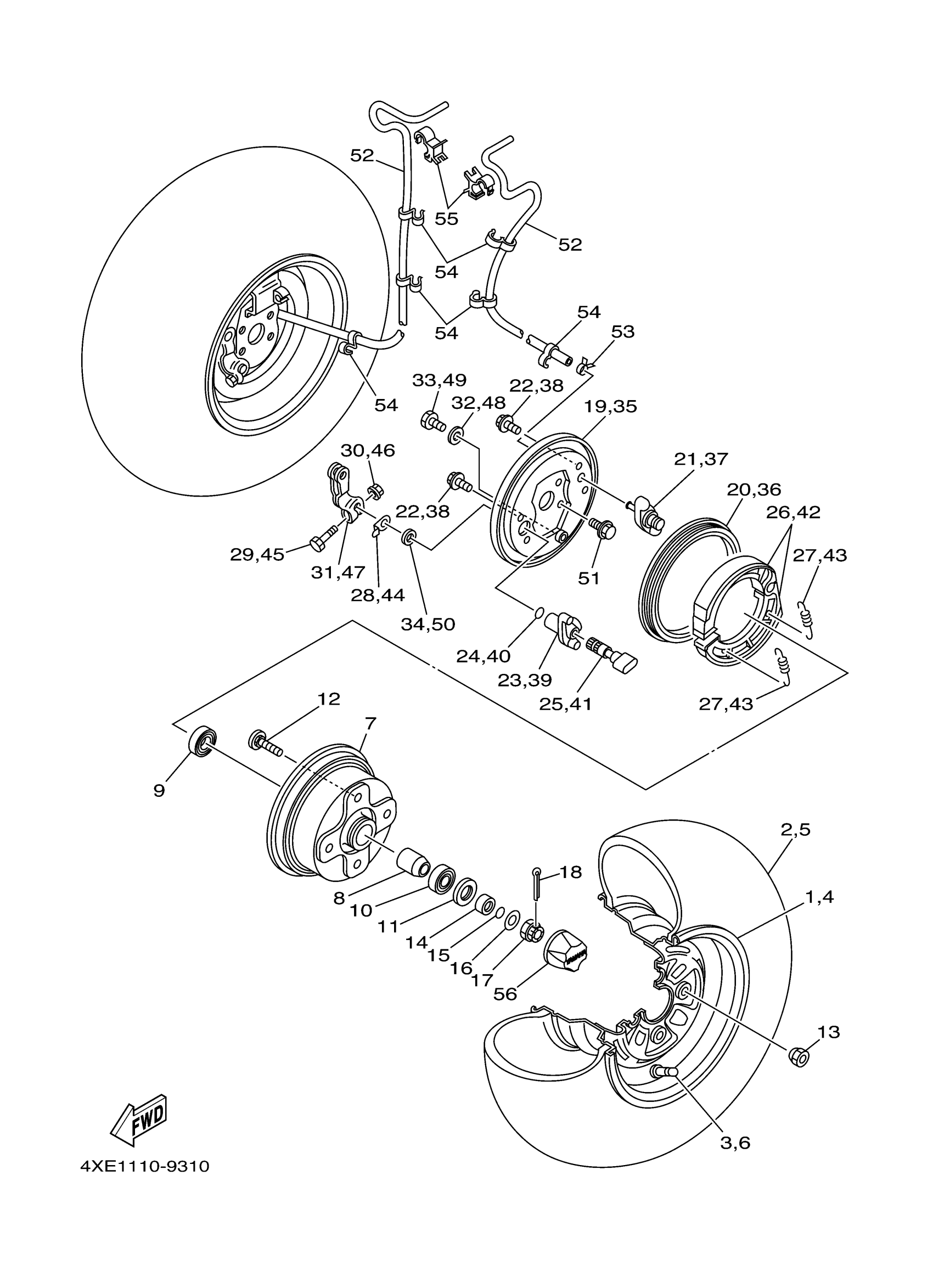

Yamaha YFM250XMC (BEAR TRACKER 2WD) 4XE6 2000 FRONT WHEEL Diagram
#
1
FRONT RIM (LT SILVER 10 X 5.5
4XE-F5180-09-00
Unavailable
2
TIRE (AT22X7-10 KT701)
94107-102Y4-00
Unavailable
3
VALVE, RIM
93900-00810-00
Unavailable
4
FRONT RIM (LT SILVER 10 X 5.5
4XE-F5180-09-00
Unavailable
5
TIRE (AT22X7-10 KT701)
94107-102Y4-00
Unavailable
6
VALVE, RIM
93900-00810-00
Unavailable
7
HUB, FRONT
4XE-F5111-00-00
Unavailable
8
SPACER, BEARING
4XE-25117-00-00
Unavailable
9
BEARING
93306-072Y0-00
Unavailable
10
BEARING
93306-203X7-00
Unavailable
11
OIL SEAL(36R)
93102-25311-00
Unavailable
12
BOLT, SERRATION
90114-10802-00
Unavailable
14
FLANGE, SPACER 1
4XE-25115-00-00
Unavailable
16
WASHER, PLATE
90201-14816-00
Unavailable
17
NUT, CASTLE
90171-14817-00
Unavailable
18
PIN, COTTER
91401-30025-00
Unavailable
19
BACKING PLATE ASSEMBLY 2
4XE-F7290-00-00
Unavailable
20
SEAL, PLATE DUST
4XE-F5129-00-00
Unavailable
21
ANCHOR BODY COMP.
4XE-F7206-00-00
Unavailable
22
BOLT, FLANGE
9581N-06012-00
Unavailable
23
BRACKET, CAM
4XE-F512E-00-00
Unavailable
24
SEAL, DUST
4XE-F5816-00-00
Unavailable
25
CAMSHAFT
4XE-F5151-00-00
Unavailable
26
BRAKE SHOE SET
4BD-W2536-01-00
Unavailable
27
SPRING, RETURN
4XE-F5133-00-00
Unavailable
28
PLATE, INDICATOR
4XE-F513A-00-00
Unavailable
29
BOLT, FITTING
4XE-F5833-00-00
Unavailable
30
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
31
LEVER, CAMSHAFT 1
4XE-F5155-00-00
Unavailable
32
GASKET
4XE-F5898-00-00
Unavailable
33
BOLT, CALIPER
4XE-F5818-00-00
Unavailable
34
SHIM, CAMSHAFT
4XE-F5153-00-00
Unavailable
35
BACKING PLATE ASSEMBLY 1
4XE-F7280-00-00
Unavailable
36
SEAL, PLATE DUST
4XE-F5129-00-00
Unavailable
37
ANCHOR BODY COMP.
4XE-F7206-00-00
Unavailable
38
BOLT, FLANGE
9581N-06012-00
Unavailable
39
BRACKET, CAM
4XE-F512E-00-00
Unavailable
40
SEAL, DUST
4XE-F5816-00-00
Unavailable
41
CAMSHAFT
4XE-F5151-00-00
Unavailable
42
BRAKE SHOE SET
4BD-W2536-01-00
Unavailable
43
SPRING, RETURN
4XE-F5133-00-00
Unavailable
44
PLATE, INDICATOR
4XE-F513A-00-00
Unavailable
45
BOLT, FITTING
4XE-F5833-00-00
Unavailable
46
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
47
LEVER, CAMSHAFT 1
4XE-F5155-00-00
Unavailable
48
GASKET
4XE-F5898-00-00
Unavailable
49
BOLT, CALIPER
4XE-F5818-00-00
Unavailable
50
SHIM, CAMSHAFT
4XE-F5153-00-00
Unavailable
51
BOLT, WASHER BASED
90105-08891-00
Unavailable
52
HOSE (L1700)
90445-070G6-00
Unavailable
53
CLIP(42X)
90467-07093-00
Unavailable
54
CLIP (867)
90468-15020-00
Unavailable
55
CLAMP
90464-08834-00
Unavailable
56
CAP, WHEEL
52H-2512A-00-00
Unavailable
