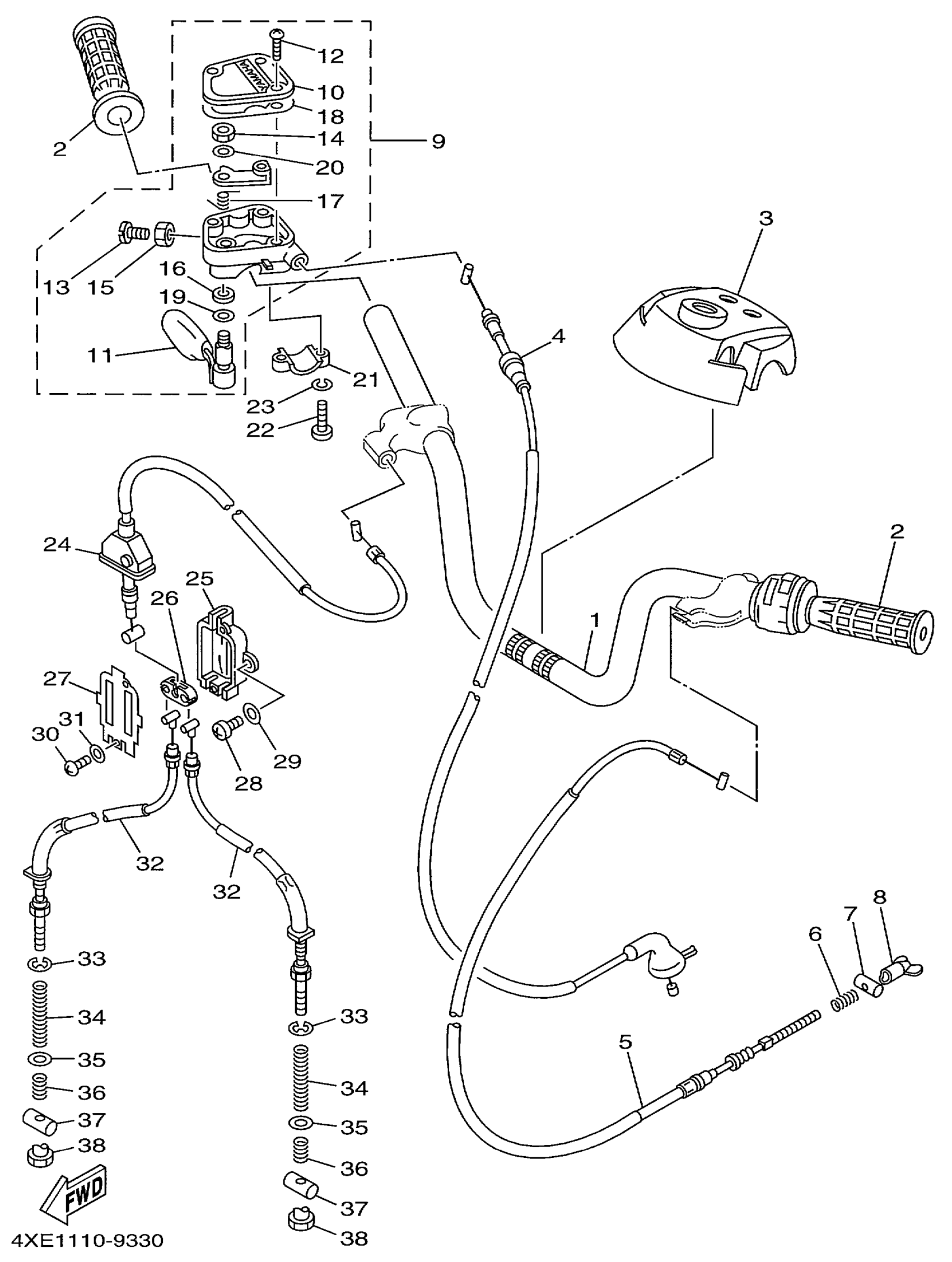

Yamaha YFM250XLC (BEAR TRACKER 2WD) 4XE3 1999 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

4XE-F6111-10-00

Unavailable

2

GRIP (L.H)

3GB-26241-00-00

$21.99

3

PROTECTOR,HANDLEBAR

4XE-F6124-10-00

Unavailable

4

CABLE, THROTTLE 1

4KB-26311-11-00

$57.99

5

CABLE, BRAKE

4XE-26341-00-00

$40.99

6

SPRING, COMPRESSION (29U)

90501-10782-00

$8.49

7

PIN 1562723700

90249-12008-00

$8.49

8

NUT, AJUSTING

20E-26343-00-00

$27.99

9

THROTTLE LEVER ASSY

4KB-26250-12-00

$122.99

10

. CAP, GEAR

4KB-2628F-00-00

Unavailable

11

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

12

SCREW(3HE)

90149-04278-00

$2.39

13

SCREW, PAN HEAD

98517-05020-00

$4.25

14

NUT, U

95617-05100-00

$9.49

15

NUT, HEXAGON SMALL

95317-05700-00

$8.49

16

OIL SEAL (9X15X4-256)

93104-09025-00

Unavailable

17

SPRING

1NV-26304-00-00

Unavailable

18

GASKET

4KB-2628G-00-00

Unavailable

19

WASHER

1NV-26129-00-00

Unavailable

20

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

21

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

22

SCREW, PAN HEAD

98517-05020-00

$4.25

23

WASHER(3SX)

92907-05100-00

Unavailable

24

CABLE, BRAKE 4

4BD-26373-01-00

Unavailable

25

HOUSING, BRAKE LINK

52H-26371-00-00

Unavailable

26

JOINT, CABLE

52H-26347-01-00

Unavailable

27

PLATE

52H-2631G-00-00

Unavailable

28

SCREW, PAN HEAD(3AC)

98517-03008-00

Unavailable

29

WASHER(3SX)

92907-03600-00

Unavailable

30

BOLT(4TW)

97017-05016-00

Unavailable

31

WASHER(1RW)

92907-05600-00

Unavailable

32

CABLE, BRAKE

4BD-26361-01-00

Unavailable

33

CIRCLIP(53L)

99001-06600-00

Unavailable

34

SPRING, COMPRESSION(52H)

90501-123A0-00

Unavailable

35

WASHER(52H)

90209-06265-00

Unavailable

36

SPRING, COMPRESSION (29U)

90501-10782-00

$8.49

37

PIN 1562723700

90249-12008-00

$8.49

38

NUT (25K)

90179-06411-00

Unavailable
