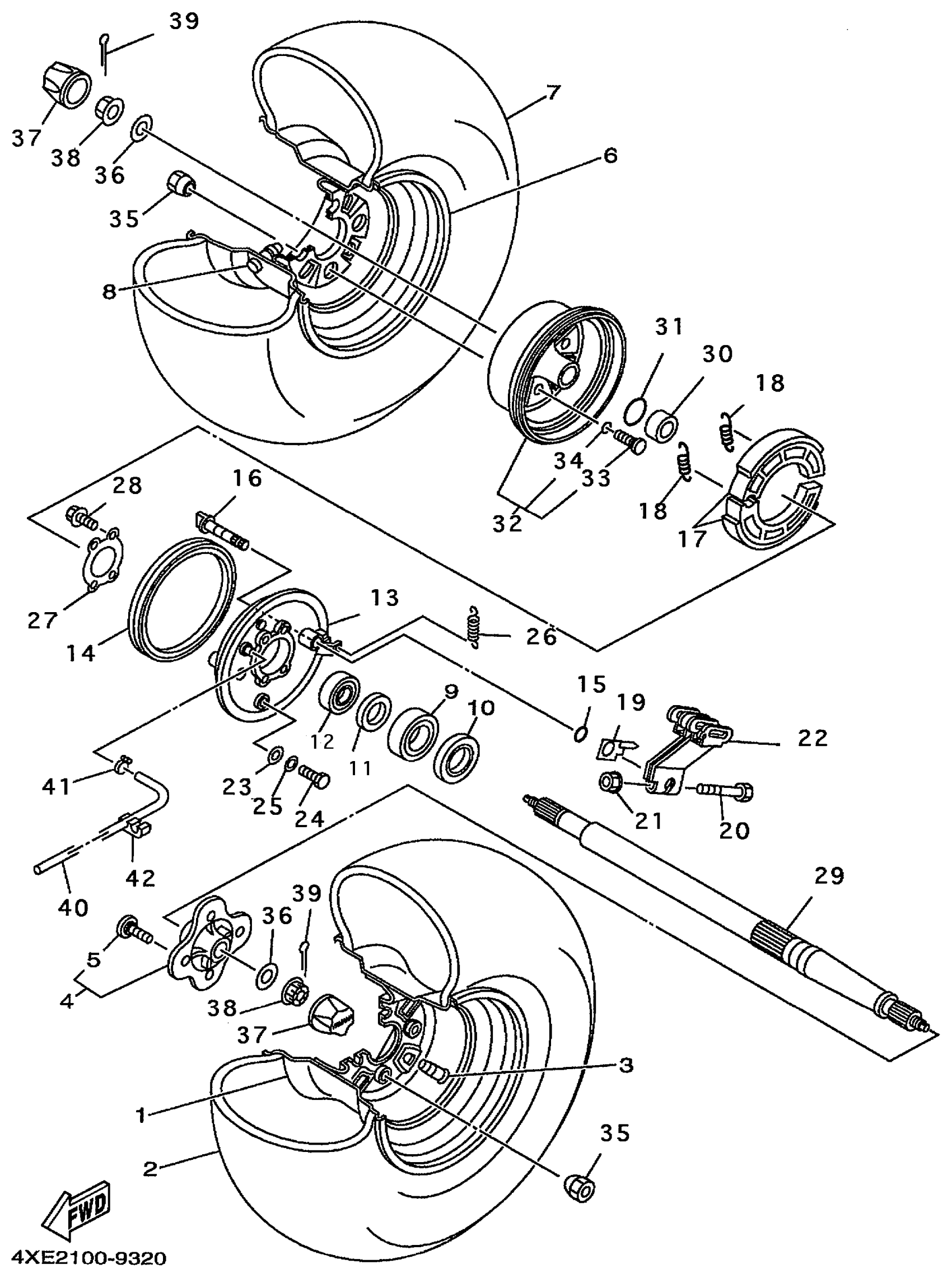

Yamaha YFM250XLC (BEAR TRACKER 2WD) 4XE3 1999 REAR WHEEL Diagram
#
1
REAR RIM LIGHT SILVER 10 X 8.0
4XE-F5390-01-00
Unavailable
2
TIRE (AT 22X10-10)
94110-102Y3-00
Unavailable
2
TIRE (AT 22X10-10)
94110-102Y3-00
Unavailable
3
VALVE, RIM
93900-00810-00
Unavailable
6
REAR RIM LIGHT SILVER 10 X 8.0
4XE-F5390-01-00
Unavailable
7
TIRE (AT 22X10-10)
94110-102Y3-00
Unavailable
7
TIRE (AT 22X10-10)
94110-102Y3-00
Unavailable
8
VALVE, RIM
93900-00810-00
Unavailable
9
BEARING
93306-008Y1-00
Unavailable
10
OIL SEAL(3HN)
93106-42037-00
Unavailable
13
PLATE, BRAKE SHOE
4XE-F5321-00-00
Unavailable
14
SEAL, PLATE DUST
4XE-F5129-00-00
Unavailable
15
SEAL, DUST
4XE-F5816-00-00
Unavailable
16
CAMSHAFT
4XE-F5351-00-00
Unavailable
17
BRAKE SHOE SET
4BD-W2536-01-00
Unavailable
18
SPRING, RETURN
4XE-F5133-00-00
Unavailable
19
PLATE, INDICATOR
4XE-F513A-00-00
Unavailable
20
BOLT, FITTING
4XE-F5833-00-00
Unavailable
21
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
22
LEVER, CAMSHAFT
4XE-F5355-00-00
Unavailable
23
GASKET
4XE-F5898-00-00
Unavailable
24
BOLT, CALIPER
4XE-F5818-00-00
Unavailable
25
SHIM, CAMSHAFT
4XE-F5153-00-00
Unavailable
26
SPRING, TENSION(2NL)
90506-12403-00
Unavailable
27
RETAINER
4XE-G6513-00-00
Unavailable
28
BOLT, FLANGE
90105-088A4-00
Unavailable
29
AXLE,WHEEL
4XE-F5381-01-00
Unavailable
30
COLLAR(2NL)
90387-284T0-00
Unavailable
31
O-RING(22F)
93210-26662-00
Unavailable
32
HUB ASSY
4XE-F5310-00-00
Unavailable
33
BOLT, SERRATION
90114-10802-00
Unavailable
34
O-RING (328)
93210-12131-00
Unavailable
35
NUT(2HR)
90179-10540-00
Unavailable
36
WASHER, PLATE
90201-16804-00
Unavailable
37
CAP, WHEEL
52H-2512A-00-00
Unavailable
38
NUT, CASTLE
90171-16001-00
Unavailable
39
PIN, COTTER
91490-30030-00
Unavailable
40
HOSE (L1050)
90445-072G8-00
Unavailable
41
CLIP(42X)
90467-07093-00
Unavailable
42
CLIP (867)
90468-15020-00
Unavailable
