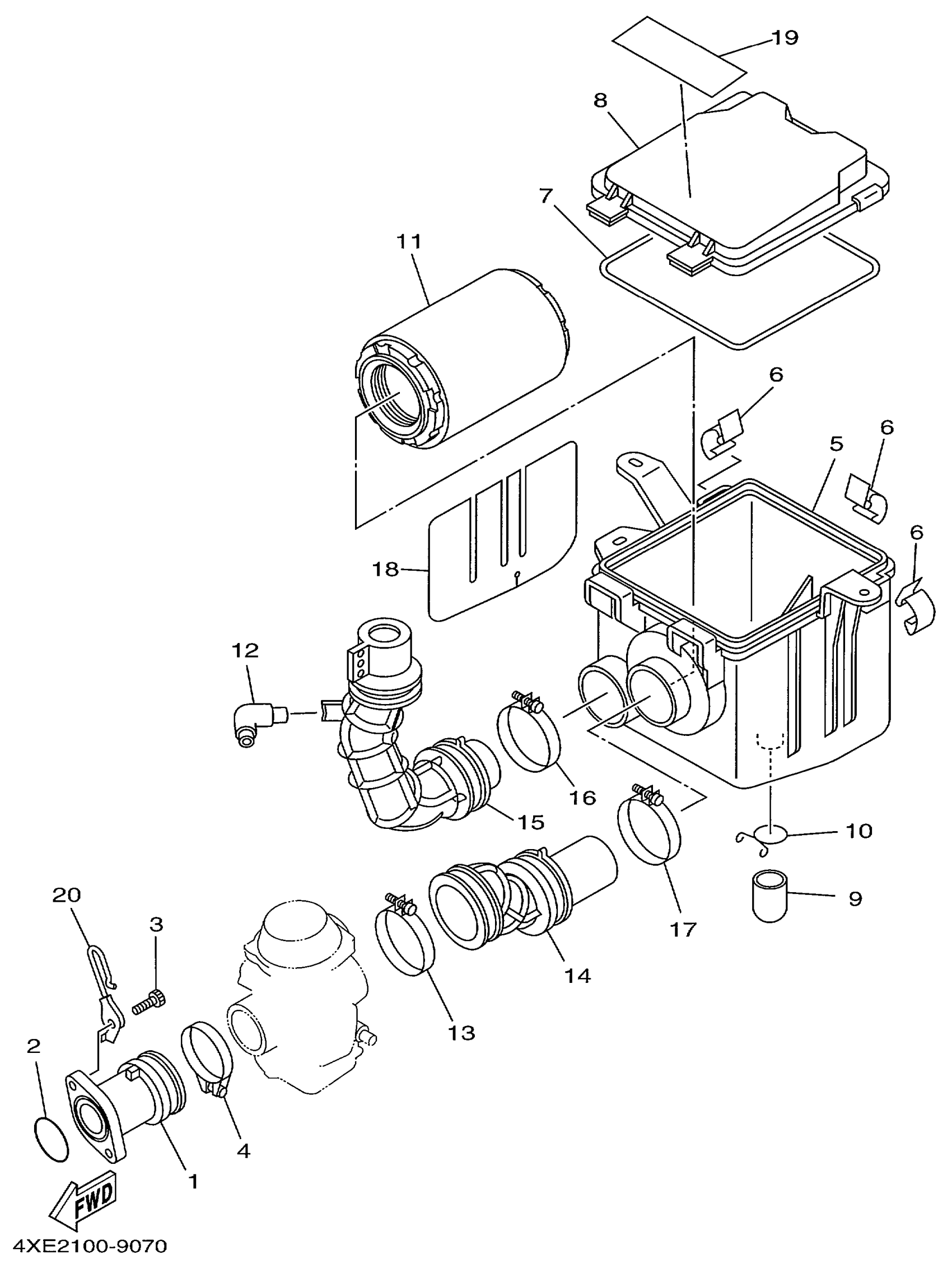

Yamaha YFM250XLC (BEAR TRACKER 2WD) 4XE3 1999 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

4XE-13586-00-00

$85.99

2

O-RING (16G)

93210-35537-00

$14.49

3

BOLT,SOCKET

91317-06020-00

Unavailable

4

HOSE CLAMP ASSY

90450-49001-00

$16.99

5

CASE, AIR CLEANER

1P0-E4411-10-00

$48.99

6

CLIP, CAP FITTING

5ND-E4424-00-00

Unavailable

7

SEAL

1P0-E4462-00-00

$17.49

8

CAP, CLEANER CASE

1P0-E4412-10-00

Unavailable

9

PIPE, DRAIN

1P0-E4769-00-00

$5.49

10

CLIP, DRAIN CLEANE

1P0-E4438-00-00

Unavailable

11

ELEMENT ASSY, AIR

1P0-E4450-00-00

$35.99

12

PIPE

31A-14419-00-00

$7.99

13

HOSE CLAMP ASSY

90450-56001-00

$17.99

14

JOINT, AIR CLEANER 1

4XE-E4453-00-00

Unavailable

15

DUCT

4XE-E4437-00-00

Unavailable

16

HOSE CLAMP ASSY

90450-58002-00

Unavailable

17

HOSE CLAMP ASSY

90450-56001-00

$17.99

18

PROTECTOR

4XE-1442F-00-00

Unavailable

19

PLATE, EPA 3(CALIFORNIA)

4XE-2179T-00-00

Unavailable

20

GUIDE

4BD-2631F-00-00

Unavailable
