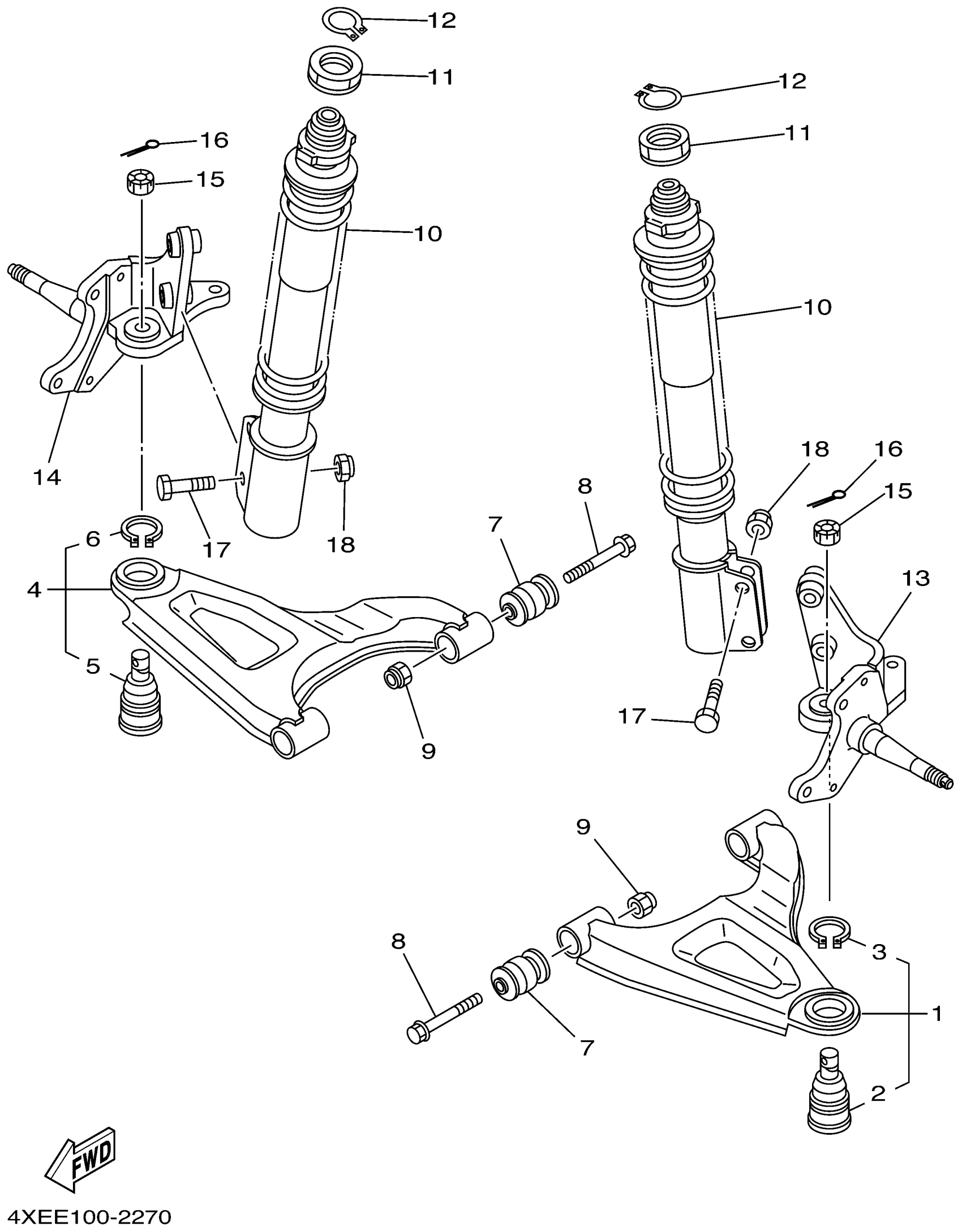

Yamaha YFM250XLC (BEAR TRACKER 2WD) 4XE3 1999 FRONT SUSPENSION WHEEL Diagram
#
Description
Price
1
FRONT LOWER ARM COMP. (LEFT)
4XE-F3570-10-00
Unavailable
2
BALL JOINT 1
1P0-23549-00-00
Unavailable
4
FRONT LOWER ARM COMP. (RIGHT)
4XE-F3580-10-00
Unavailable
5
BALL JOINT 1
1P0-23549-00-00
Unavailable
10
SHOCK ABSORBER ASSY (FRONT)
4XE-F3350-10-00
Unavailable
11
NUT
90179-35002-00
Unavailable
13
STEERING, KNUCKLE ASSEMBLY (LEFT)
4XE-F3501-00-00
Unavailable
14
STEERING, KNUCKLE ASSEMBLY (RIGHT)
4XE-F3502-00-00
Unavailable
16
PIN, COTTER
91490-25020-00
Unavailable
17
BOLT
90101-12811-00
Unavailable
18
NUT, U
95612-12100-00
Unavailable
