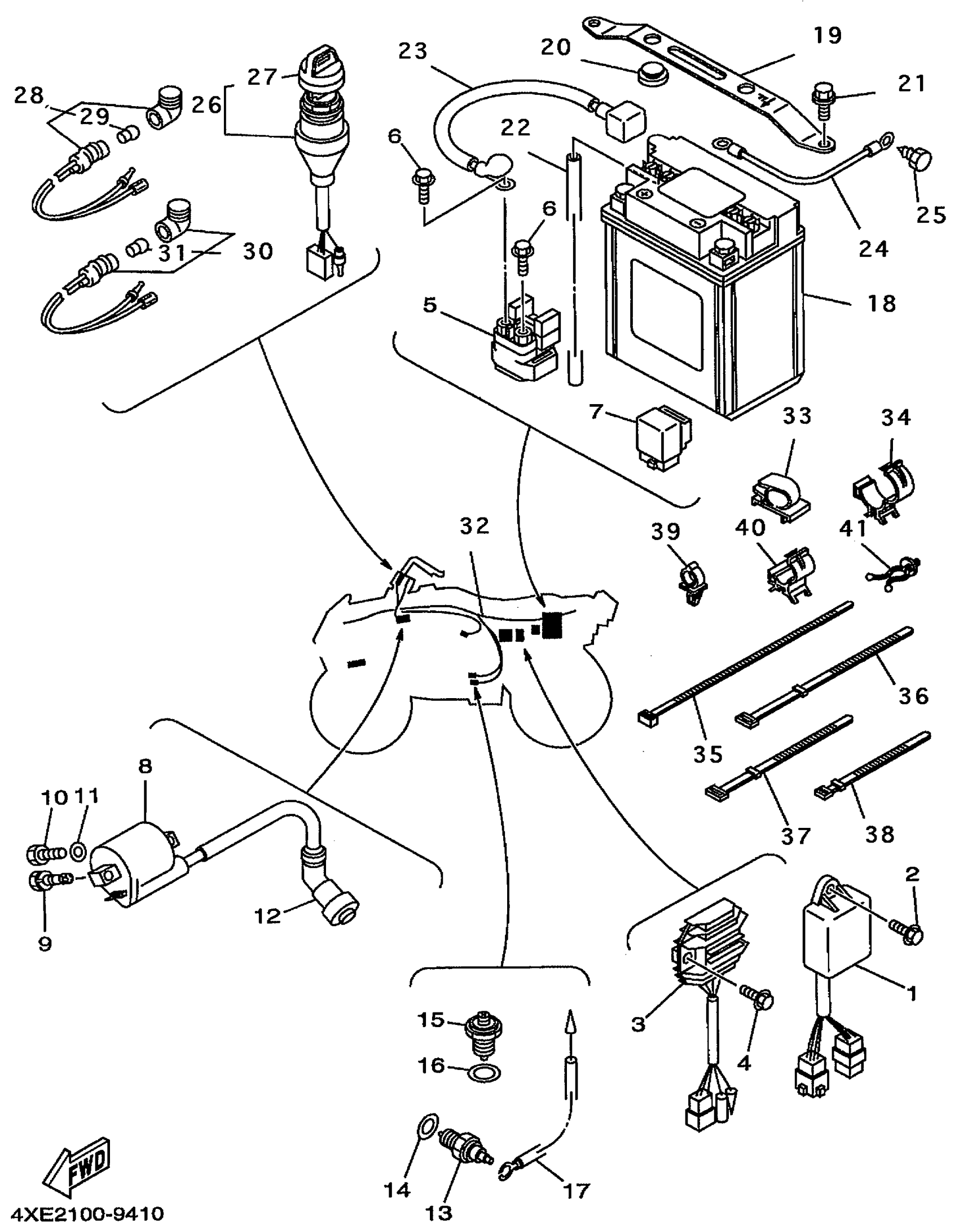

Yamaha YFM250XLC (BEAR TRACKER 2WD) 4XE3 1999 ELECTRICAL 1 Diagram
#
1
C.D.I. UNIT ASSY
4BD-85540-10-00
Unavailable
9
BOLT
90109-06865-00
Unavailable
16
WASHER, PLATE
90201-12790-00
Unavailable
17
WIRE, LEAD
4BD-82507-00-00
Unavailable
18
BATTERY ASSEMBLY (YB 14A-A2)
24W-82110-09-00-00
Unavailable
19
BRACKET, BATTERY
4XE-H2128-00-00
Unavailable
20
STOPPER, MAIN STAND
128-27114-00-00
Unavailable
22
PIPE, BREATHER
4XE-H2112-00-00
Unavailable
23
WIRE, PLUS LEAD
4XE-82115-00-00
Unavailable
24
WIRE, MINUS LEAD
29U-82116-00-00
Unavailable
25
SCREW, TAPPING
97702-60416-00
Unavailable
26
MAIN SWITCH ASSY
4GB-82510-12-00
Unavailable
27
CAP, KEY
3HN-82579-00-00
Unavailable
28
PILOT LIGHT ASSY
24W-83530-10-00
Unavailable
29
BULB (12V-3.4W)
123-83516-21-00
Unavailable
30
PILOT LIGHT ASSY
52G-83530-10-00
Unavailable
31
BULB (12V-3.4W)
123-83516-21-00
Unavailable
32
WIRE HARNESS ASSY (EUR)
4XE-82590-10-00
Unavailable
33
CLAMP
90464-13831-00
Unavailable
34
CLAMP
90464-20835-00
Unavailable
35
BAND, SWITCH CORD
437-83936-11-00
Unavailable
36
CLAMP
90464-48800-00
Unavailable
37
BAND, SWITCH CORD
437-83936-11-00
Unavailable
38
BAND, SWITCH CORD
437-83936-01-00
Unavailable
39
CLAMP
90464-12830-00
Unavailable
40
CLAMP
90464-08834-00
Unavailable
41
CLAMP
90464-12815-00
Unavailable
42
KEY, BLANK (A-TYPE)
90890-56001-00
Unavailable
43
KEY, BLANK (B-TYPE)
90890-56002-00
Unavailable
