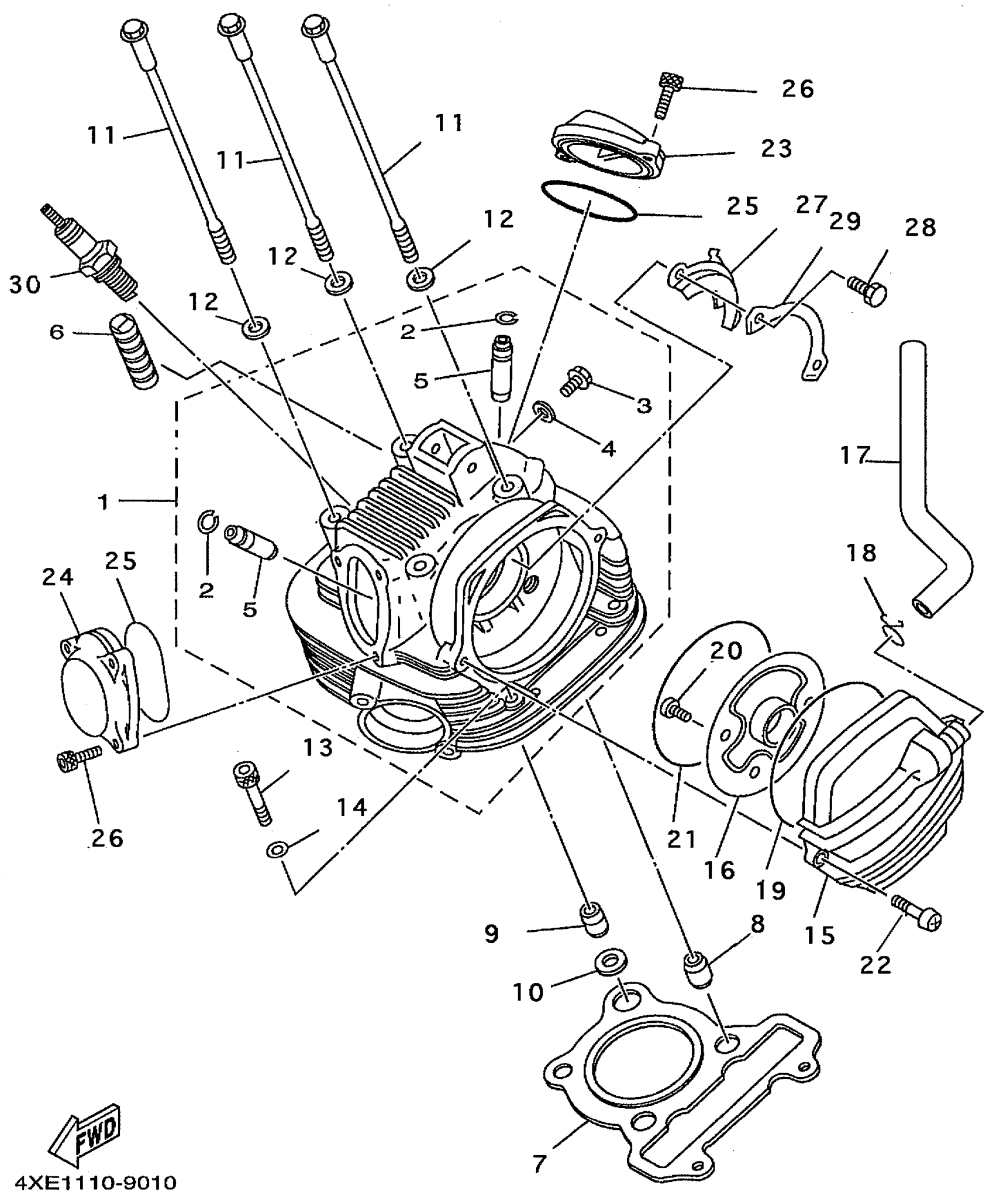

Yamaha YFM250XLC (BEAR TRACKER 2WD) 4XE3 1999 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

4BD-11101-03-00

Unavailable

2

CIRCLIP (4G0)

93440-10085-00

$8.49

3

SCREW

90153-06029-00

$10.49

4

GASKET 256113960000

90430-06014-00

Unavailable

5

GUIDE, INTAKE VALVE

5H0-11133-11-00

$63.99

6

ABSORBER 2

15A-11162-00-00

$20.99

7

GASKET, CYLINDER HEAD 1

3GH-11181-00-00

$55.99

8

PIN, DOWEL

99530-14016-00

$3.80

9

PIN, DOWEL(4XL)

93612-16254-00

$5.60

10

GASKET (29U)

90430-12186-00

$14.99

11

BOLT, FLANGE

90105-08160-00

$7.49

12

WASHER, PLATE

90201-080L7-00

$4.82

13

BOLT, SOCKET

91317-08045-00

Unavailable

14

WASHER, PLATE(3LN)

90201-086M0-00

$8.49

15

BREATHER ASSY

4BD-11160-01-00

Unavailable

16

PLATE, BREATHER

4KB-11165-00-00

Unavailable

17

PIPE, BREATHER 1

4XE-11166-00-00

Unavailable

18

CLIP (371)

90467-14015-00

Unavailable

19

O-RING (4X7)

93210-92448-00

Unavailable

20

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

21

O-RING (5H0)

93211-05471-00

Unavailable

22

SCREW, PAN

98517-06020-00

Unavailable

23

COVER, CYLINDER HEAD SIDE 2

3GC-11186-00-00

Unavailable

24

COVER, CYLINDER HEAD SIDE 3

3GC-11187-00-00

Unavailable

25

O-RING

93210-57634-00

Unavailable

26

BOLT,SOCKET

91317-06018-00

Unavailable

27

PLATE

5H0-1111F-00-00

Unavailable

28

BOLT, HEXAGON

97017-06012-00

Unavailable

29

WASHER, LOCK (5H0)

90215-06184-00

Unavailable

30

DR7EA NGK SPLUG 10PK

DR7-EA000-00-00

Unavailable
