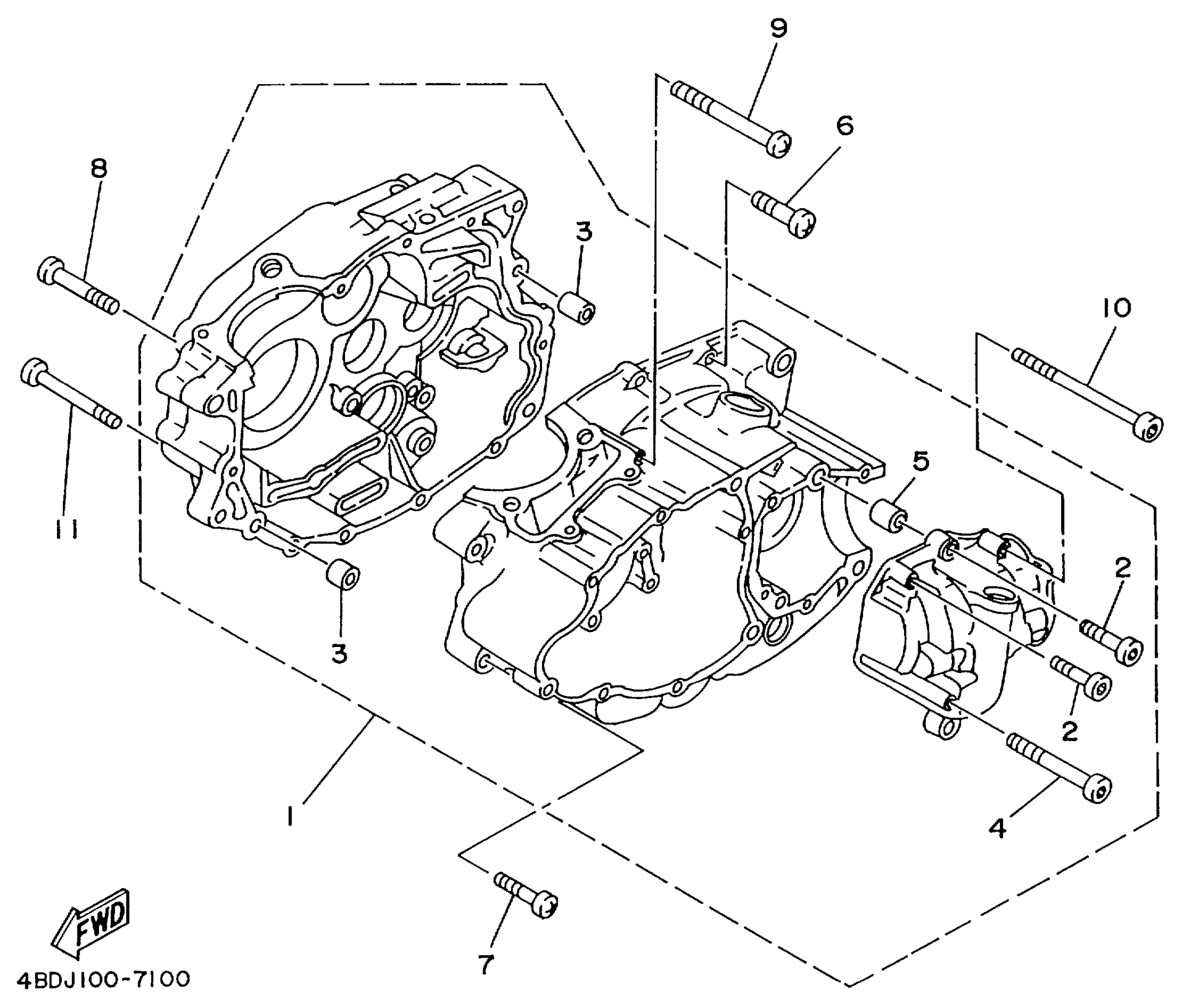

Yamaha YFM250XLC (BEAR TRACKER 2WD) 4XE3 1999 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

4BD-15100-12-00

Unavailable

2

BOLT,SOCKET

91317-06035-00

$3.33

3

PIN, DOWEL(3VD)

99530-10114-00

$2.14

4

BOLT, SOCKET

91317-06085-00

Unavailable

5

PIN, DOWEL

99530-12016-00

$4.12

6

SCREW, PAN

98517-06030-00

$3.38

7

SCREW, PAN

98507-06040-00

$2.25

8

SCREW, PAN

98507-06060-00

$5.60

9

SCREW, PAN

98507-06085-00

$5.17

10

BOLT

91317-06160-00

Unavailable

11

SCREW, PAN

98507-06075-00

$5.60
