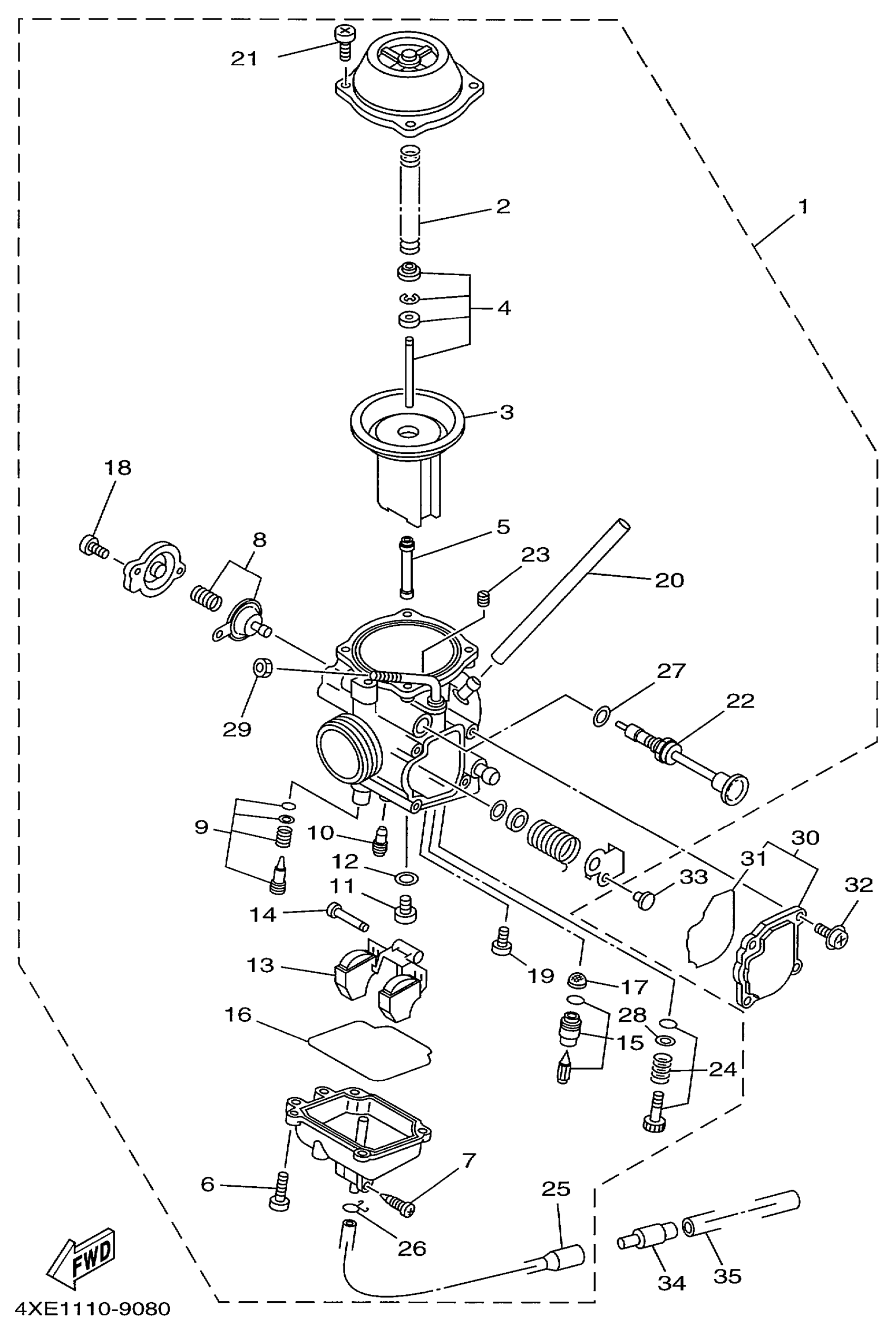

Yamaha YFM250XLC (BEAR TRACKER 2WD) 4XE3 1999 CARBURETOR Diagram

#

Description
Price

1

CARB. SUB ASSY

4XE-14140-01-00

Unavailable

1

CARB. SUB ASSY

4XE-14140-11-00

Unavailable

2

SPRING, DIAPHRAGM

4XE-14933-00-00

Unavailable

3

DIAPHRAGM ASSY

4WU-14940-00-00

$269.99

4

NEEDLE SET

4XE-1490J-00-00

$29.99

4

. NEEDLE SET

4XE-1490J-10-00

Unavailable

5

NOZZLE, MAIN

4WU-14141-42-00

$49.99

6

SCREW, PAN HEAD

98517-04012-00

$3.88

7

PLUG, DRAIN

12R-14191-00-00

$16.49

8

DIAPHRAGM SET, 5

26H-1490H-00-00

$81.99

9

PILOT SCREW SET

4RF-14105-00-00

$33.99

10

JET, PILOT (# 42.5)

4G0-14142-42-A0

$14.49

11

JET, MAIN (# 95)

620-14231-19-00

$11.99

12

WASHER,MAIN JET

137-14153-00-00

$7.99

13

FLOAT

2VA-14185-00-00

$97.99

14

PIN, FLOAT

537-14186-00-00

Unavailable

15

NEEDLE VALVE SET

1UY-14107-20-00

Unavailable

16

O-RING

2LN-14147-00-00

Unavailable

17

NET, FILTER

1J7-14994-00-00

Unavailable

18

SCREW, PAN HEAD

98517-04012-00

$3.88

19

SCREW

2LN-14565-00-00

Unavailable

20

HOSE (L340)

90445-08684-00

Unavailable

21

SCREW, PAN HEAD(JG1)

98507-04008-00

Unavailable

22

PLUNGER, STARTER

4KB-14993-00-00

Unavailable

23

PILOT JET, AIR (1.6)

2A2-14172-16-00

Unavailable

24

THROTTLE SCREW SET

2VA-14103-00-00

Unavailable

25

PIPE

4KB-14193-20-00

Unavailable

26

CLIP

14X-14937-00-00

Unavailable

27

. WASHER

4KB-14285-00-00

Unavailable

28

WASHER

22U-14952-00-00

Unavailable

29

NUT, CABLE ADJUSTING

522-14161-00-00

Unavailable

30

COVER SUB ASSY

4XE-14480-00-00

Unavailable

31

O-RING

4KB-14147-00-00

Unavailable

32

SCREW, PAN HEAD

98517-04012-00

$3.88

33

GUIDE, CABLE

1UY-14155-00-00

Unavailable

34

PIPE 2,OVERFLOW

24W-14193-00-00

Unavailable

35

TUBE, FLEXIBLE(3NV)

91A21-07020-00

Unavailable
