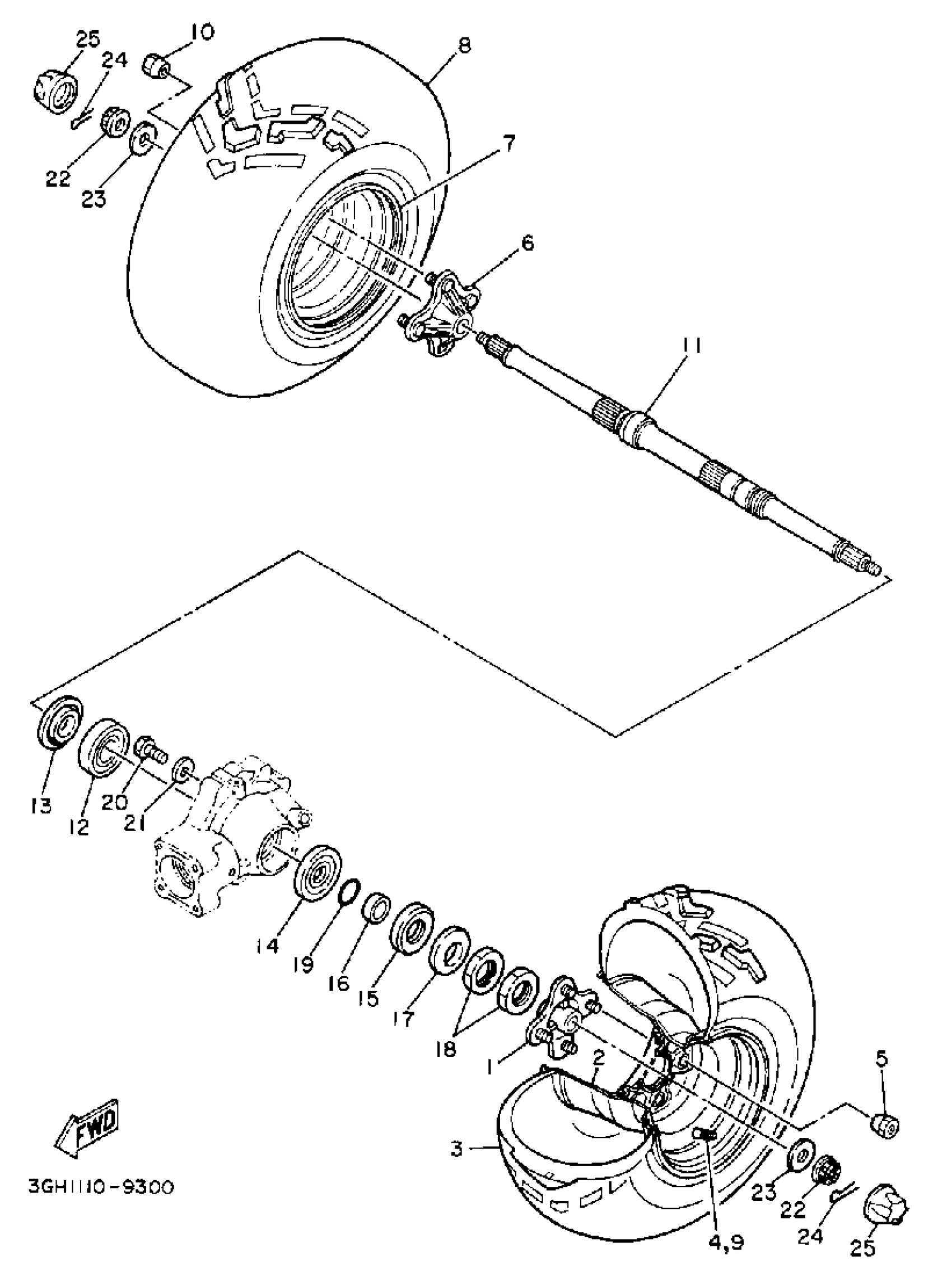

Yamaha YFM250W (MOTO-4) 1989 REAR WHEEL Diagram
#
Description
Price
2
WHEEL, REAR
3GH-25390-00-35
Unavailable
3
DUN 25X12-9 KT725M
94112-091R2-00
Unavailable
3
CS AT25X12-9 C866
94112-092R9-00
Unavailable
7
WHEEL, REAR
3GH-25390-00-35
Unavailable
8
DUN 25X12-9 KT725M
94112-091R2-00
Unavailable
8
CS AT25X12-9 C866
94112-092R9-00
Unavailable
11
AXLE, WHEEL
3GH-25381-00-00
Unavailable
12
BEARING (24W)
93399-99913-00
Unavailable
13
COVER, HUB DUST
2HR-25367-00-00
Unavailable
14
BEARING
93306-00809-00
Unavailable
15
OIL SEAL(1YW)
93102-46377-00
Unavailable
16
COLLAR, AXLE
24W-25386-00-00
Unavailable
17
COVER, HUB DUST
1YW-25367-00-00
Unavailable
18
NUT
90170-40387-00
Unavailable
19
O-RING
93210-40740-00
Unavailable
20
BOLT(6TD)
97017-10025-00
Unavailable
21
WASHER (7A9)
90201-100F7-00
Unavailable
22
NUT, CASTLE
90171-16001-00
Unavailable
23
WASHER, PLATE(2HR)
90201-162L6-00
Unavailable
24
PIN, COTTER
91490-30030-00
Unavailable
25
CAP, WHEEL
52H-2512A-00-00
Unavailable
