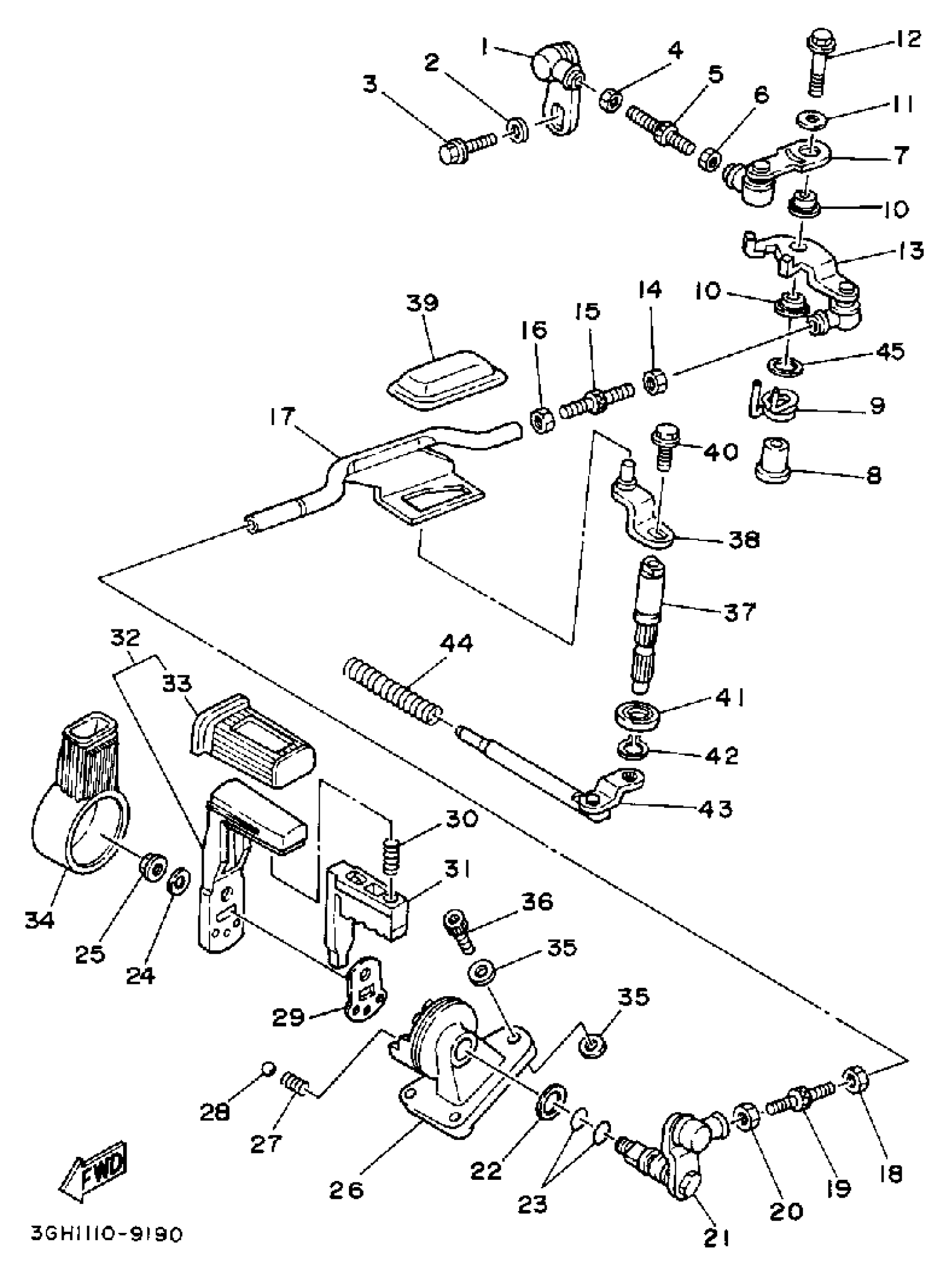

Yamaha YFM250W (MOTO-4) 1989 DRIVE SELECTOR Diagram
#
1
LEVER, SHIFT 1
3GH-18121-00-00
Unavailable
5
ROD, SHIFT
16G-18115-00-00
Unavailable
7
LEVER, SHIFT 2
3GH-18122-00-00
Unavailable
8
COLLAR
90387-065V6-00
Unavailable
9
SPRING, TORSION
90508-35781-00
Unavailable
10
COLLAR, SHIFTER
3GH-18413-00-00
Unavailable
11
WASHER, SEAL (3GH)
90210-06015-00
Unavailable
13
LEVER, SHIFT 3
3GH-18151-00-00
Unavailable
15
ROD, SHIFT
16G-18115-00-00
Unavailable
17
JOINT, ROD 2
3GH-18117-01-00
Unavailable
19
ROD, SHIFT
16G-18115-00-00
Unavailable
21
SHAFT, RINK
3GH-18341-00-00
Unavailable
22
WASHER, PLATE(52G)
90201-144J2-00
Unavailable
23
O-RING (611)
93210-10096-00
Unavailable
25
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
26
GUIDE, SHIFT RETURN SPRING
59V-18153-01-00
Unavailable
27
SPRING, COMPRESSION(52G)
90501-103A1-00
Unavailable
28
BALL
93501-04011-00
Unavailable
29
PLATE, SIDE 1
3GH-18561-00-00
Unavailable
30
SPRING, COMPRESSION(52G)
90501-101A7-00
Unavailable
31
KNOB, SHIFT LEVER
59V-18174-00-00
Unavailable
32
LEVER, SHIFT 3
3GH-18150-00-00
Unavailable
33
COVER, SHIFT PEDAL
52G-18113-00-00
Unavailable
34
COVER, SHIFT SPRING
59V-18433-00-00
Unavailable
35
WASHER, PLATE(4BD)
90201-067P3-00
Unavailable
36
BOLT,SOCKET
91317-06025-00
Unavailable
37
SHAFT
3GC-18197-00-00
Unavailable
38
LEVER
3JN-18198-00-00
Unavailable
39
COVER, DUST
3GH-18154-00-00
Unavailable
41
OIL SEAL (3Y1)
93102-14209-00
Unavailable
42
CIRCLIP(13H)
99009-14400-00
Unavailable
43
STOPPER SHAFT ASSEMBLY
3GH-1812A-00-00
Unavailable
44
SPRING, COMPRESSION
90501-151A4-00
Unavailable
45
WASHER, PLATE (55X)
90201-132G6-00
Unavailable
