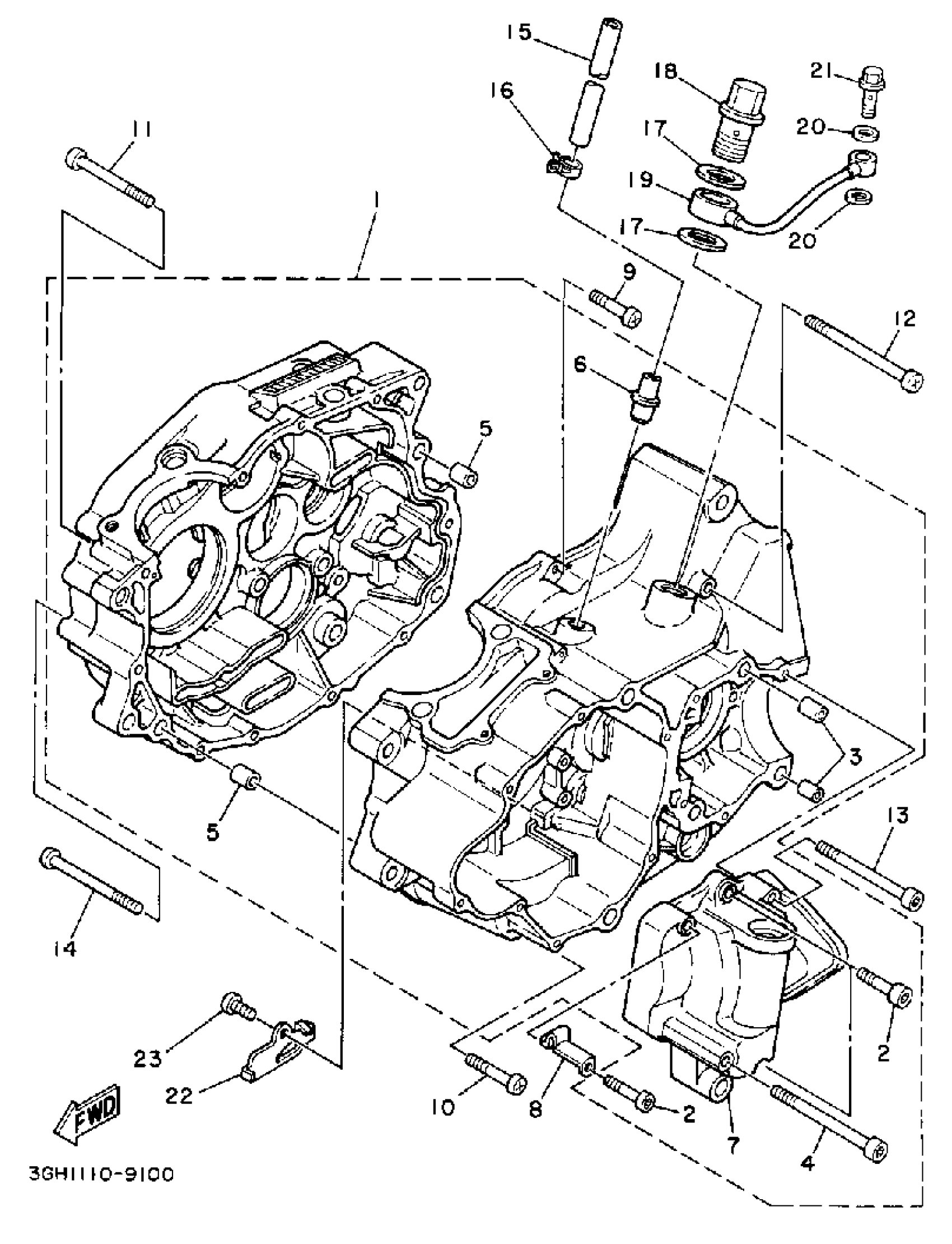

Yamaha YFM250W (MOTO-4) 1989 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

3GH-15100-00-00

Unavailable

2

BOLT,SOCKET

91317-06035-00

Unavailable

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

BOLT, SOCKET

91317-06085-00

Unavailable

5

PIN, DOWEL

99530-12016-00

$4.89

6

PIPE, BREATHER 2

59V-11167-00-00

Unavailable

7

. COVER, GENERATOR

3GH-15415-09-00

Unavailable

8

CLAMP

90465-06247-00

Unavailable

9

SCREW PAN HEAD

98580-06040-00

$8.49

10

SCREW PAN HEAD

98580-06040-00

$8.49

11

SCREW, BIND (JH1)

98580-06560-00

Unavailable

12

SCREW, PAN

98504-06090-00

$4.14

13

BOLT

91317-06160-00

Unavailable

14

SCREW PAN HEAD

98580-06575-00

$12.49

15

HOSE

90445-121E3-00

Unavailable

16

CLIP(3YX)

90467-13133-00

Unavailable

17

GASKET

90430-20145-00

Unavailable

18

BOLT, UNION

90401-20134-00

Unavailable

19

PIPE, DELIVERY 1

3GH-13161-00-00

Unavailable

20

WASHER, PLATE 3411117500

90201-08087-00

Unavailable

21

BOLT, UNION

90401-08004-00

Unavailable

22

PLATE

3GH-15113-00-00

Unavailable

23

SCREW, PAN

98507-06014-00

Unavailable
